Withdrawable Low Voltage switchgear panels with drawer module

Product Details:
Place of Origin: China
Brand Name: HENGFENGYOU
Certification: ISO IEC CB COC KEMA SNI SABS CCC
Model Number: MNS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200-20000/piece
Packaging Details: wood pack
Delivery Time: 30 days
Payment Terms: LC T/T
Supply Ability: 5000 piece/year
Contact Now

Detail Information

High Light:

low tension switchgear

,

low voltage metal clad switchgear

Product Description

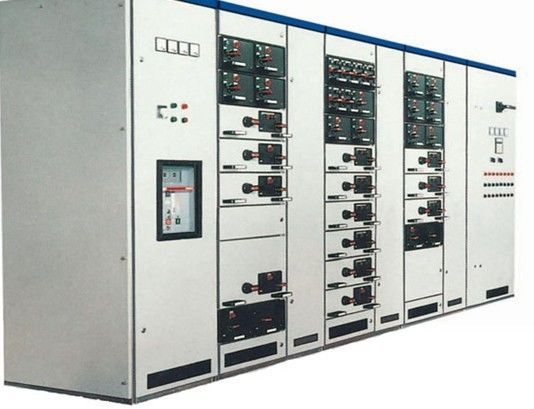

                                 Withdrawable Low Voltage switchgear panels with drawer module 0



General info



This series of low-voltage withdrawable switchgear is suitable for power plants, substations,petrochemicals, metallurgical rolling steel, transportation energy, Light industrial textiles and other factories and mines, residential quarters, high-rise buildings and other places, for the

exchange, distribution and control of power distribution equipment of 50-60Hz, rated working voltage AC 660V and below.





Features and Benefits



1)main function:

1:power distribution control cabinet for power generation and supply system
2:centralized control of motor
3:reactive power compensation at same time


2) cabinet characteristic

It is top world level technique ,high intelligent assemble way, easy operation and maintenance

1:all component are standard type, conveninet for project planning
2:drawer can be built up into different modes freely
3:The frame of the cabinet selects tee bend connection of 25mm modulus special C section bar, which is assembled by locking screws and high strength screws.
4:The cabinet body is made of cold rolled steel or imported A-zinc alloy plates
5:the equipment is with function :Anti electric arc ,earthquick resistance, oscillation reistance, shock reistance
6:The cabinet body is free of maintenance to most extent



3)drawer function:

1:each drawer is independent, and seperated entirely, and each one can exchange internally
2:the drawer is contained of several engine function parts, it has place with CONNECTION/ TEST/ SEPERATE/ MOVE OUT ., and can locked seperately. the display/ control/ human-machine face to face panel are centralized in front board
3:through hand shank and interlock, can accurately fix postion in CONNECTION/ TEST/ SEPERATE/ MOVE OUT . each position will show directly on front panel.



The ambient air temperature is not higher than +40 ° C, not lower than -5 ° C, and its average temperature is not higher than +35 ° C within 24 h. Atmospheric conditions: The air is clean, the relative humidity is not more than 50% at a maximum temperature of 40 ° C, and a higher

relative humidity is allowed at a lower temperature, for example, 90% at 20 ° C. However, due to temperature changes, condensation may occur by chance. Altitude does not exceed 2000M The device is suitable for transport and storage at temperatures between -25 ° C and +55 ° C, up to +70 ° C in a short time (not exceeding 24 h), at which the device should not be subjected to any Unrecoverable damage and should work properly under normal conditions. If the above conditions of use are not met, it should be resolved by the user and the manufacturer. When the device is used in oil drilling platforms and nuclear power plants, a technical agreement shall be signed separately



Drawing

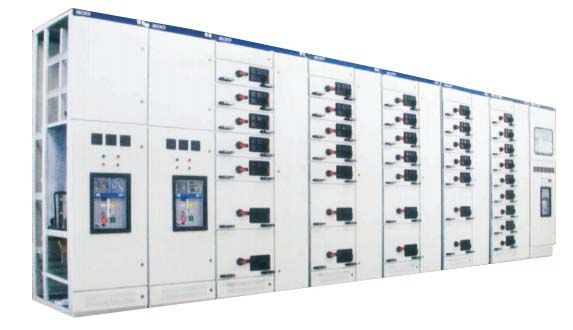

Withdrawable Low Voltage switchgear panels with drawer module 1







Structural Characteristics:


1. Compact design:
2. High commonality of the structure and flexibility of assembling. The cubicle body is made up of C-type material with modulus 25mm, it meets the requirements of different structural types, protection categories and operation environment.
3. Modular design: different modular units form standard units of protection, operation, transformation, control, regulation, measurement or indication. Users can freely choose them to assemble what they want. More than 200 assembly components can form different projects of frame configurations and drawer units.
4. Safety: using lots of plastic components of high strength preventing-burning to increase safety.
5. High technology: main parameters reach international technology level.
6. Smaller space: Higher level of miniaturization, smaller space to store and transport pre-manufactured components.
7. Easy to be assembled, no need of special complicated tools.





Details

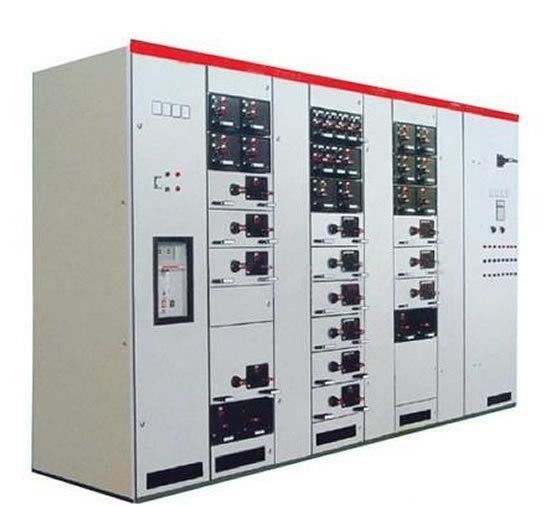

Withdrawable Low Voltage switchgear panels with drawer module 2





Service conditions

Suitable Altitude: 1000m ~ 4000m
Suitable Temperature: -40℃ ~ +45℃
Relative Humidity: Daily mean ≤95%, monthly mean ≤90%
Gradation of Earthquake Damage: ≤ Level 8





ATTENTION:


1.The payment term: We accept TT,30% deposit and 70% balance against copy of BL.
2.The delivery time: Usually it will take about 15-20 days.
3.The standard of package: Usually use strong plywood case for protection.
4.The logo: If you have good quantity, it absolute no problem to do OEM.
5.Our market: our products are popular in Indonesia, Philippines, Russia, USA, Middle East and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation..
6.Warranty: in 12 month since BL date.





 order instruction:

1. Schematic diagram of main circuit or electrical schematic diagram

2. Arrangement and layout

3. Model, specification and quantity of main components.

4. Incoming and outgoing wire method and cable specification, etc

5. If bus connection is required between the devices, bus connection and height from the ground shall be provided.

6. Other ordering requirements





Withdrawable Low Voltage switchgear panels with drawer module 3
