MNS electrical power distribution cabinet low voltage switchgear movale drawer type switchgear with panel

Product Details:
Place of Origin: China
Model Number: GCK,MNS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200-20000/piece
Packaging Details: wooden case
Delivery Time: 30 days
Payment Terms: LC T/T
Supply Ability: 5000 piece/year
Contact Now

Detail Information

Model Number: GCK,MNS Type: Metal Clad
Rated Frequency: AC 50Hz (60Hz) Rated Current(A): 630, 1250, 1600, 2500, 3510, 4000
Application: Power Transmission Or Distribution Product Name: Electrical Kyn28 12 Switchgear 11kv
Rated Voltage: 3KV, 7.2KV, 12KV Optional
High Light:

low tension switchgear


low voltage metal clad switchgear

Product Description

MNS electrical power distribution cabinet low voltage switchgear movale drawer type switchgear with panel

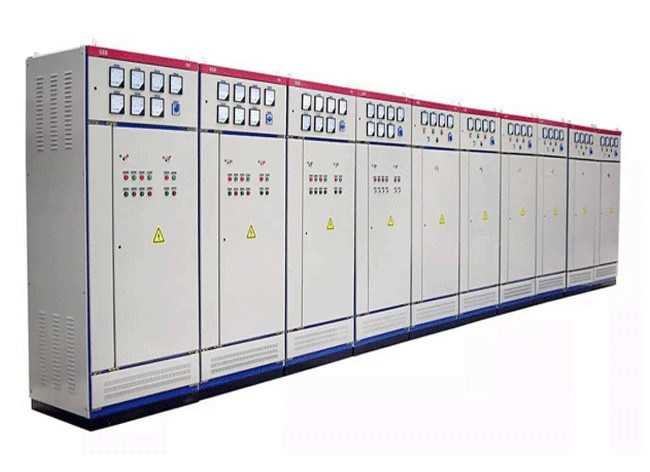

MNS electrical power distribution cabinet low voltage switchgear movale drawer type switchgear with panel 0

Product description

MNS Drawout Low-Voltage Switchgear is assembled with modularized components as combination unit (hereinafter called the device). It is applied to AC 50-60Hz @ rated operating voltage of 660V or below for power receiving and distribution of low voltage distribution system and for power switching, distribution and control of power distribution and motor control center as well as capacitance compensation. The switchgear cabinet complies with GB7251.12-2013.


Structural features:

1). Adopting panel-division design, flexible equipment of charging cabinet and distribution cabinet, easy to charge;


2). Adopting intelligent high-frequency switch charging module, advanced technique and high reliability;


3). Providing dual-circuits alternating-current input interface, capable of accomplishing dual-circuits alternating-current input main and standby automatic switching and locking;


4). High charging efficiency, small volume, steady product quality, excellent performance;


5). The charger adopting intelligent module design, easy to connect with automation system; has function of self-protection;


6). The module equipped with alternating current under-voltage protection and AC phase-lack protection to realize alternating-current side protection; the module can recover normal working state when input is normal; besides, the module is equipped with lightning protection to realize slow starting function and slow function;


7). Over-voltage protection: the module inputting voltage, capable of automatically turning off machine, to realize load-side protection; the over-voltage protective point of 220V module is 320V±5%, while 110V module is 160V±5%;


8). Short-circuit protection : when short-circuit fault occurs in module input, the output voltage of module fall to 0V and input current lower 15% than rated current; when fault is solved, the module can work again;


9). Over-temperature protection: when radiator temperature detected by module exceeds to 85°C, the system automatically turn off machine; and when the temperature recover to normal scope, the module can work again;10). module connection in parallel protection: the module is equipped with circuit in parallel inside; it can automatically log out system when fault occurs, and has no effect on other modules.


Conditions of use

1. For indoor use, the elevation of the service point shall not exceed 2000m.

2, the ambient air temperature is not higher than +40 degrees, not lower than negative 5 degrees.The average temperature should not be higher than +35 degrees within 24 hours.When exceeding, the capacity should be reduced according to the actual situation.

3. The relative high temperature of the surrounding air is +40 ° c and does not exceed 50%, and a large relative temperature is allowed at a lower temperature;If +20 degrees is 90%, consideration should be given to the effect of occasional condensation caused by temperature changes.

4. When the device is installed, the tilt with the vertical plane shall not exceed 5°, and the whole set of cabinets shall be relatively flat in line with the standard of gbj232-2.

5. The device shall be installed in a place where there is no severe vibration and impact and no corrosion of electrical components is sufficient to use

MNS electrical power distribution cabinet low voltage switchgear movale drawer type switchgear with panel 1

4. Electrical panels Basic Parameters
Item Unit Parameter
Rated operating voltage V AC380,660
Rated insulation volatge V AC660,1000
Horizontal busbar current rating A 1250 2000 2500 3200
Vertical busbar current rating A 1000
Max. feeder circuit current A 2500
Max. drawer circuit current A 630
Max. control motor capacity kW 320
Rated frequency Hz 50/60
Horizontal busbar peak withsatnd current kA/0.1s 105,176
Horizontal busbar short-time withstand current kA/1s 50,80
Vertical busbar peak withstand current kA/0.1s 105
Vertical busbar short-time withstand current kA/1S 50
Rated power freq. withstand voltage V/1min. 2500
Secondary power freq. withstand voltage V/1min. 2500
Enclosure protection degree   IP30,IP40


5.  Order information

Schematic diagram of main circuit or electrical schematic diagram
Arrangement and layout
Model, specification and quantity of main components.
Incoming and outgoing wire method and cable specification, etc
If bus connection is required between the devices, bus connection and height from the ground shall be provided.


Working Environment

1. Indoor altitude above sea level: Maximum installation altitude: 2000m

2. Ambient air temperature: -5℃~+40℃ and the average temperature should not

exceed +35℃ in 24h

3. Relative humidity should not exceed 50% at max temperature +40℃. Higher

relative humidity is allowed at lower temperature. Ex. 90% at +20℃. But in view of

the temperature change, it is possible that moderate dews will produce casually.

4. No fire, explosion danger, serious pollution, chemical corrosion and severe vibration

5. Installation gradient not exceed 5°

6. This product is suitable for the following temperature transportation storage: -25 ~+55 24h, in a short period of time (no more than 24hours) not more than+70℃.


This series of products with high breaking capacity, good dynamic stability, advanced and reasonable structure, electrical program of practical, series, strong versatility, various schemes of unit combination, a cabinet contained many circuits, save the area , beautiful appearance, high level protection, safe and reliable, convenient maintenance etc.

It accords with the standards IEC439 NEMA ICS2-322 as well as the GB7251-87 “Low voltage complete switch device ” national standards and ZBK36001-89 "low voltage withdraw type complete switch device” professional standards"


MNS electrical power distribution cabinet low voltage switchgear movale drawer type switchgear with panel 2
