MNS Series Low Voltage Withdrawable Switchgear

Product Details:
Place of Origin: China
Model Number: MNS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200-20000/piece
Packaging Details: wood pack
Delivery Time: 30 days
Payment Terms: LC T/T
Supply Ability: 5000 piece/year
Contact Now

Detail Information

High Light:

low tension switchgear


low voltage metal clad switchgear

Product Description

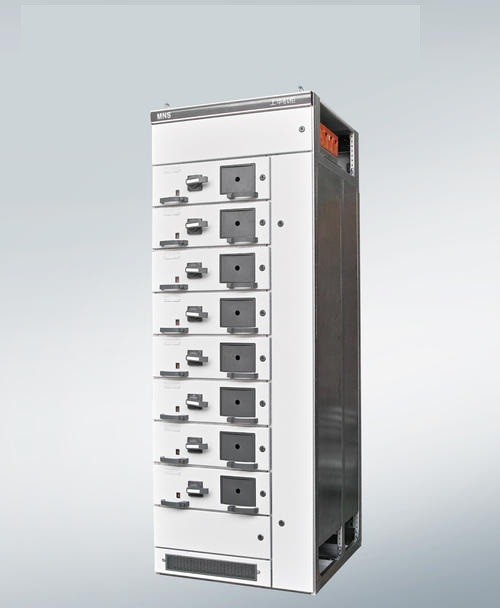

                                 MNS Series Low Voltage Withdrawable Switchgear 0


General info


MNS low voltage withdrawable switchgear is assembled low voltage switchgear equipment and meets technical standards IEC439,GB7251, JB/T9661, UTE63-410 and so on.MNS series low voltage switchgear include fixed type and withdrawable type technology, withdrawable type technology can be divided into steel plate structure and plastic structure technology.

MNS series adapt to various power supply and distribution needs and can be widely used in power plant, nuclear power station, marine, petroleum, mine , well as distribution systems of various industrial and mining enterprises.

MNS series product has many obvious characteristics and advantages, such as compact design, the structure with strong commonality, use standardized modular design and technological superiority.


Features and Benefits


1)main function:

1:power distribution control cabinet for power generation and supply system
2:centralized control of motor
3:reactive power compensation at same time

2) cabinet characteristic

It is top world level technique ,high intelligent assemble way, easy operation and maintenance

1:all component are standard type, conveninet for project planning
2:drawer can be built up into different modes freely
3:The frame of the cabinet selects tee bend connection of 25mm modulus special C section bar, which is assembled by locking screws and high strength screws.
4:The cabinet body is made of cold rolled steel or imported A-zinc alloy plates
5:the equipment is with function :Anti electric arc ,earthquick resistance, oscillation reistance, shock reistance
6:The cabinet body is free of maintenance to most extent


3)drawer function:

1:each drawer is independent, and seperated entirely, and each one can exchange internally
2:the drawer is contained of several engine function parts, it has place with CONNECTION/ TEST/ SEPERATE/ MOVE OUT ., and can locked seperately. the display/ control/ human-machine face to face panel are centralized in front board
3:through hand shank and interlock, can accurately fix postion in CONNECTION/ TEST/ SEPERATE/ MOVE OUT . each position will show directly on front panel.




MNS Series Low Voltage Withdrawable Switchgear 1




Structural Characteristics:

1. Compact design:
2. High commonality of the structure and flexibility of assembling. The cubicle body is made up of C-type material with modulus 25mm, it meets the requirements of different structural types, protection categories and operation environment.
3. Modular design: different modular units form standard units of protection, operation, transformation, control, regulation, measurement or indication. Users can freely choose them to assemble what they want. More than 200 assembly components can form different projects of frame configurations and drawer units.
4. Safety: using lots of plastic components of high strength preventing-burning to increase safety.
5. High technology: main parameters reach international technology level.
6. Smaller space: Higher level of miniaturization, smaller space to store and transport pre-manufactured components.
7. Easy to be assembled, no need of special complicated tools.





MNS Series Low Voltage Withdrawable Switchgear 2



Service conditions

Suitable Altitude: 1000m ~ 4000m
Suitable Temperature: -40℃ ~ +45℃
Relative Humidity: Daily mean ≤95%, monthly mean ≤90%
Gradation of Earthquake Damage: ≤ Level 8



 order instruction:

1. Schematic diagram of main circuit or electrical schematic diagram

2. Arrangement and layout

3. Model, specification and quantity of main components.

4. Incoming and outgoing wire method and cable specification, etc

5. If bus connection is required between the devices, bus connection and height from the ground shall be provided.

6. Other ordering requirements



MNS Series Low Voltage Withdrawable Switchgear 3
