Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HENGFENGYOU |
| Certification: | ISO IEC CB COC KEMA SNI SABS CCC |
| Model Number: | GGD, GCS |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 |
| Price: | 200-20000/piece |
| Packaging Details: | wooden case |
| Delivery Time: | 30 days |
| Payment Terms: | LC T/T |
| Supply Ability: | 5000 piece/year |
|
Detail Information |
|||
| Model Number: | GGD. GCS | Type: | Metal Clad |
|---|---|---|---|
| Rated Frequency: | AC 50Hz (60Hz) | Rated Current(A): | 630, 1250, 1600, 2500, 3510, 4000 |
| Customized: | OEM/ODM Order Acceptable | Application: | Power Transmission Or Distribution |
| Product Name: | Electrical Kyn28 12 Switchgear 11kv | Rated Voltage: | 3KV, 7.2KV, 12KV Optional |
| Comply Standards: | DL/T404, IEC298,GB3906 | ||
| High Light: | low tension switchgear,low voltage metal clad switchgear |
||
Product Description

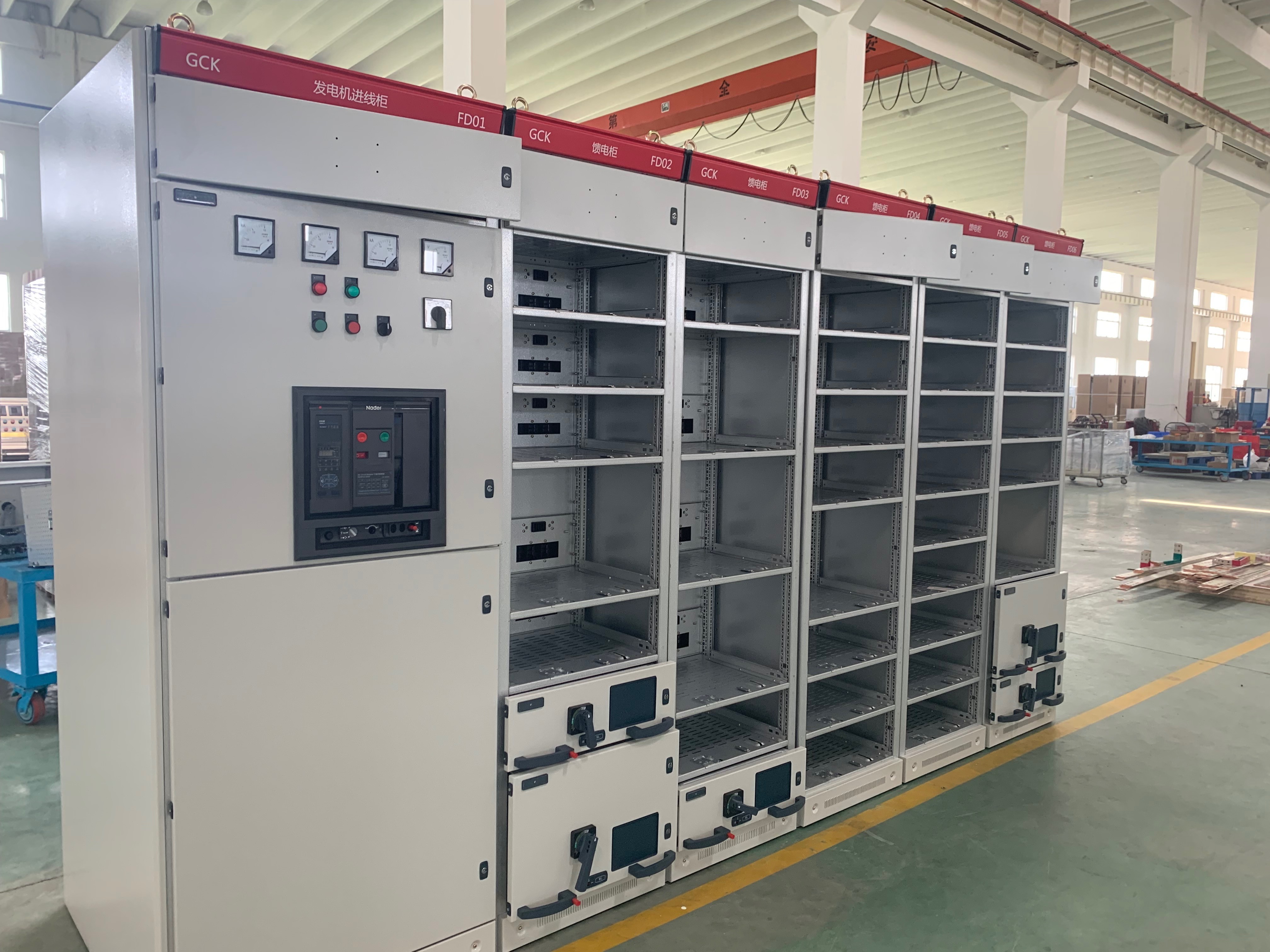

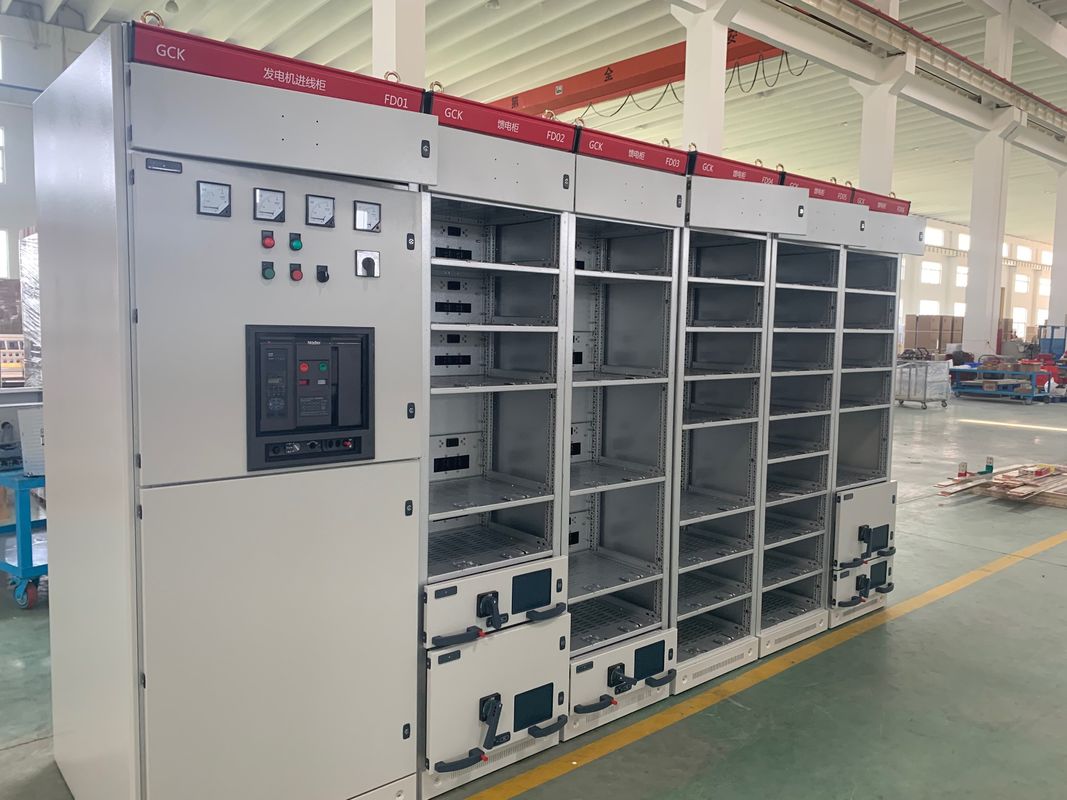

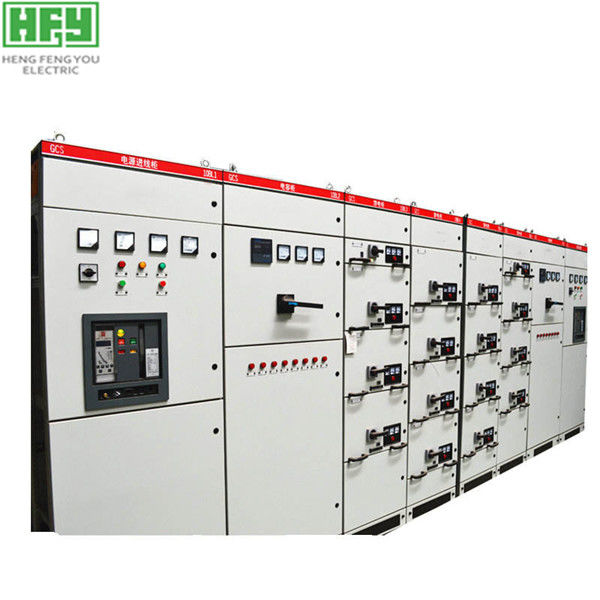

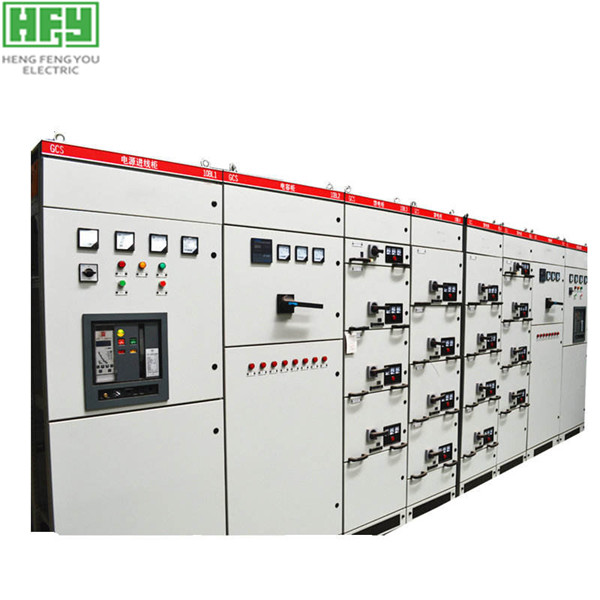

China Manufacturers Supply High Quality Outdoor Electric Power Distribution Box Low Voltage Switchgear
GCS type AC low-voltage distribution switchgear is used in power distribution system 50Hz, rated working voltage 380V and rated current up to 3150A as power conversion, distribution and control of power, lighting and distribution equipment, suitable for power users such as power plants, substations, industrial and mining enterprises.
GCS LV switchgear has high breaking capability, good dynamic thermal stability, flexible electrical scheme, flexible combination, complete series, strong practicability, novel structure and high protection degree. It is a good product for replacement and upgrading of complete LV switchgear assembly.
Features
GCS withdrawable switchgear is a low-voltage complete power distribution device ,suitable to AC 50-60Hz, rated
working voltage of 660V or below, rated current of 4000A and below, power distribution, motor centralized control,
power factor correction.
GCS withdrawable switchgear is used as a substation, feed or motor for low-voltage distribution systems of 3P-3W or
3P-4W. GCS withdrawable switchgear has increased its capacity and mechanical strength on the basis of maintaining higher electrical performance, and has characteristics of advanced structure, perfect appearance, high protection level, safety and reliability, and easy maintenance.
Working conditions
1. Altitude: ≤2000m
2. Ambient temperature:- 5 ℃~ + 40 ℃, average temperature in 24 hours: ≤+ 35 ℃;
3. Indoor relative humidity: ≤ 90% (when the temperature is 25 ℃);
4. Places without conductive dust or gas which can corrode metal and destroy insulation;.
5. Places without fire or explosion hazard;
6. Places without violent vibration or turbulence;
7. If application in special conditions, please contact the manufacturer to find a customized solution.
| Item | parameter | ||
| Rated insulation voltage | |||
| Rated working voltage | Primary loop | AC 660 (1000) V | |
| AC 380 (660) V | |||
| Auxiliary circuit | AC 380, 220, 24 V | ||
| DC 220, 110 V | |||
| Rated frequency | 50 (60) Hz | ||
| Rated current of horizontal bus | < 4000 A | ||
| Rated current of vertical bus | 1000 A | ||
| Rated peak tolerant current | 105 (176) KA | ||
| Rated short-term tolerant current (1s) | 50 (80) KA | ||
| Power frequency testing voltage | Main loop to the ground | 2500 V/min | |
| Auxiliary circuit to the ground | 2000 V/s | ||
| Protection grade | IP3x | ||
Note: Due to continuous product improvement, the dimensions provided in this sample are for reference only. If necessary, our company can design and produce according to user requirements. Please contact the company in time.
Company introduction
Qingdao HengFengYou Electrical Engineering Co. LTD., aka HFY Electrical Engineering, is a Chinese leading manufacturer and supplier in electricity transmission and distribution industry.
With 30 years of competition and development in China, by now HFY Electrical Engineering has 6 wholly-owned subsidiaries, 50 senior technicians, 350 employees, established sales network and customer service team. From research and development, manufacturing to the final project engineering, HFY provides better solution to clients than others.
Our main market covers medium voltage, high voltage and ultra-high voltage power distribution.
1. Indoor altitude above sea level: Maximum installation altitude: 2000m
2. Ambient air temperature: -5℃~+40℃ and the average temperature should not
exceed +35℃ in 24h
3. Relative humidity should not exceed 50% at max temperature +40℃. Higher
relative humidity is allowed at lower temperature. Ex. 90% at +20℃. But in view of
the temperature change, it is possible that moderate dews will produce casually.
4. No fire, explosion danger, serious pollution, chemical corrosion and severe vibration
5. Installation gradient not exceed 5°
6. This product is suitable for the following temperature transportation storage: -25℃ ~+55℃ 24h, in a short period of time (no more than 24hours) not more than+70℃.
