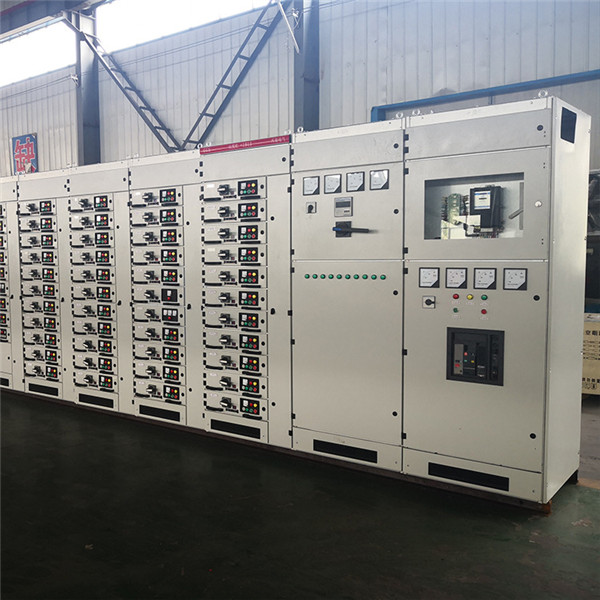

China Suppliers Low Voltage Switchgear Switch Cabinet Metal-Clad Enclosed Switchgear With Good Quality

Product Description

China Suppliers Low Voltage Switchgear Switch Cabinet Metal-Clad Enclosed Switchgear With Good Quality

The electrical panels is applied to the distribution system in the power plants, high-rise buildings, chemical industry, and petroleum, metallurgy and textile industries. In the large power plants and highly automated petroleum and chemical industries that require connecting with computers, it is used, as a complete low-voltage distribution equipment, for power distribution in the power generation and distribution system with three-phase AC frequency 50(60)Hz, 380V(400)(600) and rated current up to and including 4000A, and motor centralized-control and reactive power compensation.

Type GCS low-voltage withdrawable type switchgear is a blend of the other advantages of low voltage products and the development of advanced products, applicable to power plants, petrochemical industry, metallurgy, telecommunications, light industry, textile, high-rise buildings and other civil and industrial and mining enterprises of power distribution system, in large power plants, petrochemical, telecommunication system, etc. A high degree of automation, and computer interface, as the motor centralized-control hair, power supply system of power distribution, low-voltage distribution of reactive power compensation device.

Structural features

Houndreds types product as like GCK low-voltage withdrawable switchgear is the basic frame for the combination of fabricated structure, the frame of the whole structure by screw fastening connection each other into the basic framework, according to the need to add the door again, baffle, baffle plate, a drawer, mounting bracket and busbar and electrical components and other parts, assembled into a complete control center tank, this structure has the following features:

1. The cabinet frame adopts C profile, bolt connection without welding structure so as to avoid welding deformation and stress, and improve the installation accuracy.

2. Internal structure shall be galvanized.After pickling and phosphating, the exterior was sprayed with electrostatic epoxy powder.

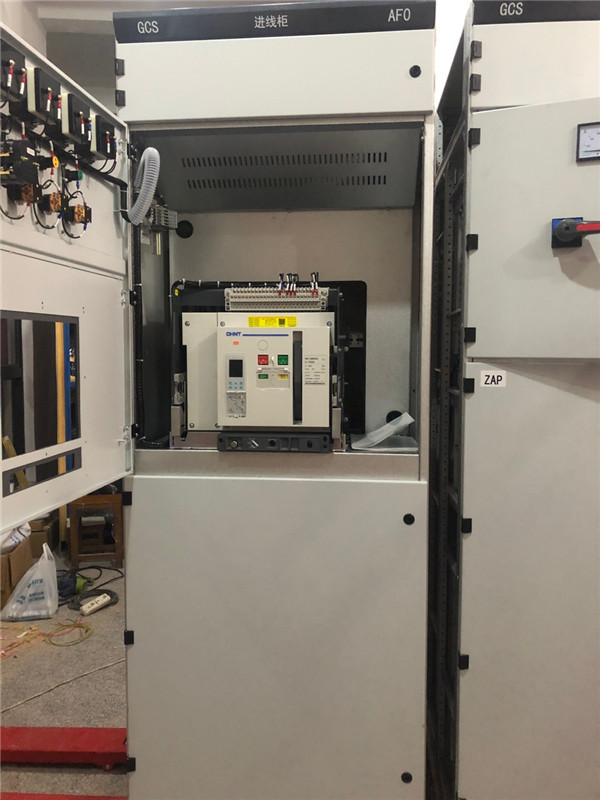

3. (PC) in the center of the power distribution ark into line, busbar area across the top level, lower level of busbar area for circuit breaker, the breaker can be configured homebred CW1, HSW1 series, can also according to customer's need to configure the foreign electric company production of various kinds of circuit breaker, such as ABB company E series circuit breaker, as well as intelligent circuit breaker and so on.

Conditions of use

1. Ambient temperature: -15'C~+40'C

2. Altitude: <=1000m

3. Air humidity:

daily average of Air humidity <=95%, daily average of partial vapor pressure <= 2.2kPa;

monthly average of Air humidity <=90%, monthly average of partial vapor pressure <= 1.8kPa

4. Earthquake intensity <= 8 degree

5. No corrosive or flammable gas

Special condition subject to users
