Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HENGFENGYOU |
| Certification: | ISO IEC CB COC KEMA SNI SABS CCC |
| Model Number: | GGD |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 |
| Price: | 200-20000/piece |
| Packaging Details: | wooden case |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 piece/year |
|
Detail Information |
|||
| Model Number: | GGD | Type: | Metal Clad |
|---|---|---|---|
| Rated Frequency: | AC 50Hz (60Hz) | Rated Current(A): | 630, 1250, 1600, 2500, 3510, 4000 |
| Customized: | OEM/ODM Order Acceptable | Application: | Power Transmission Or Distribution |
| Product Name: | Electrical Kyn28 12 Switchgear 11kv | Rated Voltage: | 3KV, 7.2KV, 12KV Optional |
| Comply Standards: | DL/T404, IEC298,GB3906 | ||
Product Description

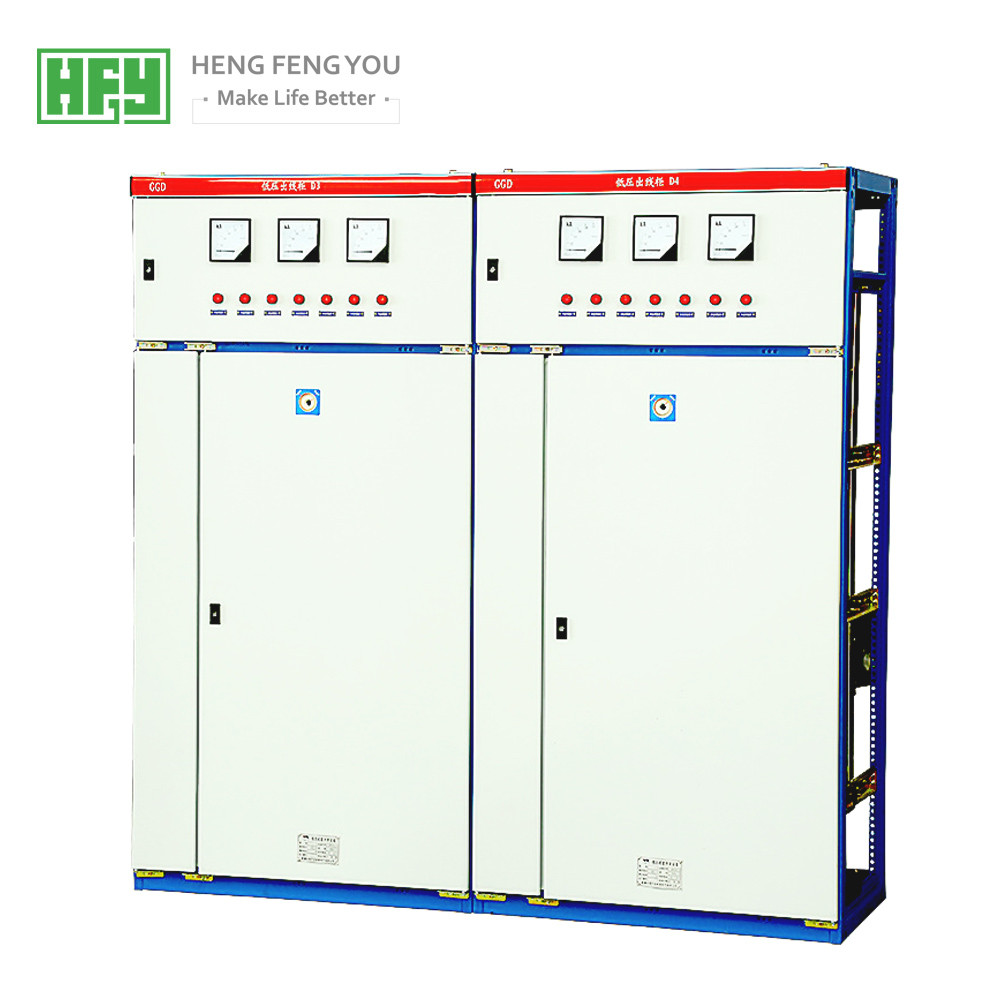

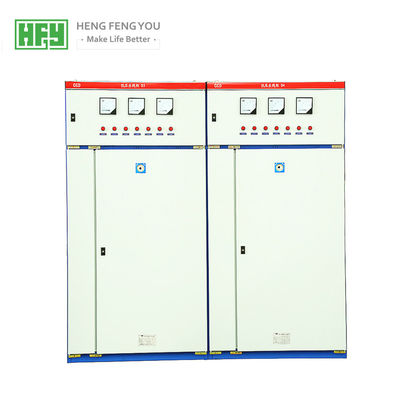

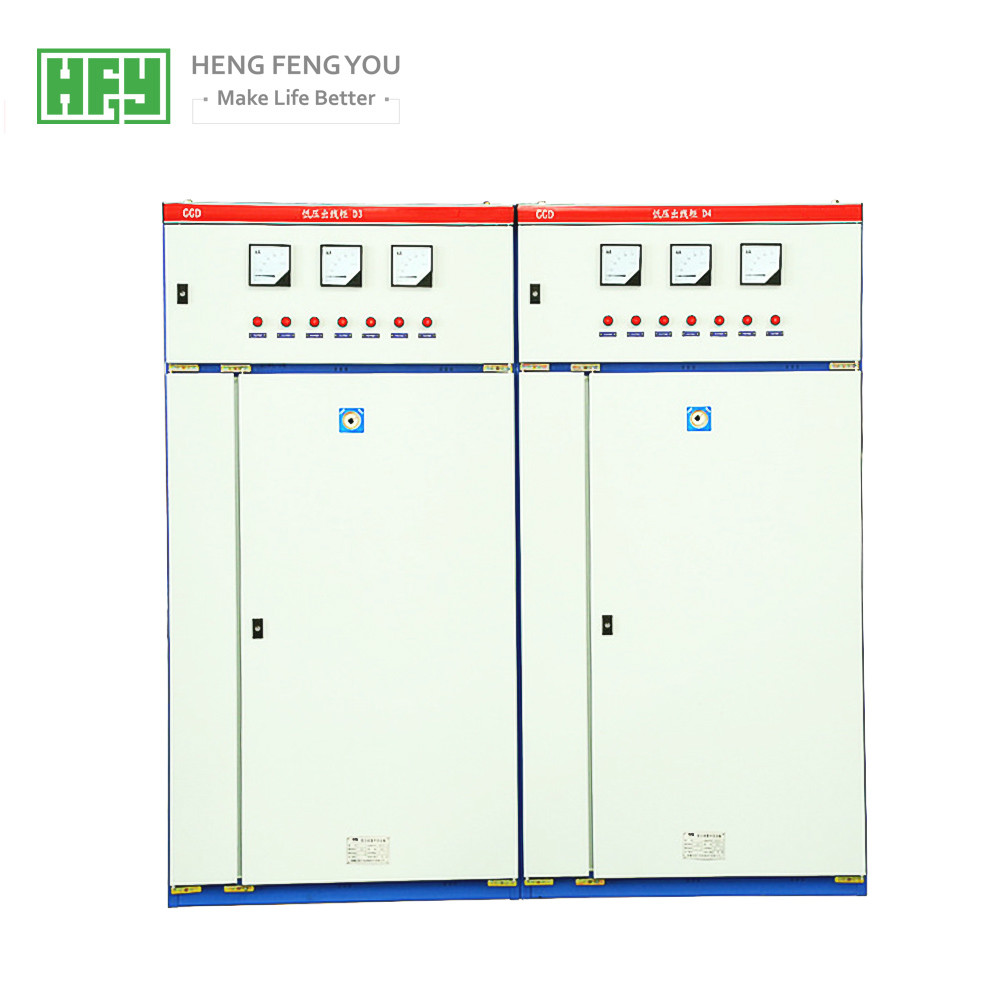

Professional customized type 0.4kV indoor fixed GGD type reactive compensation low voltage distribution cabinet
Products Description
1. GCK low voltage reactive intelligent compensation device uses computer aided design (CAD) and introduces the microcomputer control for intelligent tracking on reactive power compensation. It has reasonable structure, advanced technology and is widely used among low voltage power grid to improve power factor, reduce reactive loss and improve the quality of power supply. It is a new energy-saving product which is exclusively used to reactive power compensation for 130-600 kVA three-phase transformers. This Type low-voltage drawer switchgears adopt design of standard modules and a compact structure. Basic structure of cabinets is assembled with C profiles. All frames and inner isolation plates are galvanized and passivated, and door panels and side plates are treated by electrostatic spraying. Each functional unit can operates relatively independently, and that of out-going lines can be installed with at most 36 circuits. Several schemes are available for users to choose, including top in-coming line, top out-going line, bottom in-coming line, bottom out-going line, etc
2. The design of the GGD cabinet fully takes into account the heat dissipation during the operation of the cabinet. There are different numbers of heat dissipation slots at the upper and lower ends of the cabinet. When the electrical components in the cabinet are heated, the heat rises and is discharged through the upper slot, and the cold air is continuously replenished into the cabinet by the lower slot to make the sealed cabinet to form a natural air passage from the bottom to the end for heat dissipation.
3. GGD cabinet according to the requirements of modern industrial product design, using the golden ratio method to design the cabinet shape and the size of each part of the division, which are beautiful and generous, fresh. The hinge of the cabinet door is connected with the frame, which is convenient for installation and disassembly. A mountain-shaped rubber strip is embedded in the folded edge of the door. When the door is closed, the insert between the door and the frame has a certain compression stroke, which can preven the door from cracking the cabinet and also increases the degree of protection of the door. The instrument door with electrical components is connected to the frame by lots of soft copper coins. The mounting piece and the frame in the cabinet are connected by knurled screws, and the whole cabinet constitutes a complete grounding protection circuit.
4. The main circuit of the GGD cabinet is designed with 129 schemes and a total of 298 specifications (excluding the functional changes of the auxiliary circuits and the control schemes and specifications derived from the control voltage).
| Rated isolation voltage | To 1000V |
| Rated operational voltage | To 600V |
| Rated frequency | 50 /60 Hz |
| Rated impact withstand voltage | 8 kV |
| Rated voltage of auxiliary circuit | AC380, 220V,DC 220V |
| Over voltage degree | III |
| Pollution degree | 3 |
| Rated current | 4000A |
| Horizontal busbar rated current | 4000A |
| Vertival busbar rated current |
2000, 1000A |
Note: Due to continuous product improvement, the dimensions provided in this sample are for reference only. If necessary, our company can design and produce according to user requirements. Please contact the company in time.
1. Indoor altitude above sea level: Maximum installation altitude: 2000m
2. Ambient air temperature: -5℃~+40℃ and the average temperature should not
exceed +35℃ in 24h
3. Relative humidity should not exceed 50% at max temperature +40℃. Higher
relative humidity is allowed at lower temperature. Ex. 90% at +20℃. But in view of
the temperature change, it is possible that moderate dews will produce casually.
4. No fire, explosion danger, serious pollution, chemical corrosion and severe vibration
5. Installation gradient not exceed 5°
6. This product is suitable for the following temperature transportation storage: -25℃ ~+55℃ 24h, in a short period of time (no more than 24hours) not more than+70℃.
Our Services
We have established strict working procedures and standards in the development, production, sales and after-sales of electrical products, so as to provide customers with first-class products and the best service.
1. Our electrical engineer has more than 10 years of working experience
2.Our workshop workers are all skilled industrial workers who have received three months 'pre-job training
3. Our sales team has been extensively trained by management consultants to provide professional solutions for customers
4. Our technical team can provide customers with 24-hour technical support world wide
5. Our customer service team ensures that orders are delivered on time.
Pre-sale service:
1.ISO certified excellent Manufacturer
2. Third-party authoritative certifications: SGS, CE, CB, CNAS, CQC, CCC, etc
3. Flexible payment: T/T, LC, O/A
4. Sufficient inventory, fast delivery time and long validity of the price
5. The whole process of picture tracking can be realized in production and transportation
6. Experienced professional sales team and a strong technical team
7. Sincerely invite customers to visit the company for guidance
After-sales service:
1. If there is any quality problem after receiving the goods, you can return the goods free of charge or ship new products
2. We provide our customers with a 2-year product warranty
3. Provide 24-hour, 365-day technical guidance worldwide
4. The VIP customers enjoy our promotional activity
