Model Number: | GCK | Type: | Metal Clad |
---|---|---|---|
Rated Frequency: | AC 50Hz (60Hz) | Rated Current(A): | 630, 1250, 1600, 2500, 3510, 4000 |
Customized: | OEM/ODM Order Acceptable | Application: | Power Transmission Or Distribution |
Product Name: | Electrical Kyn28 12 Switchgear 11kv | Rated Voltage: | 3KV, 7.2KV, 12KV Optional |
Comply Standards: | DL/T404, IEC298,GB3906 | ||
High Light: | low tension switchgear,low voltage metal clad switchgear |
Product Description

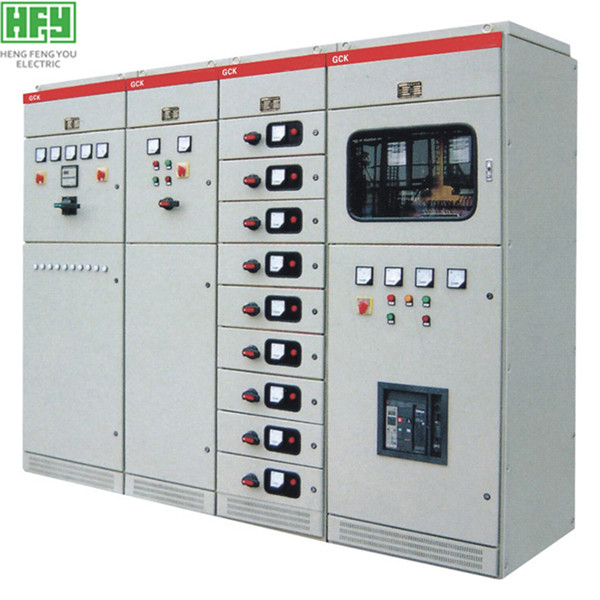

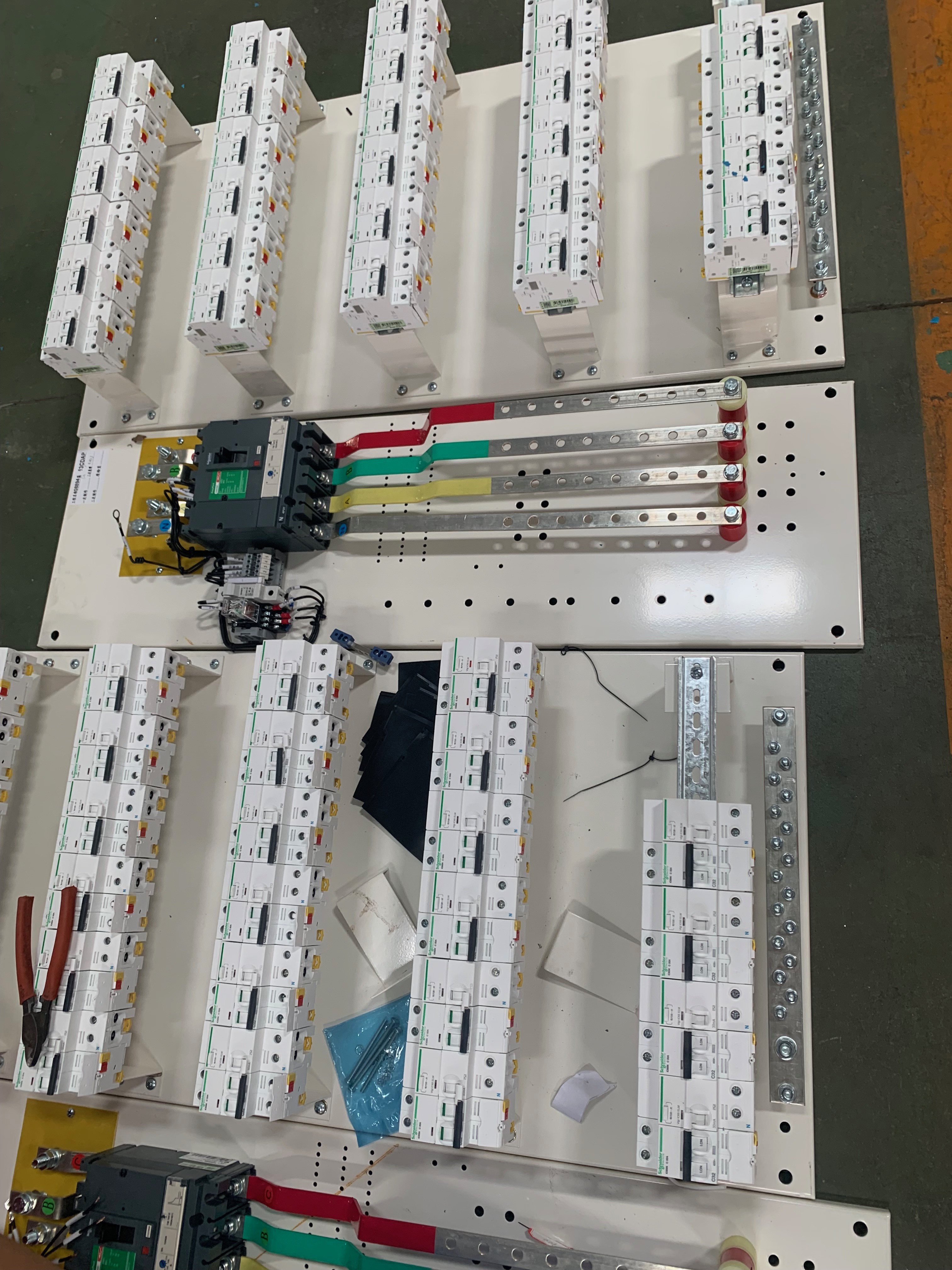

Low Voltage Metering Cabinet Switchgear / Incoming Panel Cubicle / Outgoing Panel Cubicle Switchgear
Low-voltage switchgear (hereinafter referred to as the device) for AC 50Hz, rated working voltage of 400V, rated current of 4000A and below the low-voltage power grid for power generation, transmission, power distribution system as power lighting, power conversion, Protection and control occasions. The device is approved by a full type of pilot project (TTA) and a national mandatory product certification (CCC certification). The device complies with the requirements of GB7251.1 and IEC60439.
GCK type LV switchgear is suitable for three-phase AC 50 /60HZ, max voltage 660V, rated current to 3150A system and three-phase four wire and three-phase five wire, it is widely used in
power plants, substations, industrial and mining enterprises, hotels, airports, docks and the building of broadcasting and communication center, transmission & distribution and the electric energy conversion, power distribution and power consumption in PC and motor control center MCC
GCK type withdrawerable Low Voltage MCC -Motor Control Center Panel with access in front.
440V Low Voltage MCC Motor Control panel is used for the motor controlling ,to start or close the motor .
Inside additional equipped with 2 medium relays, one relay with coil 24VDC for coming signal from PLC, the other relay for turning on /off from field
Item | Unit | Parameters | |
Rated voltage | KV | 3, 7.2, 12 | |
Rated current | A | 630,1250,1600,2500,3150,4000* | |
Rated short circuit breaking current | KA | 25, 31.5, 40 | |
Rated short circuit switching current | 63, 80, 100 | ||
Rated short-yime withstand current(4s) | 25, 31.5, 40 | ||
Rated peak withstand current | 63, 80, 100 | ||
Rated frequency | Hz | 50 | |
Rated insulation level | 1 min power frequency withstand voltage | KV | 42 |
Lighting impulse withstand voltage | 75 | ||
control circuit voltages | AC | V | 110, 220, 380 |
DC | V | 110, 220 | |
Protection degree | Housing IP4X , cubicle and circuit breaker IP2X when door is open |
1.Indoor altitude above sea level: Maximum installation altitude: 2000m
2..Ambient air temperature: -5℃~+40℃ and the average temperature should not
exceed +35℃ in 24h
3.Relative humidity should not exceed 50% at max temperature +40℃. Higher
relative humidity is allowed at lower temperature. Ex. 90% at +20℃. But in view of
the temperature change, it is possible that moderate dews will produce casually.
4.No fire, explosion danger, serious pollution, chemical corrosion and severe vibration
5.Installation gradient not exceed 5°
6.This product is suitable for the following temperature transportation storage: -25℃ ~+55℃ 24h, in a short period of time (no more than 24hours) not more than+70℃.
This series of products with high breaking capacity, good dynamic stability, advanced and reasonable structure, electrical program of practical, series, strong versatility, various schemes of unit combination, a cabinet contained many circuits, save the area , beautiful appearance, high level protection, safe and reliable, convenient maintenance etc.
It accords with the standards IEC439 NEMA ICS2-322 as well as the GB7251-87 “Low voltage complete switch device ” national standards and ZBK36001-89 "low voltage withdraw type complete switch device” professional standards"
