Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HENGFENGYOU |
| Certification: | ISO IEC CB COC KEMA SNI SABS CCC |
| Model Number: | GCK,MNS |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 |
| Price: | 200-20000/piece |
| Packaging Details: | wooden case |
| Delivery Time: | 30 days |
| Payment Terms: | LC T/T |
| Supply Ability: | 5000 piece/year |
|
Detail Information |
|||
| Model Number: | GCK,MNS | Type: | Metal Clad |
|---|---|---|---|
| Rated Frequency: | AC 50Hz (60Hz) | Rated Current(A): | 630, 1250, 1600, 2500, 3510, 4000 |
| Application: | Power Transmission Or Distribution | Product Name: | Electrical Kyn28 12 Switchgear 11kv |
| Rated Voltage: | 3KV, 7.2KV, 12KV Optional | ||
| High Light: | low tension switchgear,low voltage metal clad switchgear |
||
Product Description
Insulation Electrical Switchgear For UZ UK RU Market Rated Frequency(Hz)50 Low Voltage Cabinet Low Voltage Switchgear
Product description

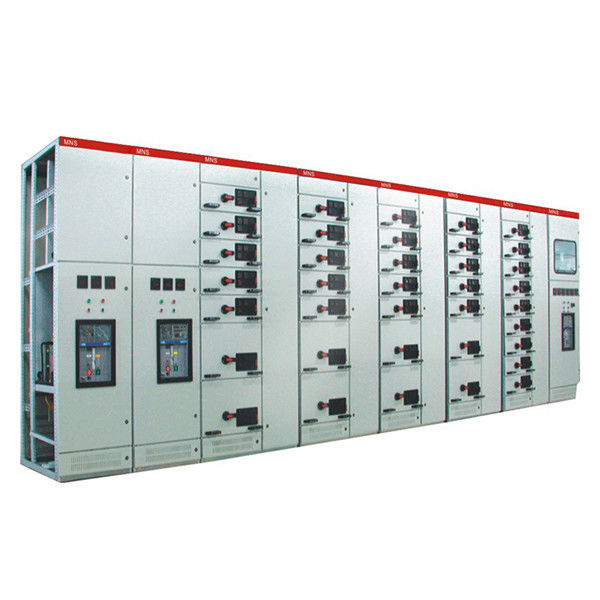

MNS Drawout Low-Voltage Switchgear is assembled with modularized components as combination unit (hereinafter called the device). It is applied to AC 50-60Hz @ rated operating voltage of 660V or below for power receiving and distribution of low voltage distribution system and for power switching, distribution and control of power distribution and motor control center as well as capacitance compensation. The switchgear cabinet complies with GB7251.12-2013.
Structural features:
The frame is adopted with C profiles. The mounting holes in ∅5.3mm with module E=25mm on the main framework enables its assembly flexible and convenient.Framework, component door and electrical appliance are made of cold rolled steel plate 2 thickness, and other parts are made of cold rolled steel plate with 1.5 thickness. The panel is cleaned by pickling and phosphating and then electrostatic spraying. Framework, internal partition plate and drawer parts are made of cold-rolled white galvanized sheet or aluminum-zinc sheet, all of which are assembled by self tapping, and the accuracy and firmness of the parts are improved after assembly. There are separate function units, bus room and cable outlet room. Unit isolation room with plastic plate, equipped with L type a copper line. The arrangement of the horizontal bus adopts the flat type after the cabinet or the sitting way of the top of the cabinet. The ability to resist electric power is strong. The connection between the power distribution unit and the external cable is completed in the cable room or in the post outlet room. The cable can go up and down, and the installation and maintenance are convenient. The degree of protection is IP3X-4X.Glass door cabinet at least 650mm, cabinet depth of at least 700mm.
Conditions of use
1. For indoor use, the elevation of the service point shall not exceed 2000m.
2, the ambient air temperature is not higher than +40 degrees, not lower than negative 5 degrees.The average temperature should not be higher than +35 degrees within 24 hours.When exceeding, the capacity should be reduced according to the actual situation.
3. The relative high temperature of the surrounding air is +40 ° c and does not exceed 50%, and a large relative temperature is allowed at a lower temperature;If +20 degrees is 90%, consideration should be given to the effect of occasional condensation caused by temperature changes.
4. When the device is installed, the tilt with the vertical plane shall not exceed 5°, and the whole set of cabinets shall be relatively flat in line with the standard of gbj232-2.
5. The device shall be installed in a place where there is no severe vibration and impact and no corrosion of electrical components is sufficient to use
| Item | Unit | Parameter |
| Rated operating voltage | V | AC380,660 |
| Rated insulation volatge | V | AC660,1000 |
| Horizontal busbar current rating | A | 1250 2000 2500 3200 |
| Vertical busbar current rating | A | 1000 |
| Max. feeder circuit current | A | 2500 |
| Max. drawer circuit current | A | 630 |
| Max. control motor capacity | kW | 320 |
| Rated frequency | Hz | 50/60 |
| Horizontal busbar peak withsatnd current | kA/0.1s | 105,176 |
| Horizontal busbar short-time withstand current | kA/1s | 50,80 |
| Vertical busbar peak withstand current | kA/0.1s | 105 |
| Vertical busbar short-time withstand current | kA/1S | 50 |
| Rated power freq. withstand voltage | V/1min. | 2500 |
| Secondary power freq. withstand voltage | V/1min. | 2500 |
| Enclosure protection degree | IP30,IP40 |
5. Order information
Schematic diagram of main circuit or electrical schematic diagram
Arrangement and layout
Model, specification and quantity of main components.
Incoming and outgoing wire method and cable specification, etc
If bus connection is required between the devices, bus connection and height from the ground shall be provided.
1. Indoor altitude above sea level: Maximum installation altitude: 2000m
2. Ambient air temperature: -5℃~+40℃ and the average temperature should not
exceed +35℃ in 24h
3. Relative humidity should not exceed 50% at max temperature +40℃. Higher
relative humidity is allowed at lower temperature. Ex. 90% at +20℃. But in view of
the temperature change, it is possible that moderate dews will produce casually.
4. No fire, explosion danger, serious pollution, chemical corrosion and severe vibration
5. Installation gradient not exceed 5°
6. This product is suitable for the following temperature transportation storage: -25℃ ~+55℃ 24h, in a short period of time (no more than 24hours) not more than+70℃.
This series of products with high breaking capacity, good dynamic stability, advanced and reasonable structure, electrical program of practical, series, strong versatility, various schemes of unit combination, a cabinet contained many circuits, save the area , beautiful appearance, high level protection, safe and reliable, convenient maintenance etc.
It accords with the standards IEC439 NEMA ICS2-322 as well as the GB7251-87 “Low voltage complete switch device ” national standards and ZBK36001-89 "low voltage withdraw type complete switch device” professional standards"
