Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HENGFENGYOU |
| Certification: | ISO IEC CB COC KEMA SNI SABS CCC |
| Model Number: | GCK,MNS |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 |
| Price: | 200-20000/piece |
| Packaging Details: | wooden case |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 piece/year |
|
Detail Information |
|||
| Model Number: | GCK,MNS | Type: | Metal Clad |
|---|---|---|---|
| Rated Frequency: | AC 50Hz (60Hz) | Rated Current(A): | 630, 1250, 1600, 2500, 3510, 4000 |
| Application: | Power Transmission Or Distribution | Product Name: | Electrical Kyn28 12 Switchgear 11kv |
| Rated Voltage: | 3KV, 7.2KV, 12KV Optional | ||
Product Description
MNS Low Voltage Switchgear With High Breaking Capacity And Dynamic And Thermal Stability China Manufacturers
Product description

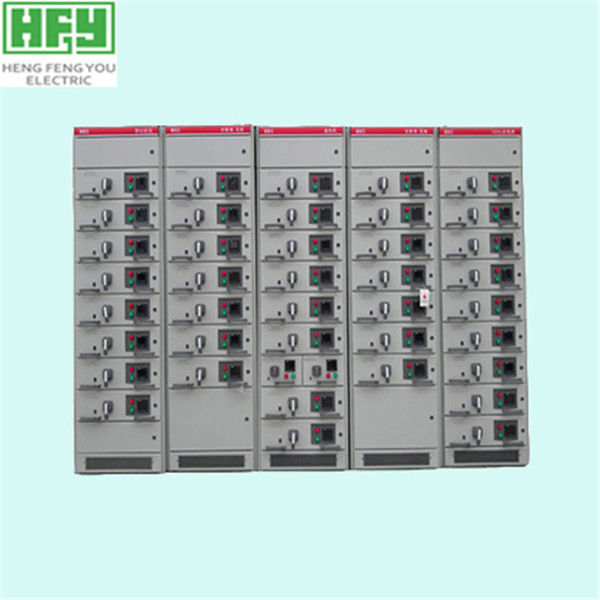

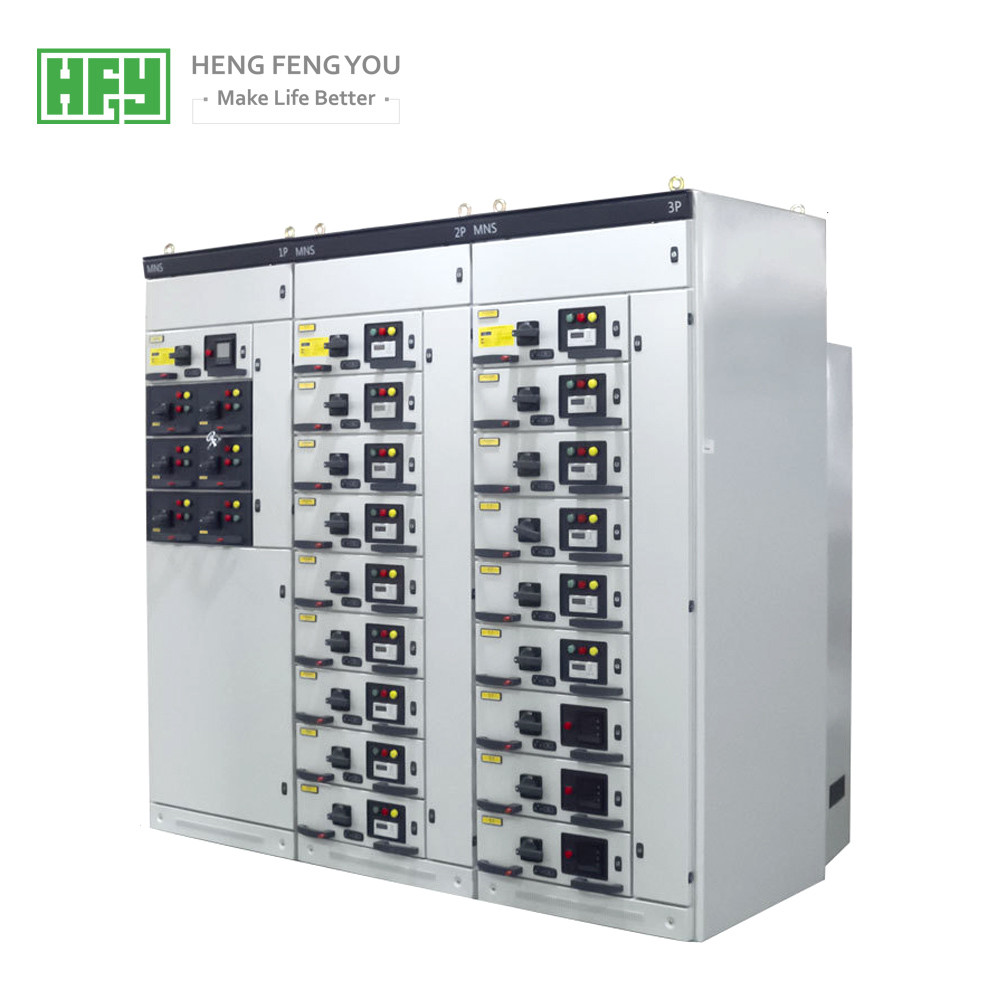

MNS low-voltage drawer type switchgear (hereinafter referred to as switchgear) is developed by our company after referring to Swiss ABB's MNS series low-voltage switchgear and making comprehensive improvement.The products are composed of standardized, serial modules, and the drawer has a reliable mechanical interlock device, which makes the user safer and more reliable when using.

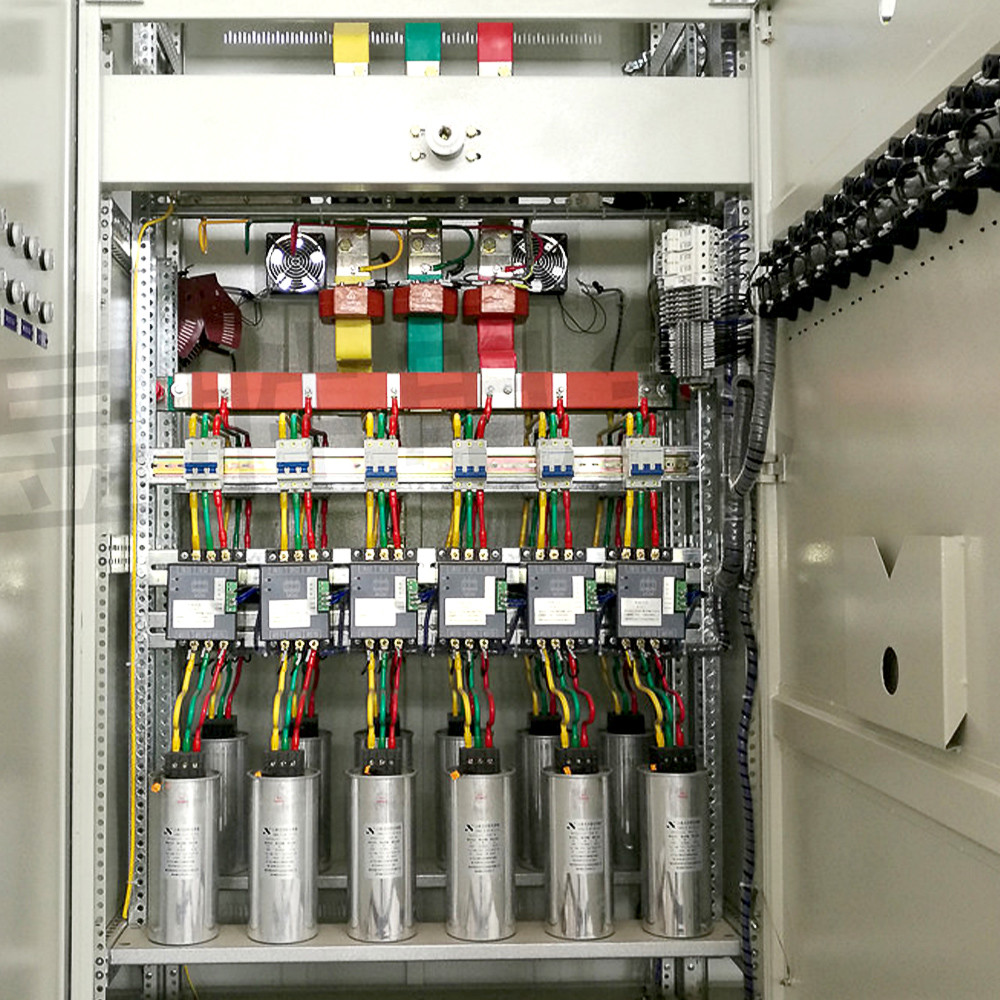

The switch cabinet is suitable for use in ac 50 Hz (60), rated voltage 400 v, 660 v, rated current under 5000 a and three-phase five wire of electric power supply system, can be used in power plants, substations, industrial and mining enterprises, hotel, airport, dock and radio and television communications center, for power generation, transmission and distribution, power conversion and power consumption equipment control, and through the ark to its main bus-bar capacitance compensation for reactive power compensation.
Structural features:
The product design has fully considered the requirements of the majority of power users and design departments, which can meet the needs of the developing power industry such as the centralized control of capacity increase power, convenient installation and maintenance, and shortened accident treatment time, etc., which is safe, economical, reasonable and reliable.The product has the characteristics of strong connection ability, high breaking ability, good dynamic stability, flexible electrical scheme, convenient combination, strong series and practicability, novel structure and so on.At the same time, it can be combined with drawers and cabinets for mixed use.
Switch cabinet cabinet structure is composed of profiles (module E=25mm) assembly.As a result of using lock since tapping screw and 8.8 class high strength bolt for connection, thus high precision cabinet, good patience.
Conditions of use
1. For indoor use, the elevation of the service point shall not exceed 2000m.
2, the ambient air temperature is not higher than +40 degrees, not lower than negative 5 degrees.The average temperature should not be higher than +35 degrees within 24 hours.When exceeding, the capacity should be reduced according to the actual situation.
3. The relative high temperature of the surrounding air is +40 ° c and does not exceed 50%, and a large relative temperature is allowed at a lower temperature;If +20 degrees is 90%, consideration should be given to the effect of occasional condensation caused by temperature changes.
4. When the device is installed, the tilt with the vertical plane shall not exceed 5°, and the whole set of cabinets shall be relatively flat in line with the standard of gbj232-2.
5. The device shall be installed in a place where there is no severe vibration and impact and no corrosion of electrical components is sufficient to use
| Item | Unit | Parameters | |
| Rated voltage | KV | 3, 7.2, 12 | |
| Rated current | A | 630,1250,1600,2500,3150,4000* | |
| Rated short circuit breaking current | KA | 25, 31.5, 40 | |
| Rated short circuit switching current | 63, 80, 100 | ||
| Rated short-yime withstand current(4s) | 25, 31.5, 40 | ||
| Rated peak withstand current | 63, 80, 100 | ||
| Rated frequency | Hz | 50 | |
| Rated insulation level | 1 min power frequency withstand voltage | KV | 42 |
| Lighting impulse withstand voltage | 75 | ||
| control circuit voltages | AC | V | 110, 220, 380 |
| DC | V | 110, 220 | |
| Protection degree | Housing IP4X , cubicle and circuit breaker IP2X when door is open | ||
Our Services
We have established strict working procedures and standards in the development, production, sales and after-sales of electrical products, so as to provide customers with first-class products and the best service.
1. Our electrical engineer has more than 10 years of working experience
2.Our workshop workers are all skilled industrial workers who have received three months 'pre-job training
3. Our sales team has been extensively trained by management consultants to provide professional solutions for customers
4. Our technical team can provide customers with 24-hour technical support world wide
5. Our customer service team ensures that orders are delivered on time.
Pre-sale service:
1.ISO certified excellent Manufacturer
2. Third-party authoritative certifications: SGS, CE, CB, CNAS, CQC, CCC, etc
3. Flexible payment: T/T, LC, O/A
4. Sufficient inventory, fast delivery time and long validity of the price
5. The whole process of picture tracking can be realized in production and transportation
6. Experienced professional sales team and a strong technical team
7. Sincerely invite customers to visit the company for guidance
After-sales service:
1. If there is any quality problem after receiving the goods, you can return the goods free of charge or ship new products
2. We provide our customers with a 2-year product warranty
3. Provide 24-hour, 365-day technical guidance worldwide
4. The VIP customers enjoy our promotional activity
