Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HENGFENGYOU |
| Certification: | ISO IEC CB COC KEMA SNI SABS CCC |
| Model Number: | GGD |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 |
| Price: | 200-20000/piece |
| Packaging Details: | wooden case |
| Delivery Time: | 30 days |
| Payment Terms: | LC T/T |
| Supply Ability: | 5000 piece/year |
|
Detail Information |
|||
| Model Number: | GGD | Type: | Metal Clad |
|---|---|---|---|
| Rated Frequency: | AC 50Hz (60Hz) | Rated Current(A): | 630, 1250, 1600, 2500, 3510, 4000 |
| Customized: | OEM/ODM Order Acceptable | Application: | Power Transmission Or Distribution |
| Product Name: | Electrical Kyn28 12 Switchgear 11kv | Rated Voltage: | 3KV, 7.2KV, 12KV Optional |
| Comply Standards: | DL/T404, IEC298,GB3906 | ||
| High Light: | low tension switchgear,low voltage metal clad switchgear |
||
Product Description

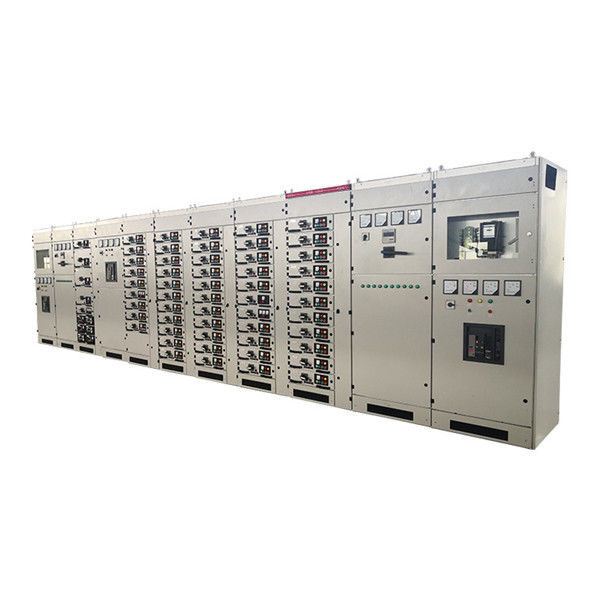

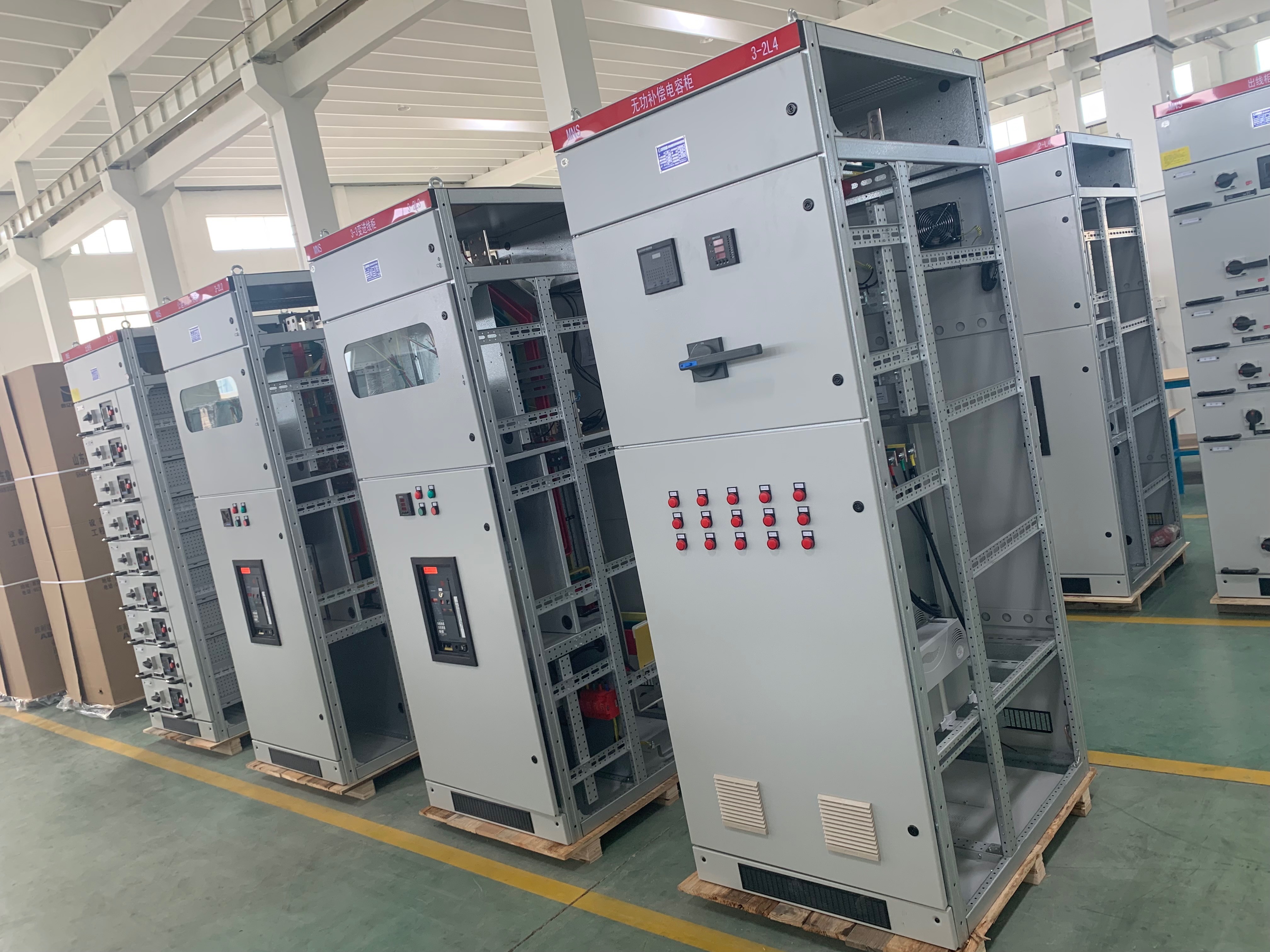

China Factory Direct Compact Structure Switchgear Low-Voltage Switchgear Switch Cabinet Metal Enclosed Cubicle
Products Description
The device is suitable for power conversion, distribution and control of power, power distribution and motor control centers, capacitor compensation, etc. of power plants, substations, petrochemical departments, factories and mines, high-rise buildings and other low-voltage power distribution systems.
When used in low-voltage control centers and motor control centers in large-scale power plants, large-scale petrochemical industries, etc., it can meet the special needs of computer interfaces. The device is developed according to the requirements of the supervisors of the Ministry of Electric Power, the majority of power users and the design department, in order to meet the needs of the evolving power market capacity expansion, computer interface, centralized power control, convenient installation and maintenance, and shortening the processing time of accidents. The device has the characteristics of good dynamic thermal stability, flexible electrical scheme, convenient combination, strong seriality, novel structure and high protection level.
The device complies with IEC439-1, GB7251, ZBK36001 and other standards.
| Rated isolation voltage | To 1000V |
| Rated operational voltage | To 600V |
| Rated frequency | 50 /60 Hz |
| Rated impact withstand voltage | 8 kV |
| Rated voltage of auxiliary circuit | AC380, 220V,DC 220V |
| Over voltage degree | III |
| Pollution degree | 3 |
| Rated current | 4000A |
| Horizontal busbar rated current | 4000A |
| Vertival busbar rated current |
2000, 1000A |
Note: Due to continuous product improvement, the dimensions provided in this sample are for reference only. If necessary, our company can design and produce according to user requirements. Please contact the company in time.
1. Indoor altitude above sea level: Maximum installation altitude: 2000m
2. Ambient air temperature: -5℃~+40℃ and the average temperature should not
exceed +35℃ in 24h
3. Relative humidity should not exceed 50% at max temperature +40℃. Higher
relative humidity is allowed at lower temperature. Ex. 90% at +20℃. But in view of
the temperature change, it is possible that moderate dews will produce casually.
4. No fire, explosion danger, serious pollution, chemical corrosion and severe vibration
5. Installation gradient not exceed 5°
6. This product is suitable for the following temperature transportation storage: -25℃ ~+55℃ 24h, in a short period of time (no more than 24hours) not more than+70℃.
This series of products with high breaking capacity, good dynamic stability, advanced and reasonable structure, electrical program of practical, series, strong versatility, various schemes of unit combination, a cabinet contained many circuits, save the area , beautiful appearance, high level protection, safe and reliable, convenient maintenance etc.
It accords with the standards IEC439 NEMA ICS2-322 as well as the GB7251-87 “Low voltage complete switch device ” national standards and ZBK36001-89 "low voltage withdraw type complete switch device” professional standards"
