MNS Low Voltage Switchgear advanced model new technology

Product Details:
Place of Origin: China
Model Number: MNS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200-20000/piece
Packaging Details: wood pack
Delivery Time: 30 days
Payment Terms: LC T/T
Supply Ability: 5000 piece/year
Contact Now

Detail Information

High Light:

low tension switchgear


low voltage metal clad switchgear

Product Description

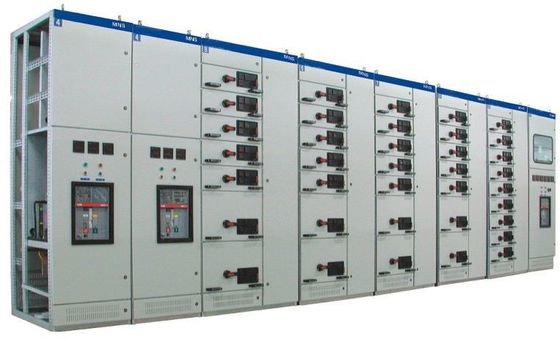

                                 MNS  Low Voltage Switchgear  advanced model  new technology 0


General info


MNS low-voltage drawer type switchgear (hereinafter referred to as switchgear) is developed by our company after referring to Swiss ABB's MNS series low-voltage switchgear and making comprehensive improvement.The products are composed of standardized, serial modules, and the drawer has a reliable mechanical interlock device, which makes the user safer and more reliable when using.


The switch cabinet is suitable for use in ac 50 Hz (60), rated voltage 400 v, 660 v, rated current under 5000 a and three-phase five wire of electric power supply system, can be used in power plants, substations, industrial and mining enterprises, hotel, airport, dock and radio and television communications center, for power generation, transmission and distribution, power conversion and power consumption equipment control, and through the ark to its main bus-bar capacitance compensation for reactive power compensation.



MNS  Low Voltage Switchgear  advanced model  new technology 1



Structural features:


The product design has fully considered the requirements of the majority of power users and design departments, which can meet the needs of the developing power industry such as the centralized control of capacity increase power, convenient installation and maintenance, and shortened accident treatment time, etc., which is safe, economical, reasonable and reliable.The product has the characteristics of strong connection ability, high breaking ability, good dynamic stability, flexible electrical scheme, convenient combination, strong series and practicability, novel structure and so on.At the same time, it can be combined with drawers and cabinets for mixed use.


Switch cabinet cabinet structure is composed of profiles (module E=25mm) assembly.As a result of using lock since tapping screw and 8.8 class high strength bolt for connection, thus high precision cabinet, good patience.





MNS  Low Voltage Switchgear  advanced model  new technology 2


conditions of use


1.The elevation shall not exceed 2000m;

2.The ambient air temperature is not higher than +40℃, and the average temperature within 24 hours is not higher than +35℃, the ambient air temperature is not lower than -5℃;

3.Atmospheric conditions the air is clean, the relative humidity does not exceed 50% when the temperature is +40℃, and the relatively high relative humidity is allowed when the temperature is relatively low.

For example, at +20℃, it is 90%;

4.No fire, explosion risk, serious pollution, chemical corrosion and violent vibration of the place;

5.The inclination with the vertical plane shall not exceed 5 degrees;

6.This product is suitable for the following temperature transportation and storage: -25℃~55℃, in a short time (no more than 24h) no more than +70℃.


 order instruction:

1. Schematic diagram of main circuit or electrical schematic diagram

2. Arrangement and layout

3. Model, specification and quantity of main components.

4. Incoming and outgoing wire method and cable specification, etc

5. If bus connection is required between the devices, bus connection and height from the ground shall be provided.

6. Other ordering requirements



MNS  Low Voltage Switchgear  advanced model  new technology 3
