Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HENGFENGYOU |
| Certification: | ISO IEC CB COC KEMA SNI SABS CCC |
| Model Number: | KYN61 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 |
| Price: | 200-20000/piece |
| Packaging Details: | wooden case |
| Delivery Time: | 30 days |
| Payment Terms: | LC T/T |
| Supply Ability: | 5000 piece/year |
|
Detail Information |
|||
| Rated Current: | 630,1250,1600,20000000A | Rated Peak Withstand Current: | 50,63,80,100KA |
|---|---|---|---|
| Insulation: | 95/185KV Power Frequency/Lightning | Optional Circuit Breakers: | ZN85, VD4, HD4, LN2-40.5 Etc. |
| Operational Power Supply: | DC:110,220; AC:110,220 | Rated Voltage: | 40.5KW |
| Rated Short-circuit Current: | 20,25,31.5,40KA | Short-time Withstand Current(4s): | 20,25,31.5,40KA |
| Protection Class: | IP4X | ||
| High Light: | switchgear control panel,metal clad switchgear |
||
Product Description

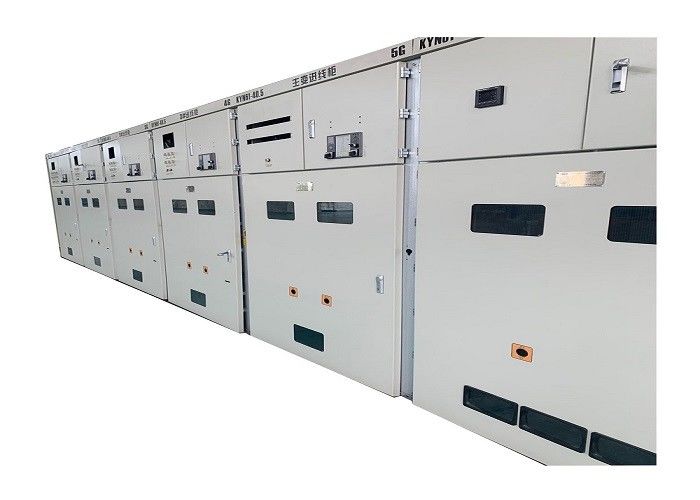

KYN 61-40.5 Armoured Middle Metal Enclosed High Voltage Switchgear
1. Applications:
KYN61 series ht switchgear panel 35KV 40.5KV for electricity power distribution applied to
power distribution system for 40.5kV with three-phase AC 50Hz single bus or single bus
sectional system.Mainly used in power plants, substation, industrial and mining enterprises
for power receiving and distribution, also for controlling, protecting and monitoring the circuit.
It can be used for frequent operated occasions as well.
2. Environmental Conditions
· Suitable Altitude: 1000m ~ 4000m
· Suitable Temperature: -40℃ ~ +45℃
· Relative Humidity: Daily mean ≤95%, monthly mean ≤90%
· Gradation of Earthquake Damage: ≤ Level 8
3. Technical Data
| No. | Item | Unit | Data |
| 1 | Rated voltage | KV | 40.5 |
| 2 | Rated current | A | 6,301,250,160,020,000,000 |
| 3 | Rated short-circuit current | KA | 20,25,31.5,40 |
| 4 | Rated peak withstand current | KA | 50,63,80,100 |
| 5 | Short-time withstand current(4s) | KA | 20,25,31.5,40 |
| 6 | Insulation: Power frequency/Lightning | KV | 95/185 |
| 7 | Protection class | IP4X | |
| 8 | Optional circuit breakers | ZN85, VD4, HD4, LN2-40.5 etc. | |
| 9 | Operating mechanism | Spring mechanism; Permanent magnetic actuator | |
| 10 | Operational power supply | V | DC:110,220; AC:110,220 |
| 11 | Overall dimension(Width*Depth*Height) | mm | 1400(1200)x2800x2600 1680x2800(3100)x2800 |
| 12 | Weight | KG | 1800 |
