Voltage 12kV Electrical Low Tension Switchgear Power Distribution Cabinet GCK

Product Details:
Place of Origin: China
Model Number: GCK
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200-20000/piece
Packaging Details: wooden case
Delivery Time: 30 days
Payment Terms: LC T/T
Supply Ability: 5000 piece/year
Contact Now

Detail Information

Model No: HGN17-40.5 Certification: CE,ISO,UL,SABS
Standard: IEC/GB Rated Current:: 630A
Rated Voltage: 12kV Type: Low Voltage
Frequency: 50/60HZ
High Light:

low tension switchgear


low voltage metal clad switchgear

Product Description


HengFengYou Factory Supply power distribution cabinet GCK Low Voltage

Electrical Switchgear


 Product overview

GCK Low-Voltage Withdrawable Switchgear.The device is suitable for power distribution and

control of low-voltage power distribution systems such as power distribution in petrochemical

substations, high-rise buildings of factories and mining enterprises, and computer conversion

and distribution of capacitor compensation in the motor control center.The device conforms to

IEC439-1 "low-voltage complete switchgear and control equipment", GB7251" low-voltage

complete switchgear and control equipment ", ZBK36001" low-voltage draw-out complete

switchgear "and other standards.

Conditions of use
1. the ambient air temperature is not higher than +40℃,no less than 5℃.shall not be higher

than the average temperature in 23 hours +35℃.when more than,need to reduce running

according to actual situation.
2. The altitude should not exceed 2000 meters
3. When the device is installed, the inclination of the vertical surface is not more than 5 degrees,

and the whole group of cabinets is relatively flat (in accordance with GBJ232-82).
4. The device should be installed in a place where there is no severe vibration and impact and

there is insufficient corrosion of the electrical components.



No. Item Unit Data
  Ratedvoltage V 400,690
2 Ratedinsulationvoltage V 660,1000
3 Ratedcurrent A 400~6300
4 Ratedcurrentofdraweraccessories A 250,400,630
5 Ratedshort-circuitcurrent KA 20~120
6 Insulation:Powerfrequencywithstandvoltage V Maincircuit:2500;Auxiliarycircuit2000
7 Protectionclass   IP4X
8 Operatingmechanism   Manualmechanism;Electricmechanism
9 Operationalpowersupply V DC:110,220;AC:110,220
10 Overalldimension(Width*Depth*Height) mm 600(800,1000)x800(1000)x2200
11 Weight KG 300~1000

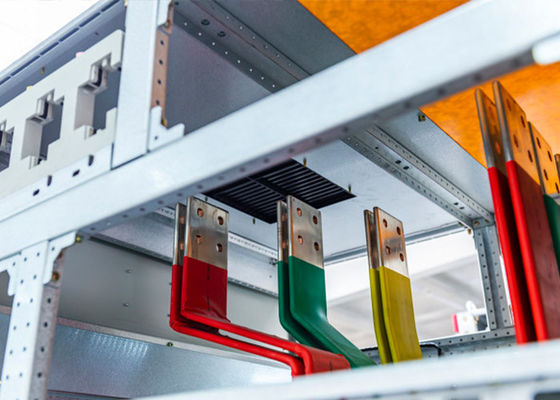

             Voltage 12kV Electrical Low Tension Switchgear Power Distribution Cabinet GCK 0


Product characteristics


1. Metal-enclosed and separately arranged, with high protection Category

2. Enclosure with Front -Cabinet protection and back-cabinet protection, the Board can be arranged and fixed along with the wall to save the spaces

3. Protection Category of enclosure reaches to IP4X,

4. Elec.Line Cabinet with full spaces for mount and arrange in-coming and out-going lines for the convenience of Fixing, protecting and maintaining


Points to note


​1)Ambient temperature-10*C-+40*C;
2)Altitude: high voltage ≤1000Meter, low voltage ≤2500Meter
(technical department will design specially if exceeds);
3)Relative humidity:≤85%
4)Seismic intensity:≤magnitude 8;
5)Apply to the places have no fire,no explosion danger, no serious
pollution,no chemical corrosion and no violent vibration.


Voltage 12kV Electrical Low Tension Switchgear Power Distribution Cabinet GCK 1

Company profile


Qingdao Hengfengyou Electrical Engineering Co. , Ltd. is one of the large-scale electric

complete sets of manufacturers in China, specializing in oil-immersed transformers, dry-type

transformers, high-voltage Cabinets, low-voltage cabinets and substation manufacturing specialized

electrical enterprises. The company is located in the beautiful coastal city of china-qingdao.

The company has a registered capital of 10 million yuan, 20 senior technical personnel, more than

500 employees, and a sound sales and service system, annual output value of US $1 billion, the

products sell well at home and abroad.

Voltage 12kV Electrical Low Tension Switchgear Power Distribution Cabinet GCK 2
