|Place of Origin:||China|
|Certification:||ISO IEC CB COC KEMA SNI SABS CCC|
|Model Number:||GGD, GCS|
Payment & Shipping Terms:
|Minimum Order Quantity:||1|
|Packaging Details:||wooden case|
|Delivery Time:||30 days|
|Payment Terms:||LC T/T|
|Supply Ability:||5000 piece/year|
|Model Number:||GGD. GCS||Type:||Metal Clad|
|Rated Frequency:||AC 50Hz (60Hz)||Rated Current(A):||630, 1250, 1600, 2500, 3510, 4000|
|Customized:||OEM/ODM Order Acceptable||Application:||Power Transmission Or Distribution|
|Product Name:||Electrical Kyn28 12 Switchgear 11kv||Rated Voltage:||3KV, 7.2KV, 12KV Optional|
|Comply Standards:||DL/T404, IEC298,GB3906|
low tension switchgear,
low voltage metal clad switchgear

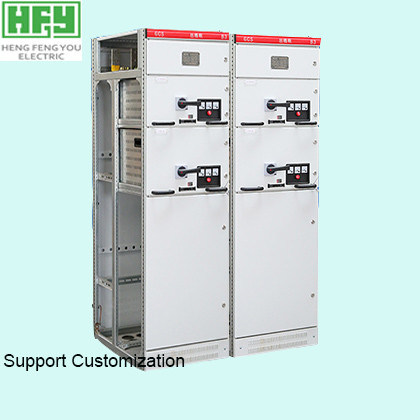

GCS / GCK Automatic Electrical Distribution Panels Low Voltage Draweable Switchgear Cabinet
Qingdao HengFengYou Electrical Engineering Co. LTD., aka HFY Electrical Engineering, is a Chinese leading manufacturer and supplier in electricity transmission and distribution industry.
With 30 years of competition and development in China, by now HFY Electrical Engineering has 6 wholly-owned subsidiaries, 50 senior technicians, 350 employees, established sales network and customer service team. From research and development, manufacturing to the final project engineering, HFY provides better solution to clients than others.
Our main market covers medium voltage, high voltage and ultra-high voltage power distribution.
Distribution cabinet GCS draweable low voltage electrical Unit Switchgear Manufacturer
Type GCS low-voltage withdrawable type switchgear is a blend of the other advantages of low voltage products and the development of advanced products, applicable to power plants, petrochemical industry, metallurgy, telecommunications, light industry, textile, high-rise buildings and other civil and industrial and mining enterprises of power distribution system, in large power plants, petrochemical, telecommunication system, etc. A high degree of automation, and computer interface, as the motor centralized-control hair, power supply system of power distribution, low-voltage distribution of reactive power compensation device.
GCS switchgear is suitable for power supply and distribution systems with AC 50Hz, rated working voltage 690V or less and rated current of main bus up to 4000A. The product adopts 8MF open section steel, which makes the frame assembly flexible and convenient, and can form standard units such as protection, operation, conversion, control, regulation, measurement and indication. The maximum number of functional units of a single drawer cabinet can be up to 22, which fully takes into account the need of centralized control of motors in large single capacity power plants, petrochemical systems and other industries. The specific heat capacity of the adapter is high, which reduces the additional temperature rise caused by the temperature rise of the adapter to the connectors, cables and partitions. The parallel arrangement of buses makes the equipment have good dynamic and thermal stability, can withstand large short-circuit current impact, and has the characteristics of high insulation strength, good self-extinguishing performance, unique structure and strong adaptability to the bus. The corresponding protection level can be selected according to the different requirements of the working environment.
Suitable Altitude: 1000m ~ 4000m
Suitable Temperature: -40℃ ~ +45℃
Relative Humidity: Daily mean ≤95%, monthly mean ≤90%
Gradation of Earthquake Damage: ≤ Level 8
