Electrical Distribution Board Withdrawable GCS Low Voltage switchgear panel



Product Description

1. GCS is a modularized and multi-function low voltage distributing cabinet, used in the low voltage distribution and motor control system where high reliability is needed in areas like mtallurgy, petroleum, chemical industry, mining enterprise and foundation construction etc.

2. GCS adopts the cabinet body with flexible height: Multiple types and specifications of components can be installed according to user's needs or as the condition requires. Feeding units of all types can be installed in the same row and the same cabinet.

3. GCS has an entire series of low voltage switch cabinet, can meet user's omni bearing requirements, and is applicable to all 4000A low voltage system.

4. GCS has an all assembled structure, special section bar structure and connection mode, and can meet the requirements of a rigorous construction time limit and power continuity.

5. GCS can provide high-leveled reliability and safety, humanized design, which reinforced the protection of personal and equipment safty.

Electrical Distribution Board Withdrawable GCS Low Voltage switchgear panel 0



Rated isolation voltage To 1000V
Rated operational voltage To 600V
Rated frequency 50 /60 Hz
Rated impact withstand voltage 8 kV
Rated voltage of auxiliary circuit AC380, 220V,DC 220V
Over voltage degree III
Pollution degree 3
Rated current 4000A
Horizontal busbar rated current 4000A
Vertival busbar rated current

2000, 1000A



Working Environment

1. Indoor altitude above sea level: Maximum installation altitude: 2000m

2. Ambient air temperature: -5℃~+40℃ and the average temperature should not

exceed +35℃ in 24h

3. Relative humidity should not exceed 50% at max temperature +40℃. Higher

relative humidity is allowed at lower temperature. Ex. 90% at +20℃. But in view of

the temperature change, it is possible that moderate dews will produce casually.

4. No fire, explosion danger, serious pollution, chemical corrosion and severe vibration

5. Installation gradient not exceed 5°

6. This product is suitable for the following temperature transportation storage: -25 ~+55 24h, in a short period of time (no more than 24hours) not more than+70℃.

Characteristics

This series of products with high breaking capacity, good dynamic stability, advanced and reasonable structure, electrical program of practical, series, strong versatility, various schemes of unit combination, a cabinet contained many circuits, save the area , beautiful appearance, high level protection, safe and reliable, convenient maintenance etc.

It accords with the standards IEC439 NEMA ICS2-322 as well as the GB7251-87 “Low voltage complete switch device ” national standards and ZBK36001-89 "low voltage withdraw type complete switch device” professional standards"

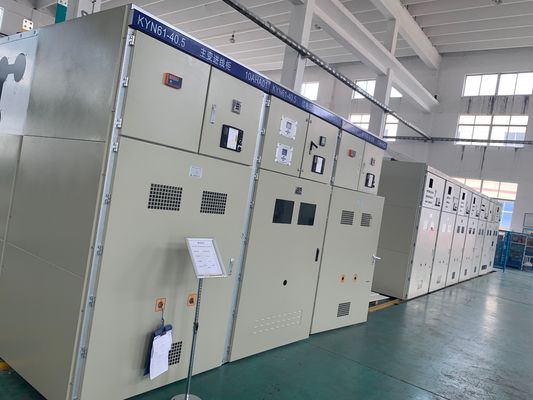

Electrical Distribution Board Withdrawable GCS Low Voltage switchgear panel 1

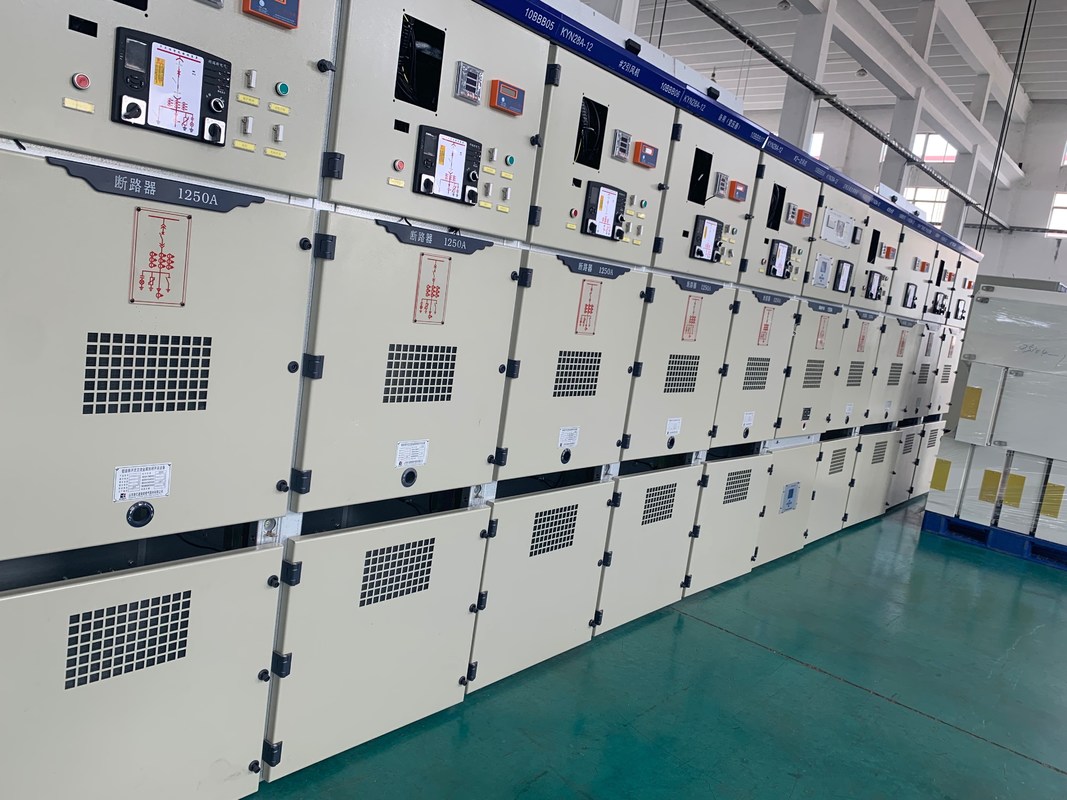

Electrical Distribution Board Withdrawable GCS Low Voltage switchgear panel 2
