Drawout Low Voltage Switchgear Outdoor Electrical Waterproof AC Metal Switchgear

Product Details:
Place of Origin: China
Model Number: GCS, GCK, GGD, MNS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200-20000/piece
Packaging Details: wooden case
Delivery Time: 30 days
Payment Terms: LC T/T
Supply Ability: 5000 piece/year
Contact Now

Detail Information

Model Number: GCS Type: Metal Clad
Rated Frequency: AC 50Hz (60Hz) Rated Current(A): 630, 1250, 1600, 2500, 3510, 4000
Customized: OEM/ODM Order Acceptable Application: Power Transmission Or Distribution
Product Name: Electrical Kyn28 12 Switchgear 11kv Rated Voltage: 3KV, 7.2KV, 12KV Optional
Comply Standards: DL/T404, IEC298,GB3906
High Light:

low tension switchgear


low voltage metal clad switchgear

Product Description

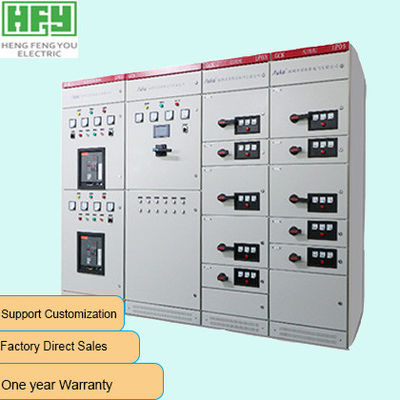

Electrical Distribution Board Withdrawable GCK Low Voltage switchgear panel


Product Description

Engaged in manufacturing energy-saving and environmental-protecting products, Ai Power developed series of high qualified switchgears, which include P/V-12 series switchgears, KYN series switchgears, GGD, GCK, GCS, MNS switchgears, SEN Plus switchgears, MD190 and Safering gas insulated switchgears. All the products are manufactured with the advanced technologies and equipments from abroad. Our switchgears have passed the type test by the State High Voltage Apparatus Quality Supervision and Examination Center, and got the China Compulsory Certifications. All the products are universally used in distribution system of national grid, infrastructure projects, transportation construction and residential areas, etc.

Structure Features & Specification:

Metal-clad enclosed switchgear, with handcart
Air insulation
Separate earthing, 4 separate compartments: busbar compartment, handcart compartment, cable compartment, meters compartment.
Modular structure, plug electric connection
Perfect and reliable interlocks and pressure relief facilities.
Intelligentized system, less maintenance.



no name unit data
1 rated voltage kv 3, 6,10
2 ratd current A 630,1000,1250,1600,2000,2500,3150
3 rated frequency HZ 50
4 rated short circuit drop out current(effective value) KA 20.25; 31.5; 40
5 rated thermo stable current( peak value) KA 20.25; 31.5; 40
6 rated dynamic current( peak value) KA 40; 80; 100
7 rated power frequency withsand voltage(1min) KV inter-electrode and earth 42; inter -fractures 48
8 ratd thunder impulse withstand voltage KV inter-electrode and earth 75; inter -fractures 85
9 rated thermo stable time KV 4
10 degree of protection   IP2X
11 externam dimension(WXDXH) MM 1100x1200x2650( can design according to demand)


Rated isolation voltage To 1000V
Rated operational voltage To 600V
Rated frequency 50 /60 Hz
Rated impact withstand voltage 8 kV
Rated voltage of auxiliary circuit AC380, 220V,DC 220V
Over voltage degree III
Pollution degree 3
Rated current 4000A
Horizontal busbar rated current 4000A
Vertival busbar rated current

2000, 1000A


Order information


  • Schematic diagram of main circuit or electrical schematic diagram
  • Arrangement and layout
  • Model, specification and quantity of main components.
  • Incoming and outgoing wire method and cable specification, etc
  • If bus connection is required between the devices, bus connection and height from the ground shall be provided











Working Environment

1. Indoor altitude above sea level: Maximum installation altitude: 2000m

2. Ambient air temperature: -5℃~+40℃ and the average temperature should not

exceed +35℃ in 24h

3. Relative humidity should not exceed 50% at max temperature +40℃. Higher

relative humidity is allowed at lower temperature. Ex. 90% at +20℃. But in view of

the temperature change, it is possible that moderate dews will produce casually.

4. No fire, explosion danger, serious pollution, chemical corrosion and severe vibration

5. Installation gradient not exceed 5°

6. This product is suitable for the following temperature transportation storage: -25 ~+55 24h, in a short period of time (no more than 24hours) not more than+70℃.
