Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HENGFENGYOU |
| Certification: | ISO IEC CB COC KEMA SNI SABS CCC |
| Model Number: | SCB-26 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 |
| Price: | 200-20000/piece |
| Packaging Details: | wooden case |
| Delivery Time: | 30 days |
| Payment Terms: | LC T/T |
| Supply Ability: | 5000 piece/year |
|
Detail Information |
|||
| Material: | PC+Metal, Aluminum Alloy, ABS/PC, Bakelite, Pc | Product Name: | Low Voltage Switchgear, Switchgear, |
|---|---|---|---|
| Application: | Electric Power Transmission, Industrial, Power Distribution, Distribution Line, Control | Standard: | IEC60076, IEC, GB1094-1996; JB/T10088-2004; GB/T6451-2008; EQV, CNS, EC/ GB/T6451-2008 |
| Color: | Customer Request, Gray, As Required, Can Be Custom-made, White/OEM | Rated Frequency: | 50/60Hz, 60Hz |
| High Light: | low tension switchgear,low voltage metal clad switchgear |
||
Product Description

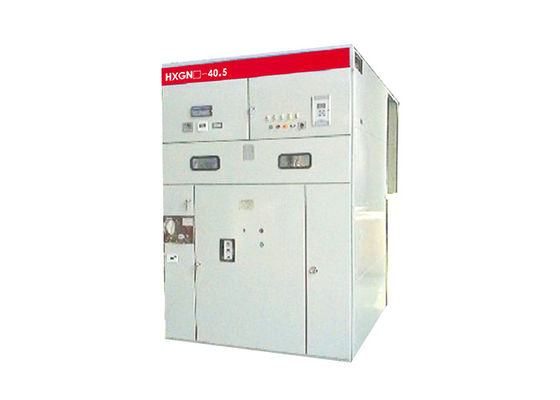

Custom Color Low Voltage Switchgear For Electric Power Transmission IEC60076
Our Breaker Integrated Transformers (BIT) integrates a traditionally separate Molded Case Circuit Breaker (MCCB) and a low-voltage dry-type distribution transformer.
GCS switchgear is suitable for power supply and distribution systems with AC 50Hz, rated working voltage 690V or less and rated current of main bus up to 4,000A. It adopts 8MF open section steel, which makes the frame assembly flexible and convenient. The maximum number of functional units of a single drawer cabinet is 22, which fully takes into account the need of centralized control of motors in large single capacity power plants, petrochemical systems and other industries.
The specific heat capacity of the adapter is high, which reduces the temperature to the connectors, cables and partitions. The parallel arrangement of buses makes itself with dynamic and thermal stability. It can withstand large short-circuit current impact, and has high insulation strength, good self-extinguishing performance, unique structure and strong adaptability. The protection level can be selected according to the requirements of the working environment.
