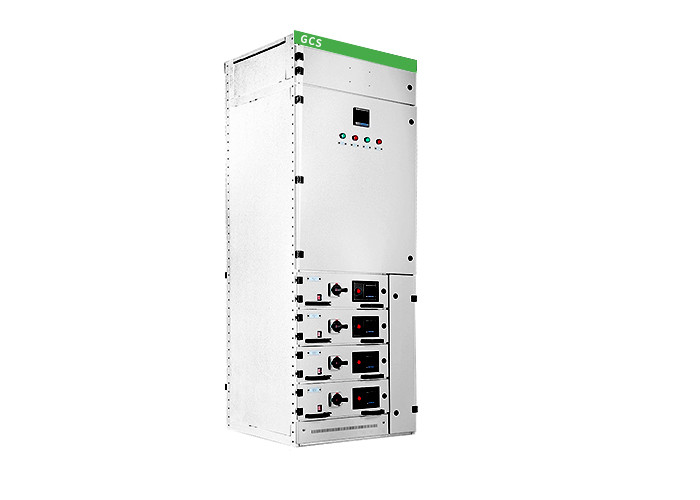

50 / 60HZ Frequency GCS Low Voltage Switchgear Withdrawable Switchgear 4000A Rated Current

Product Details:
Place of Origin: China
Model Number: GCS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200-20000/piece
Packaging Details: wooden case
Delivery Time: 30 days
Payment Terms: LC T/T
Supply Ability: 5000 piece/year
Contact Now

Detail Information

Model Number: GCS Voltage: 380V/400V/600V
Rated Current: 4000A Environment Temperature: -5 C~+40 C
Frequency: 50/60HZ Isolation Voltage: 660(1000)
Certification: Test Report, CE, CCC, ISO9001
High Light:

low tension switchgear


low voltage metal clad switchgear

Product Description

Electrical equipment supplies GCS low voltage withdrawable switchage

voltage switchgear
 Product overview

GCK Low-Voltage Withdrawable Switchgear.The device is suitable for power distribution

and control of low-voltage power distribution systems such as power distribution in

petrochemical substations, high-rise buildings of factories and mining enterprises, and

computer conversion and distribution of capacitor compensation in the motor control

center.The device conforms to IEC439-1 "low-voltage complete switchgear and control

equipment", GB7251" low-voltage complete switchgear and control equipment ",

ZBK36001" low-voltage draw-out complete switchgear "and other standards.



Conditions of use

1. the ambient air temperature is not higher than +40℃,no less than 5℃.shall not be higher

than the average temperature in 23 hours +35℃.when more than,need to reduce running

according to actual situation.
2. The altitude should not exceed 2000 meters
3. When the device is installed, the inclination of the vertical surface is not more than 5

degrees, and the whole group of cabinets is relatively flat (in accordance with GBJ232-82).
4. The device should be installed in a place where there is no severe vibration and impact

and there is insufficient corrosion of the electrical components.


GGD Power Distribution Cabinet LV Electrical Switchgea

Item Unit Parameters
RatedVoltage V 400
RatedInsulationVoltage A 690
Ratedfrequency Hz 50
Ratedcurrent A 630-5000
Ratedshort-circuitwithstandcurrent KA 30,50,80
Ratedwithstandcurrent(Peak) KA 63,105,176
ProtectionGrade   Housing:lP3X,IP4X
powerfrequencywithstandvoltage V/s Jan-00


50 / 60HZ Frequency GCS Low Voltage Switchgear Withdrawable Switchgear 4000A Rated Current 0


1, The main frame is made of 8MF or C type material, the frame is assembled and partially

welded. Modular holes are installed on the main frame E=20mm(or 25mm).

2, The functional rooms of the device are strictly separated, the compartment is mainly divided

into functional unit room, bus room, cable room, the function of each unit is relatively independent.

3, The device adopts horizontal main bus on the top of the cabinet or behind the cabinet, and

is flexibly selected according to the user's situation (outgoing mode).


 50 / 60HZ Frequency GCS Low Voltage Switchgear Withdrawable Switchgear 4000A Rated Current 1

Company profile
Qingdao Hengfengyou Electrical Engineering Co. , Ltd. is one of the large-scale electric
complete sets of manufacturers in China, specializing in oil-immersed transformers, dry-type
transformers, high-voltage Cabinets, low-voltage cabinets and substation manufacturing specialized
electrical enterprises. The company is located in the beautiful coastal city of china-qingdao.
The company has a registered capital of 10 million yuan, 20 senior technical personnel, more than
500 employees, and a sound sales and service system, annual output value of US $1 billion, the
products sell well at home and abroad.
