3 Phase Electrical Power Transformer Oil Immersed Transformer High Mechanical Strength

Product Details:
Place of Origin: China
Model Number: S9,S11,S13,S15
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200-200000/piece
Packaging Details: wood
Delivery Time: 15 DAYS
Payment Terms: T/T
Supply Ability: 5000 pieces/year
Contact Now

Detail Information

Usage: Power,Distribution Transformer Phase: Three
Frequency: 50/60Hz Rated Capacity: 30-3000kva
Type: Oil Type Immersed Current Transformer Winding Material: Cooper;aluminum
Name: Oil Immersed Distribusion Transformer
High Light:

industrial power transformer


power distribution transformer

Product Description

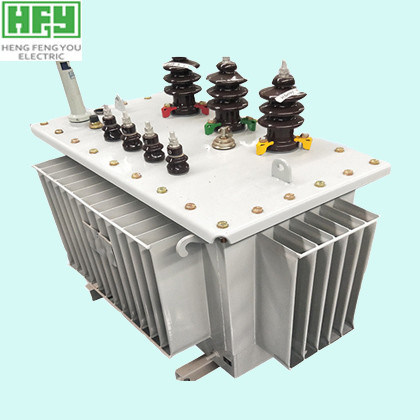

3 Phase Electrical Power Transformer oil immersed transformer


Product introduction

S11-33kv oil immersed distribution transformer is widely used in industrial and mining enterprises, agriculture and civil buildings, and it’s also suitable for places with many oil and chemical substances in petroleum and chemical industries. The low-voltage winding with the capacity of 630 ~ 2000kVA adopts the tubular or spiral structure, with high mechanical strength, balanced ampere turn distribution and good short-circuit resistance. The positioning structure is added to the transformer body to avoid displacement during transportation. At the same time, all fasteners are equipped with fastening nuts to ensure that the fasteners won’t loose during long-term operation of the product. The product is free of maintenance and long-term operation.

The coil core fully-sealed distribution transformer is a new generation of low noise and low loss transformer developed in recent years. Its core has no joints, which greatly reduces the no-load loss and no-load current, and makes the no-load current reduced by 60%~80%, and the high and low voltage coils are continuously wound on the stem, and the windings are tight and the concentricity is good, which further enhances the anti-theft performance of the product. The noise drops by more than 10 decibels. The temperature rise is 16-20K lower. Since the iron core (cross-section is purely circular) is continuously wound, the orientation of the silicon steel sheet is fully utilized, and the no-load loss is reduced by 20% to 30%.

On the basis of the S9 series, the S11 series products have an average no-load loss of 20%. The no-load current is 70-85% lower than the S9. The temperature rise is reduced by 10K, and the service life is more than doubled. Even under the load of 20%. it can still be used for a long time. The running noise is reduced by 2-4 decibels. High and low voltage windings, body assembly, fuel tank structure, protection device, etc. are similar to S9 series transformers. It also adopts non-suspension structure, adopts vacuum drying, vacuum oil filtering and oil filling process, adopts corrugated oil tank, and has no oil storage cabinet and other structures.



Structural Features


1. Iron core

Is made of high-quality grain oriented cold-rolled silicon steel sheet, with full oblique and holeless binding structure. The iron core is of multi-stage stepped shape, with three or five joints, low loss and low noise. The rolled iron core is directly wound by special equipment, without joints and angle weight, reducing magnetic resistance and low loss. The amorphous alloy transformer core is a new kind of higher quality iron core material, with an average drop of 72% for low air loss and 50% for no-load current compared with the traditional silicon steel sheet.

2. Coil

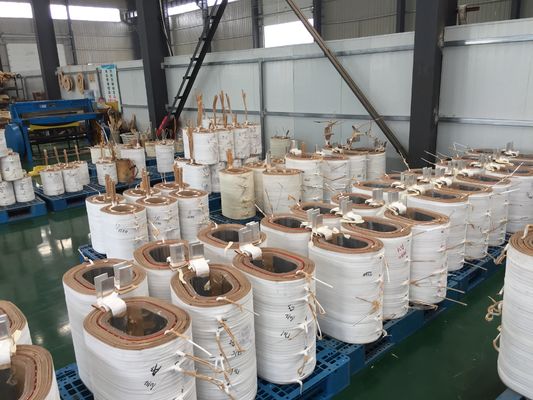

It is made of high-quality QQ acetal enamelled round copper wire and flat copper coin drawn by oxygen-free copper rod. Coil forms include cylinder type, continuous type, new spiral type, split type, etc with sufficient electrical strength, mechanical strength and heat dissipation capacity. In order to increase the short-circuit resistance of transformer, higher quality self-adhesive transposed conductor can be used. The coil is made of self-adhesive acetal enamelled flat wire. After being wound into a coil, the enamelled flat wires are mutually bonded to form a rigid coil, which can withstand greater bending stress, thus enhancing the short-circuit resistance of the transformer. The biggest characteristic of the self-adhesive transposed conductor is that it can reduce the loss of the transformer. The multi-split conductor and transposition can greatly reduce the eddy current loss and circulation loss, reducing the temperature rise of the hot spot of the winding, and make the temperature distribution of the whole winding more evenly.

3. Oil tank

It is welded by high-quality steel plates elliptical or rectangular structures. The radiator elements are chip type radiator, expansion radiator or corrugated oil tank. The oil tank sealing is tested reliably in the factory. It is sprayed with three times of primer and one time of finish paint inside and outside. The product is salt fog proof, damp heat proof and fungus proof, which can meet the special requirements of metallurgy, petrochemical system and wet and polluted areas. It is beautiful in appearance and reliable in operation.



· Service conditions

1. The maximum ambient air temperature shall not exceed 40 ℃, and the minimum shall not below - 25 ℃;

2. The altitude shall not exceed 1000m. If special customized transformers and low-voltage components are used, the altitude can reach 4000m;

3. The vertical inclination is no more than 5 °, and no violent vibration and impact;

4. The air humidity is not more than 90% (+ 25 ℃);

5. No gas and conductive dust that will seriously affect the insulation of transformer, no explosion hazard and corrosion of electrical components;

6. Outdoor wind speed shall not exceed 35m / s.

If service conditions beyond the above, specially customized product is available



Note: Due to continuous product improvement, the dimensions provided in this sample are for reference only. If necessary, our company can design and produce according to user requirements. Please contact the company in time.









No Load


Impendence Voltage


Weight Dimension(mm)





No Load Load (75℃) (Kg) (L×W×H)











11 10.510 6.3 6


























Dyn11 Yyn0

33 630/600 1.5










410 920×850×830
50 43 910/870 1.2 520 1040×780×870
63 50 1090/1040 1.1 570 1010×810×880
80 60 1310/1250 1.0 640 1060×830×910
100 75 1580/1500 0.9 750 1140×830×860
125 80 1890/1800 0.8 830 1110×880×950
160 100 2310/2200 0.6 940 1130×880×1000
200 120 2730/2600 0.6 1090 1240×900×1020
250 140 3200/3050 0.6 1250 1290×900×1070
315 170 3830/3650 0.5







1470 1380×840×1110
400 200 4520/4300 0.5 1710 1420×920×1250
500 240 5410/5150 0.5 1990 1360×1040×1180
630 320 6200 0.3 2390 1530×1120×1310
800 360 7500 0.3 2760 1880×1210×1360
1000 450 10300 0.3 3240 2040×1520×1360
1250 530 12000 0.2 3820 2140×1520×1430
1600 630 14500 0.2 4620 2260×1540×1500


Company introduction

Qingdao Hengfengyou group specializes in the development research, manufacturing and service of power transformers for 30 years. At present, the company has 10 senior engineers, 30 senior technicians, more than 200 employees, with an annual output value of 50 million US dollars and an annual production capacity of more than 10 million kVA. Hengfengyou is a large-scale enterprise in the field of power transmission and distribution equipment manufacturing. With high-quality products and perfect service system, It now provides reliable power transformer products and services for more than 50 countries and regions around the world. It has established a good reputation and image of "HFY" brand in the global market, and won extensive trust and praise from customers.


Our company research and development production of S11 - M series fully enclosed oil-immersed power transformer has the advantages of low loss, low noise, high efficiency, can obtain good energy saving effect and reduce pollution. Totally enclosed compared with ordinary oil-immersed transformer, cancelled the oil storage tank, the oil volume change by corrugated tank elastic corrugated chips to automatically adjust the compensation, transformer isolated from the rest of the air, to prevent and slow the deterioration of oil and insulation aging, improve operational reliability, running free maintenance.


· Order instructions:

1. The customer needs provide main parameters of the transformer (input and output voltage, capacity, loss, etc.)

2. Other customer requirements
