Scb10 Dry Type China Electrical Power Transformer for Engineering Substation Project

Product Details:
Place of Origin: China
Brand Name: HENGFENGYOU
Certification: ISO IEC CB COC KEMA SNI SABS CCC
Model Number: SCB series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200-200000/piece
Packaging Details: wooden case package
Delivery Time: 15 DAYS
Payment Terms: LC T/T
Supply Ability: 5000 pieces/year
Contact Now

Detail Information
Name: Power Distribution Transformer Feature: Superior Performance, Product Safety, Reliability, Environmental Protection
Brand: Power Distribution Transformer Standard: CE,ISO,UL,SABS,3C， IEC60076-11 ISO9001 ISO14001 KEMA CE
Model Number:: Dry Type Transformer
High Light:

cast resin dry type transformer

,

dry cast resin transformers

Product Description

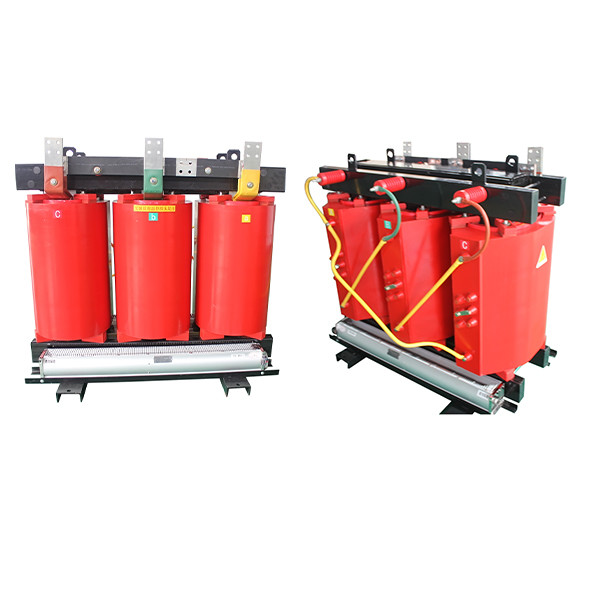

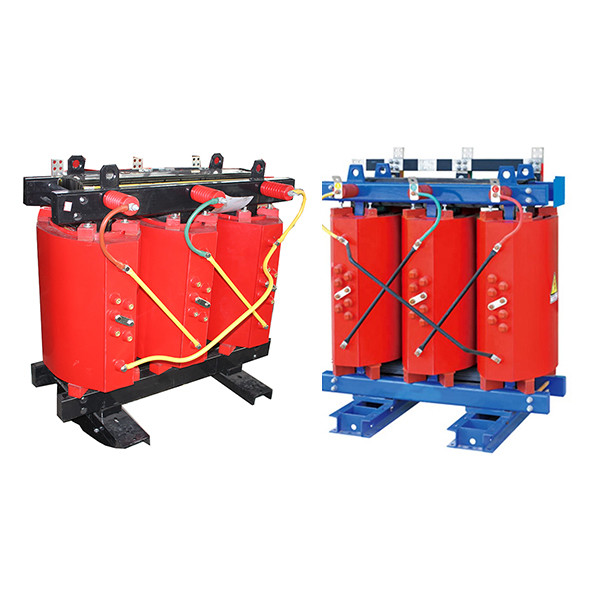

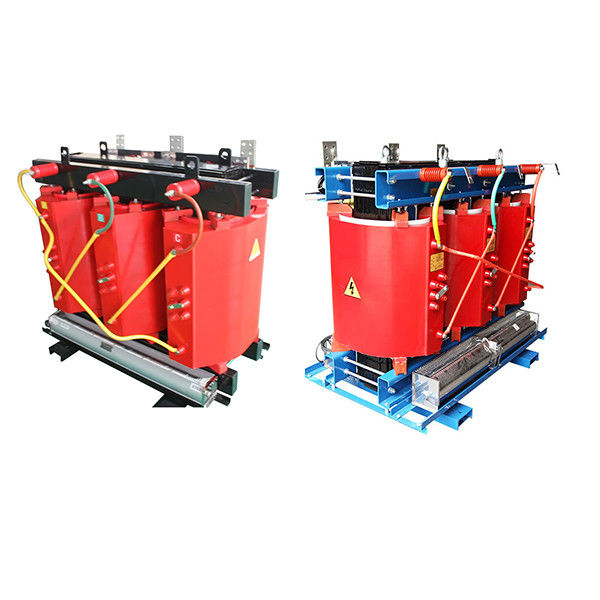

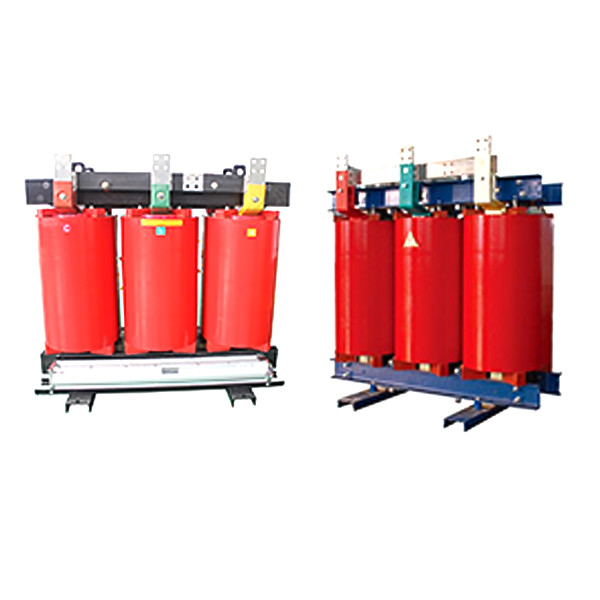

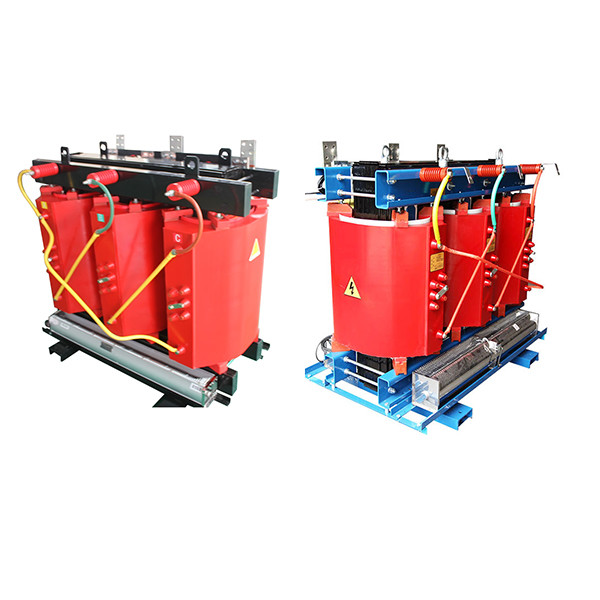

Scb10 Dry Type China Electrical Power Transformer for Engineering Substation Project

SCB10 epoxy resin dry-type transformer transformers is made of glass fiber enhanced thin insulation resin which is casting in vacuum to form a solid whole transformer after curing. It is a dry-type transformer that has the following characteristics: High mechanical strength, small local discharge, flame retardant, explosion-proof, moisture-proof, environmental protection, anti-temperature change, no cracking, safe and reliable operation, small size, light weight, convenient installation, maintenance free. It is specially applicable for the power plant, high building, commercial center theater, hospital, lab, museum, oil drill platform, ship, port, station, airport, oil chemical plant, underground railway, tunnel, mine well and other important places.




Structural Features

  • The iron core is made of high-quality cold-rolled oriented silicon steel sheet, the surface is specially treated with protective resin, and full-inclined seam lamination structure is adopted.
  • The low-voltage coil is of foil winding structuremade of high-quality steel foil. The high-voltage coil is of layer structure formed by vacuum epoxy casting technique. Lowpartial discharge in similar product catalog;
  • This model features high mechanical strength, strong short-circuit resistance, good dust-proof and anti-fouling performance. Its service life is longer than other dry transformer.
  • The product’s beautiful stainless steel shell is durable and can provide better protection for the electrified parts of the transformer. Itworks well outdoors.
  • With excellent moisture-proof and corrosion-resistant performance, the product is safe, fire-proof and pollution-free.It’s especially suitable for working in extremely harsh environmental conditions, and can restart without drytreatment after shutdown.
  • Good heat dissipation performance and strong overload capacity enables it operate with higher capacitywhen forced air cooling.
Rated power (kVA) High voltage
(kV)		 H.V.Tap
(kVA)		 Low
Voltage
(kV)		 Vector group
Short circuit impedance		 No-load loss
(W)		 On-load loss
(W)		 No-load
Current
(%)		 Insulation
class		 Noise
(dB)
SC(B)9 SC(B)10 SC(B)9 SC(B)10
30 6
6.3
10
10.5
11		 ±5%

+2×2.5%		 0.4 Yyn0
Dyn11		 4 220 1901 750 710 2.3 F 40
50 310 270 1060 1000 2.2 40
80 420 370 1460 1380 1.7 40
100 450 400 1670 1570 1.7 40
125 530 470 1960 1850 1.5 41
160 610 540 2250 2130 1.3 42
200 700 620 2680 2530 1.3 42
250 810 720 2920 2760 1.1 44
315 990 880 3670 3470 1.1 46
400 1100 980 4220 3990 1.1 46
500 1310 1160 5170 4880 0.9 47
630 1510 1340 6220 5880 0.9 47
630 6 1460 1300 6310 5960 0.9 47
800 1710 1520 7360 6960 0.9 48
1000 1990 1770 8610 8130 0.9 48
1250 2350 2090 10260 9690 0.9 49
1600 2760 2450 12400 11730 0.9 50
2000 3400 3050 15300 14450 0.7 52
2500 4000 3600 18180 17170 0.7 55





Scb10 Dry Type China Electrical Power Transformer for Engineering Substation Project 0Scb10 Dry Type China Electrical Power Transformer for Engineering Substation Project 1
