Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HENGFENGYOU |
| Certification: | ISO IEC CB COC KEMA SNI SABS CCC |
| Model Number: | SCBH15 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 |
| Price: | 200-200000/piece |
| Packaging Details: | wooden case |
| Delivery Time: | 15 DAYS |
| Payment Terms: | LC T/T |
| Supply Ability: | 5000 pieces/year |
|
Detail Information |
|||
| Material: | Aluminum Or Copper | Usage: | Single-phase Transformer, Rectifier Transformer, Combined Transformer, Power Transformer, Distribution Transformer |
|---|---|---|---|
| Capacity: | 100.125.160.200.250.315.400.500.630.800.1000 | HS Code: | 85043190 |
| Product Name: | Dry Type Transformer | Certificate: | CE,ISO,CQC,SABS,3C |
| High Light: | cast resin dry type transformer,dry cast resin transformers |
||
Product Description

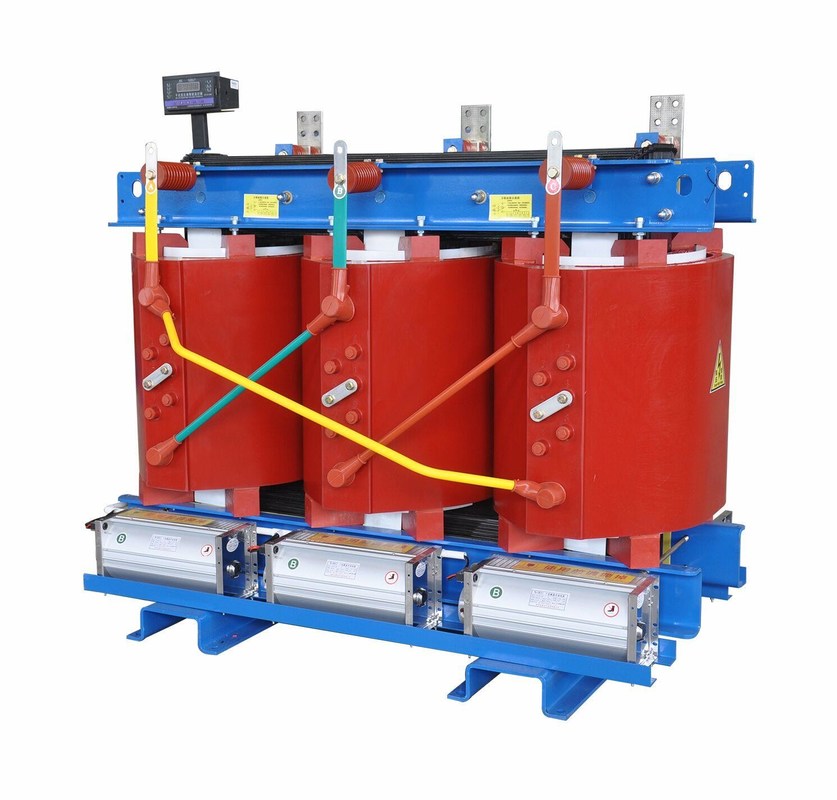

SCB Dry Type power distribution transformer
Product Overview:
The reel core fully sealed distribution transformer is a new generation of low noise and low loss transformer developed in recent years.
Its iron core has no joint, greatly reduces the no-load loss and no-load current, reduces the no-load current by 60%~80%, the high and low coils are continuously coiled on the core column, the winding is tight, the concentricity is good, and the product is enhanced more.
Anti-theft performance. The noise decreased by more than 10 decibels.
The temperature rise is low 16-20K. Because of the continuous winding of iron core (cross section is pure circle), the orientation loss of silicon steel sheet is fully utilized, and the no-load loss is reduced by 20%~30%.
The low voltage winding with capacity in the 630~2500kVA enclosure is made of cylinder or spiral structure with high mechanical strength and balanced ampere distribution. The product has good short circuit resistance.
The positioning structure is added to the body so that it does not produce displacement during the transportation process, and all fasteners are equipped with fastener nuts to ensure that the fasteners are not loose during the long run of the product and meet the requirements of the non
core lifting.
The product surface is painted, primed and topcoat after degreasing, rust removing and phosphating. It can meet the special requirements of metallurgy, petrochemical system and wet dirty area.This series of products has beautiful appearance, small size, and can reduce the
installation area. It is an ideal free maintenance quality product.
Functions & Features
1.Safe, fire-retardant, pollution-free, can be installed directly in the load center.
2.Maintenance-free, easy to install and integrated operation cost is low.
3.It has good moisture-proof performance and can operate normally under 100% humidity.
4.Low loss, low partial discharge, low noise, cooling ability, forced air cooling conditions can be 150% rated load operation.
5.It is equipped with perfect temperature protection control system to provide reliable guarantee for transformer safe operation.
Technical data
| Type |
Rated capacity (KVA) |
Connection groupgrade |
Voltagecombination(KV) |
Noloadloss (W) |
loadloss(W) DyYy |
No-load current(%) |
Short-circuit resistance(%) |
||
| HighvoltageTappingrang | eLowvoltage | ||||||||
| SC12-30 | 30 |
YynO . Dyn11 |
10 6.3 6 |
土5% +2x2.5% +x2.5% |
0.4 | 150 | 710 | 2.3 | 4.0 |
| SC12-50 | 50 | 215 | 1000 | 2.2 | |||||
| SC12-80 | 80 | 295 | 1380 | 1.7 | |||||
| SC12-100 | 100 | 320 | 1570 | 1.7 | |||||
| SC12-125 | 125 | 375 | 1850 | 1.5 | |||||
| SC(B)12-160 | 160 | 430 | 2130 | 1.5 | |||||
| SC(B)12-200 | 200 | 495 | 2530 | 1.3 | |||||
| SC(B)12-250 | 250 | 575 | 2760 | 1.3 | |||||
| SC(B)12-315 | 315 | 705 | 3470 | 1.1 | |||||
| SC(B)12--400 | 400 | 785 | 3990 | 1.1 | |||||
| SC(B)12-500 | 500 | 930 | 4880 | 1.1 | |||||
| SC(B)12-630 | 630 | 1070 | 5880 | 0.9 | |||||
| SC(B)12-630 | 630 | 1040 | 5960 | 0.9 | |||||
| SC(B)12-800 | 800 | 1215 | 6960 | 0.9 | |||||
| SC(B)12-1000 | 1000 | 1415 | 8130 | 0.9 | |||||
| SC(B)12-1250 | 1250 | 1670 | 9690 | 0.9 | |||||
| SC(B)12-1600 | 1600 | 1960 | 11730 | 0.9 | |||||
| SC(B)12-2000 | 2000 | 2440 | 14450 | 0.7 | |||||
| SC(B)12-2500 | 2500 | 2880 | 17170 | 0.7 | |||||
1.working condition
* Device types: indoor type
* Normal environment conditions of use: the elevation not more than 1000 m
* Environmental highest temperature + 40℃, minimum-25 ℃
* The special environment conditions of use: elevation of more than 1000 m
* Environmental highest temperature + 40 ℃, minimum-45 ℃. (when you order details)
* Mounting ambicnt: no corrosive gas, no obvious dirt environment
2.applicable standard
* IEC60076 power transformer
* IEC723 dry power transformer
* GB6450-1986 dry power transformer
* GB/R1094-1996 power transformer
* GB4208-1993 outer shell protect grade(IP code)
All products of the company have passed the national type test like CCC, CQC , CTQC and other
national mandatory product certification, and has a perfect quality, occupational health and
environmental management system certification system. Our products have passed ISO9001, 2000
and other international quality system certification.
None of the dry-type transformers we see today are installed in a separate, tightly enclosed room, as in
the oil-immersed type, but only in a relatively dry and clean room. In addition to this, it is also very convenient
to transport or carry, no matter what kind of transport vehicles, trains, cars or other non-motor vehicles can be,
but it is best to keep the car dry, clean and the product itself in good packaging. Practice has proved that really
good products will always be more and more marketable. As dry-type transformers have very good fire-proof
performance and are easy to install and maintain, they are also used more and more widely Especially in the
modern commercial downtown, residential areas, hospitals, airports, stations, subways, theaters, schools,
public places and other places with high requirements on fire protection.
