Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | HENGFENGYOU |
Certification: | ISO IEC CB COC KEMA SNI SABS CCC |
Model Number: | SCBH15 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 |
Price: | 200-200000/piece |
Packaging Details: | wooden case |
Delivery Time: | 15 DAYS |
Payment Terms: | LC T/T |
Supply Ability: | 5000 pieces/year |
Detail Information |
|||
Material: | Aluminum Or Copper | Usage: | Single-phase Transformer, Rectifier Transformer, Combined Transformer, Power Transformer, Distribution Transformer |
---|---|---|---|
Capacity: | 100.125.160.200.250.315.400.500.630.800.1000 | HS Code: | 85043190 |
Product Name: | Dry Type Transformer | Certificate: | CE,ISO,CQC,SABS,3C |
High Light: | cast resin dry type transformer,dry cast resin transformers |
Product Description

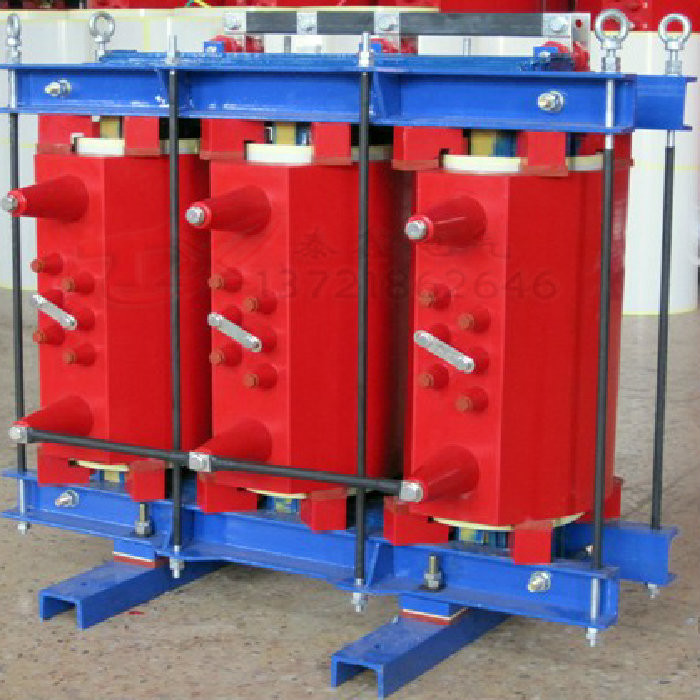

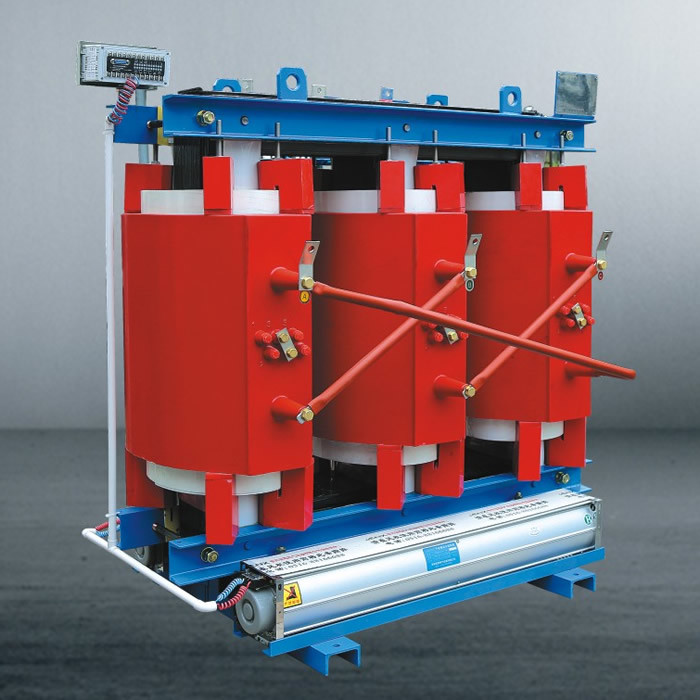

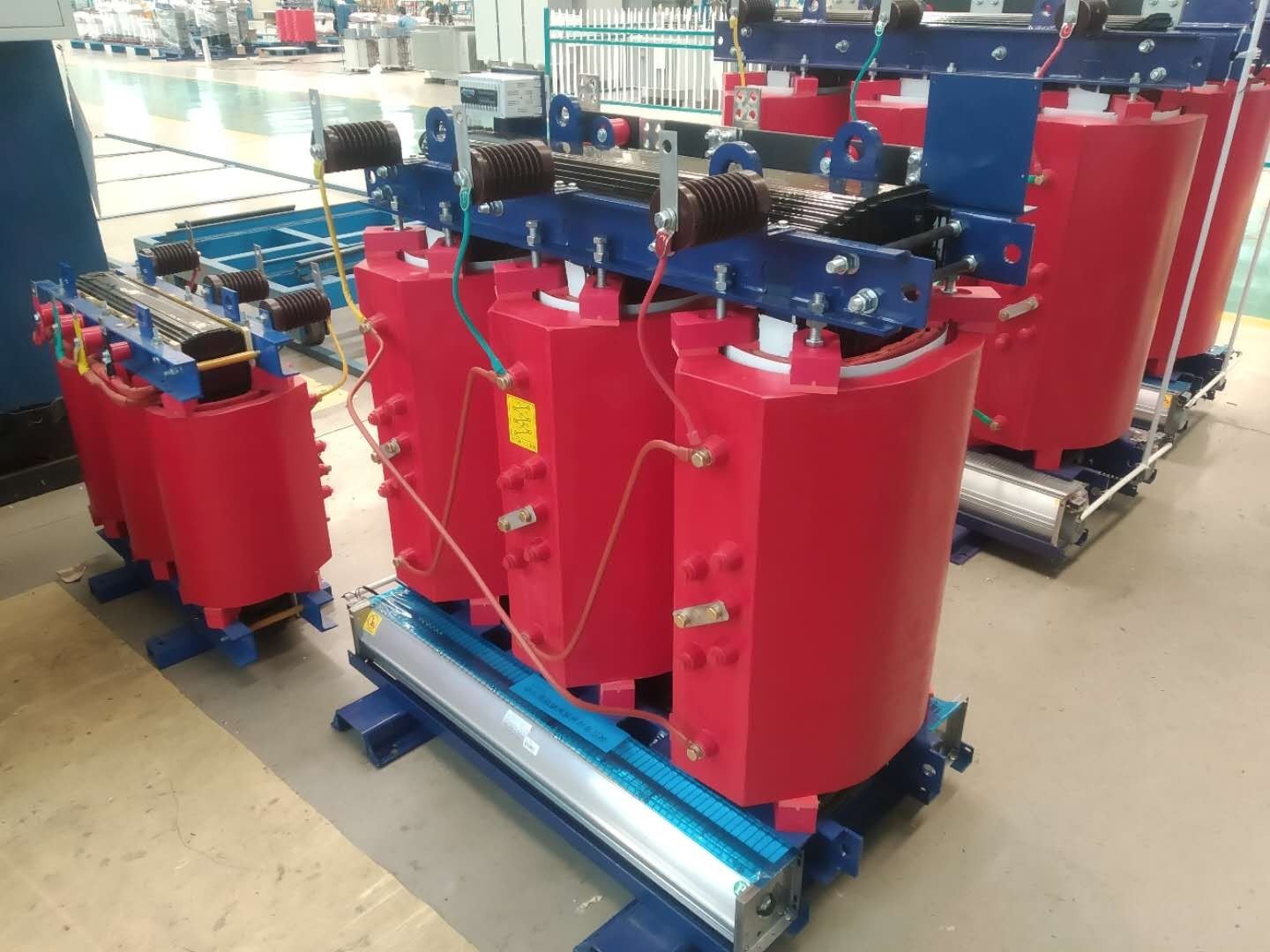

SCB Dry Type power distribution transformer
Product Description
THis product has the characteristic of anti-flaming,anti-explosion, damp-proof, dust proof. The adoption of integral casting coil structure makes it
high mechanical strength, small partial discharge capacity, High Reliability.
This product also has the advantages of safety, energy saving, environmental protection, and maintenance free. It can be installed in moist and dirty environment.
It is suitable for airport, station, wharf, the subway, power plant, substation, hospital, hotel,business center, sports venue, high-rise building, residential area and industrial and mining enterprise etc.
Applicable Standards
IEC 60076-11: Power transformers - Part 11: Dry-type transformers
IEEE C57.12.01-2015 - IEEE Standard for General Requirements for Dry-Type Distribution
and Power Transformers
Technical data
Type |
Rated capacity (KVA) |
Connection groupgrade |
Voltagecombination(KV) |
Noloadloss (W) |
loadloss(W) DyYy |
No-load current(%) |
Short-circuit resistance(%) |
||
HighvoltageTappingrang | eLowvoltage | ||||||||
SC12-30 | 30 |
YynO . Dyn11 |
10 6.3 6 |
土5% +2x2.5% +x2.5% |
0.4 | 150 | 710 | 2.3 | 4.0 |
SC12-50 | 50 | 215 | 1000 | 2.2 | |||||
SC12-80 | 80 | 295 | 1380 | 1.7 | |||||
SC12-100 | 100 | 320 | 1570 | 1.7 | |||||
SC12-125 | 125 | 375 | 1850 | 1.5 | |||||
SC(B)12-160 | 160 | 430 | 2130 | 1.5 | |||||
SC(B)12-200 | 200 | 495 | 2530 | 1.3 | |||||
SC(B)12-250 | 250 | 575 | 2760 | 1.3 | |||||
SC(B)12-315 | 315 | 705 | 3470 | 1.1 | |||||
SC(B)12--400 | 400 | 785 | 3990 | 1.1 | |||||
SC(B)12-500 | 500 | 930 | 4880 | 1.1 | |||||
SC(B)12-630 | 630 | 1070 | 5880 | 0.9 | |||||
SC(B)12-630 | 630 | 1040 | 5960 | 0.9 | |||||
SC(B)12-800 | 800 | 1215 | 6960 | 0.9 | |||||
SC(B)12-1000 | 1000 | 1415 | 8130 | 0.9 | |||||
SC(B)12-1250 | 1250 | 1670 | 9690 | 0.9 | |||||
SC(B)12-1600 | 1600 | 1960 | 11730 | 0.9 | |||||
SC(B)12-2000 | 2000 | 2440 | 14450 | 0.7 | |||||
SC(B)12-2500 | 2500 | 2880 | 17170 | 0.7 |
1.working condition
* Device types: indoor type
* Normal environment conditions of use: the elevation not more than 1000 m
* Environmental highest temperature + 40℃, minimum-25 ℃
* The special environment conditions of use: elevation of more than 1000 m
* Environmental highest temperature + 40 ℃, minimum-45 ℃. (when you order details)
* Mounting ambicnt: no corrosive gas, no obvious dirt environment
2.applicable standard
* IEC60076 power transformer
* IEC723 dry power transformer
* GB6450-1986 dry power transformer
* GB/R1094-1996 power transformer
* GB4208-1993 outer shell protect grade(IP code)
All products of the company have passed the national type test like CCC, CQC , CTQC and other
national mandatory product certification, and has a perfect quality, occupational health and
environmental management system certification system. Our products have passed ISO9001, 2000
and other international quality system certification.
None of the dry-type transformers we see today are installed in a separate, tightly enclosed room, as in
the oil-immersed type, but only in a relatively dry and clean room. In addition to this, it is also very convenient
to transport or carry, no matter what kind of transport vehicles, trains, cars or other non-motor vehicles can be,
but it is best to keep the car dry, clean and the product itself in good packaging. Practice has proved that really
good products will always be more and more marketable. As dry-type transformers have very good fire-proof
performance and are easy to install and maintain, they are also used more and more widely Especially in the
modern commercial downtown, residential areas, hospitals, airports, stations, subways, theaters, schools,
public places and other places with high requirements on fire protection.
