Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | HENGFENGYOU |
Certification: | ISO IEC CB COC KEMA SNI SABS CCC |
Model Number: | SCB10 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 |
Price: | 200-200000/piece |
Packaging Details: | wooden case |
Delivery Time: | 15 DAYS |
Payment Terms: | LC T/T |
Supply Ability: | 5000 pieces/year |
Detail Information |
|||
Material: | Aluminum Or Copper | Usage: | Single-phase Transformer, Rectifier Transformer, Combined Transformer, Power Transformer, Distribution Transformer |
---|---|---|---|
Capacity: | 100.125.160.200.250.315.400.500.630.800.1000 | HS Code: | 85043190 |
Product Name: | Dry Type Transformer | Certificate: | CE,ISO,CQC,SABS,3C |
High Light: | cast resin dry type transformer,dry cast resin transformers |
Product Description

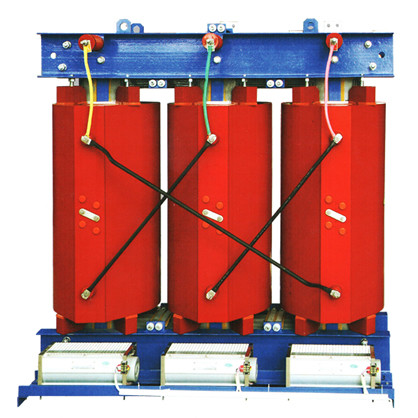

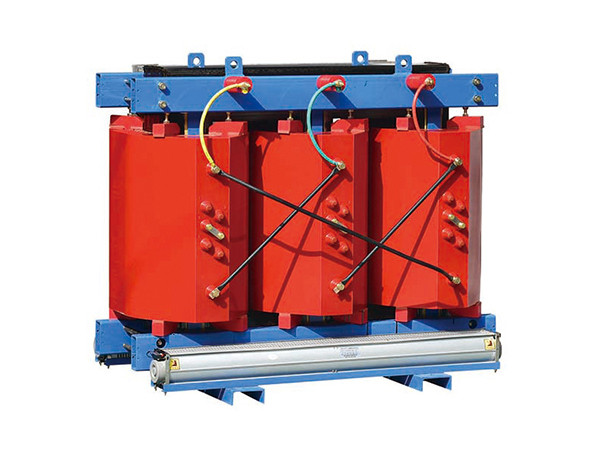

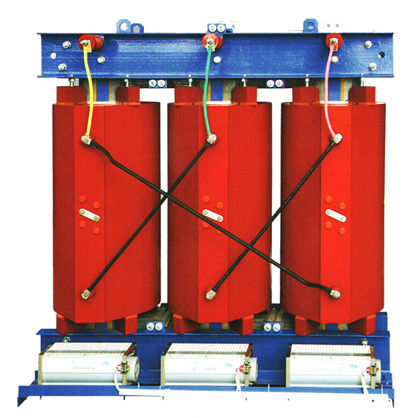

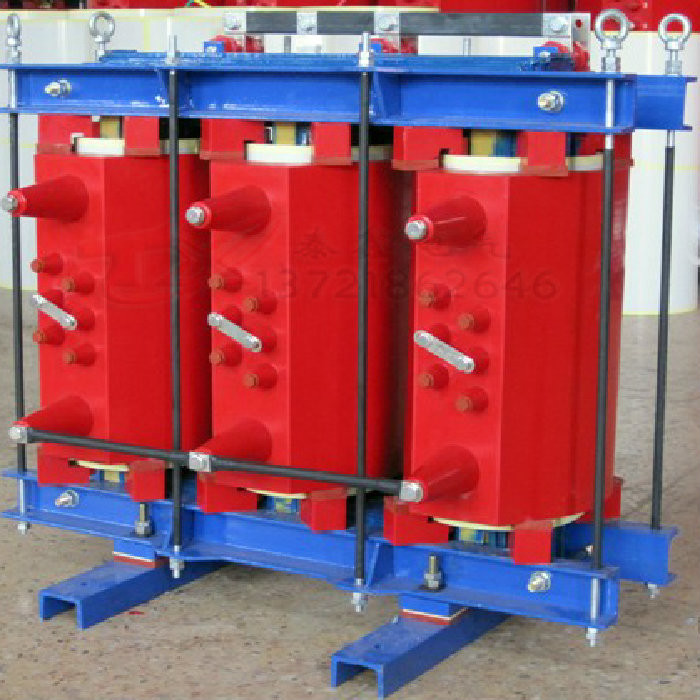

SCB Dry Type power distribution transformer
Dry type SC(B)11, SC(B)10, SC(B)9 distribution transformer is widely used for power supply & distribution in industrial and civil occasions, to step down grid voltage (6-35KV) to linen voltage 400V. The transformers are resin insulated, which is safe, non-pollute, flame proof and can be installed directly on the load centre, with the merits of free maintenance, easy installation, low operation cost, low loss and excellent humidity resistance.
Main application in: High-rise buildings, airports, terminals, power plants, transformer stations, residential areas or packages of various sites.
Technical data
Type |
Rated capacity (KVA) |
Connection groupgrade |
Voltagecombination(KV) |
Noloadloss (W) |
loadloss(W) DyYy |
No-load current(%) |
Short-circuit resistance(%) |
||
HighvoltageTappingrang | eLowvoltage | ||||||||
SC12-30 | 30 |
YynO . Dyn11 |
10 6.3 6 |
土5% +2x2.5% +x2.5% |
0.4 | 150 | 710 | 2.3 | 4.0 |
SC12-50 | 50 | 215 | 1000 | 2.2 | |||||
SC12-80 | 80 | 295 | 1380 | 1.7 | |||||
SC12-100 | 100 | 320 | 1570 | 1.7 | |||||
SC12-125 | 125 | 375 | 1850 | 1.5 | |||||
SC(B)12-160 | 160 | 430 | 2130 | 1.5 | |||||
SC(B)12-200 | 200 | 495 | 2530 | 1.3 | |||||
SC(B)12-250 | 250 | 575 | 2760 | 1.3 | |||||
SC(B)12-315 | 315 | 705 | 3470 | 1.1 | |||||
SC(B)12--400 | 400 | 785 | 3990 | 1.1 | |||||
SC(B)12-500 | 500 | 930 | 4880 | 1.1 | |||||
SC(B)12-630 | 630 | 1070 | 5880 | 0.9 | |||||
SC(B)12-630 | 630 | 1040 | 5960 | 0.9 | |||||
SC(B)12-800 | 800 | 1215 | 6960 | 0.9 | |||||
SC(B)12-1000 | 1000 | 1415 | 8130 | 0.9 | |||||
SC(B)12-1250 | 1250 | 1670 | 9690 | 0.9 | |||||
SC(B)12-1600 | 1600 | 1960 | 11730 | 0.9 | |||||
SC(B)12-2000 | 2000 | 2440 | 14450 | 0.7 | |||||
SC(B)12-2500 | 2500 | 2880 | 17170 | 0.7 |
1.working condition
* Device types: indoor type
* Normal environment conditions of use: the elevation not more than 1000 m
* Environmental highest temperature + 40℃, minimum-25 ℃
* The special environment conditions of use: elevation of more than 1000 m
* Environmental highest temperature + 40 ℃, minimum-45 ℃. (when you order details)
* Mounting ambicnt: no corrosive gas, no obvious dirt environment
2.applicable standard
* IEC60076 power transformer
* IEC723 dry power transformer
* GB6450-1986 dry power transformer
* GB/R1094-1996 power transformer
* GB4208-1993 outer shell protect grade(IP code)
All products of the company have passed the national type test like CCC, CQC , CTQC and other
national mandatory product certification, and has a perfect quality, occupational health and
environmental management system certification system. Our products have passed ISO9001, 2000
and other international quality system certification.
None of the dry-type transformers we see today are installed in a separate, tightly enclosed room, as in
the oil-immersed type, but only in a relatively dry and clean room. In addition to this, it is also very convenient
to transport or carry, no matter what kind of transport vehicles, trains, cars or other non-motor vehicles can be,
but it is best to keep the car dry, clean and the product itself in good packaging. Practice has proved that really
good products will always be more and more marketable. As dry-type transformers have very good fire-proof
performance and are easy to install and maintain, they are also used more and more widely Especially in the
modern commercial downtown, residential areas, hospitals, airports, stations, subways, theaters, schools,
public places and other places with high requirements on fire protection.
