China Electrical Power Transformer manufacturer

3 phase electric distribution transformer 11kv to 415v, 3 phase oil immersed transformer for sale

Product Details:
Place of Origin: China
Brand Name: HENGFENGYOU
Certification: ISO IEC CB COC KEMA SNI SABS CCC
Model Number: S11
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200-200000/piece
Packaging Details: wooden case
Delivery Time: 15 DAYS
Payment Terms: LC T/T
Supply Ability: 5000 pieces/year
Contact Now

Detail Information

Usage: Power Product Name: Three Phase Oil Transformer
Frequency: 50Hz/60Hz Output Voltage: Customize
Color: Optional Application: Change Voltage
Place Of Origin: Qingdao,China

Product Description

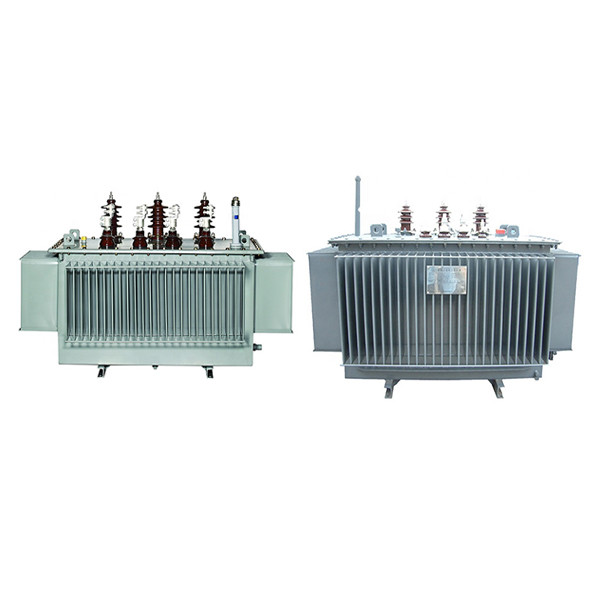

oil-immersed transformer S11,30-2500KVA,10KV series,3 phae/full sealed/double winding                              3 phase electric distribution transformer 11kv to 415v, 3 phase oil immersed  transformer for sale 0

Product Description
Power transformer three phase oil immsered electrical transformer rated voltage during 6-35kV, oil immersed transformer are most used in power plant,power grid transmission and distribution station,industry& commerce electrical substation as the electrical equipment of power transmission,

1,Two windings or three windings
2,On-load or no-load voltage tapping changer
3,Natural cooling or force air or oil cooling,
4,capacity range 10-5000kVA


Characteristic:



Long service life, maintenance free operation. The fully sealed transformer insulates the contact of oil fish and air, greatly reduces the aging speed of insulation and improves the service life.



The product is designed with compact structure and low running noise. Due to the use of new materials and new processes, noise reduction, no oil conservator, the height is lower than similar products. No oil change is needed in the normal service life, which improves the safety and reliability of operation in the network.



Corrugated mailbox has small volume and beautiful appearance. The tank of S11 power transformer adopts corrugated heat dissipation. When the oil temperature changes, the elastic expansion and contraction of the corrugated sheet with volume change will adjust the compensation.



No hanging core and oil detection. When the transformer is packaged, the vacuum filter oil process is used to completely remove the moisture in the transformer oil. After sealing, the inner part of the transformer does not contact with the air, effectively preventing the insulation performance degradation caused by oxygen and moisture entering the transformer.



High-quality material

a. The three- phase oil-immersed Power Transformer applies new type insulating structure.
b. The iron core is made of high-quality cold-rolled silicon-steel plate 27ZH10.
c. All fasteners have been processed with special trearment to prevent them from loosening.



Oxygen-free copper lines of lower resistivity, which will become smoother and burr-free after series of additional surface treatment, so the load loss of our transformer is lower and the electric performance is better.
High-quality silicon-steel plates which are of lower unit loss, and the no-load of the transformers is lower.
High-quality wooden laminating insulation pieces, which won’t split or move even under the influence of short circuit.
Thoroughly filtrated transformer oil containing less water, gas and impurities, which makes our transformers work better.
High-quality rubber sealing material, which can prevent the transformers form aging or leakage.





Technical data



MODEL
RATED CAPACITY(KVA)
CONNECTION SYMBOL
VOLTAGE COMBINATION(KV)
NO-LOAD LOSS(W)
LOAD LOSS (W)
NO-LOAD CURRENT(%)
SHORT CIRCUIT IMPENDENCE(%)
HV
TR
LV
S11-M-30
30
YYN0 ORDYN11
6
6.3
6.6
10
10.5
11
±5%
or
±2*2.5%
0.4
0.415
0.433
100
630/ 600
2.3
4.0
S11-M-50
50
130
910/ 870
2.0
4.0
S11-M-63
63
150
1090/1040
1.9
4.0
S11-M-80
80
180
1310/1250
1.9
4.0
S11-M-100
100
200
1580/1500
1.8
4.0
S11-M-125
125
240
1890/1800
1.7
4.0
S11-M-160
160
280
2310/2200
1.6
4.0
S11-M-200
200
340
2730/2600
1.5
4.0
S11-M-250
250
400
3200/3050
1.4
4.0
S11-M-315
315
480
3830/3650
1.4
4.0
S11-M-400
400
570
4520/4300
1.3
4.0
S11-M-500
500
680
5410/5100
1.2
4.0
S11-M-630
630
810
6200
1.1
4.5
S11-M-800
800
980
7500
1.0
4.5
S11-M-1000
1000
1150
10300
1.0
4.5
S11-M-1250
1250
1360
12800
0.9
4.5
S11-M-1600
1600
1640
14500
0.8
5.0
S11-M-2000
2000
2280
17820
0.6
5.0
S11-M-2500
2500
2700
20700
0.6
5.0
S11-M-3200
3200
3200
23400
0.6
5.0



Executive Standard:

GB1094 (Electrical Transformer)
IEC60076 (Electrical Transformer)
JB/T6451 (Specification and Technical Requirements for Oil-immersed Power Transformers)
JB/T10088 (6kV~500kV?Power Transformer Sound Level)
GB/T7595 (Quality of Transformer Oils in Service)



·Service conditions

1. The maximum ambient air temperature shall not exceed 40 ℃, and the minimum shall not below - 25 ℃;

2. The altitude shall not exceed 1000m. If special customized transformers and low-voltage components are used, the altitude can reach 4000m;

3. The vertical inclination is no more than 5 °, and no violent vibration and impact;

4. The air humidity is not more than 90% (+ 25 ℃);

5. No gas and conductive dust that will seriously affect the insulation of transformer, no explosion hazard and corrosion of electrical components;

6. Outdoor wind speed shall not exceed 35m / s.

7. If service conditions beyond the above, specially customized product is available.



Workshop

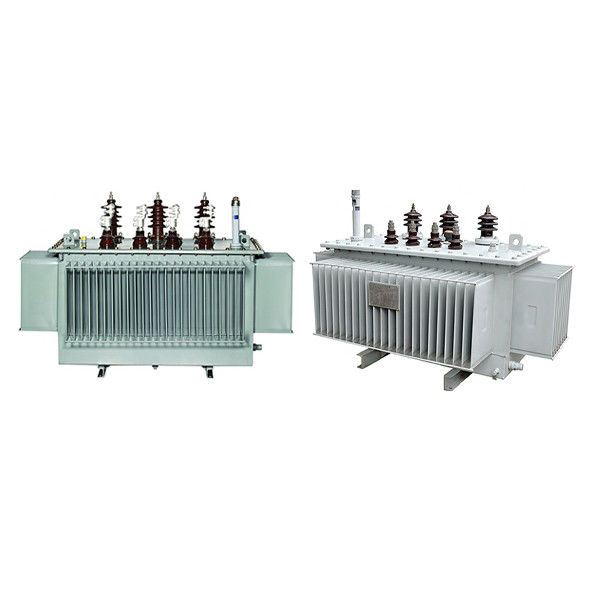

                  3 phase electric distribution transformer 11kv to 415v, 3 phase oil immersed  transformer for sale 1



About Our Company:

1. 25 years' manufacturing experience with three subsidiaries
2. Won tenders aboard
3. IEC 60076 & ISO certificate
4. OEM / ODM
5. Competitive price with 100% Cu winding
6. Production capacity: 10,000,000 kVA per year





If any interest , pls feel free to contact us:

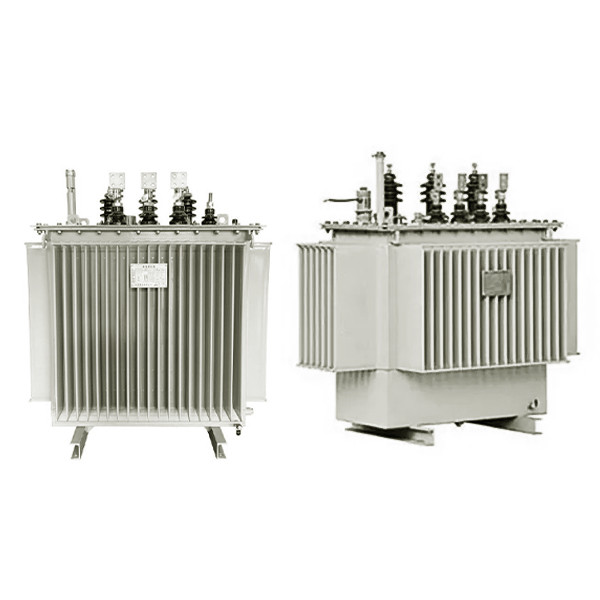

3 phase electric distribution transformer 11kv to 415v, 3 phase oil immersed  transformer for sale 2
