Detail Information
Usage:	Distribution Power Transformer	Coil Number:	Double Winding
Phase:	Three,Single	Frequency:	50/60Hz
Rated Capacity:	30-3000kva	Type:	Dry Type,transformer,Cast Resin
Standard:	IEC60076,IEC,GB1094-1996; JB/T10088-2004; GB/T6451-2008; EQV,CNS,EC/ GB/T6451-2008	Product Name:	3 Phase Dry Type Electrical Transformer 300kva,Dry Type 10kva 440v To 220v Three Phase Transformer
Low Voltage:	10 - 0.4/0.23kV	Color:	Red

Product Description

3 Phase Power Electrical Cast Resin Coils For Dry Type Transformers 11KV, 15KV, 33KV, 5000KVA

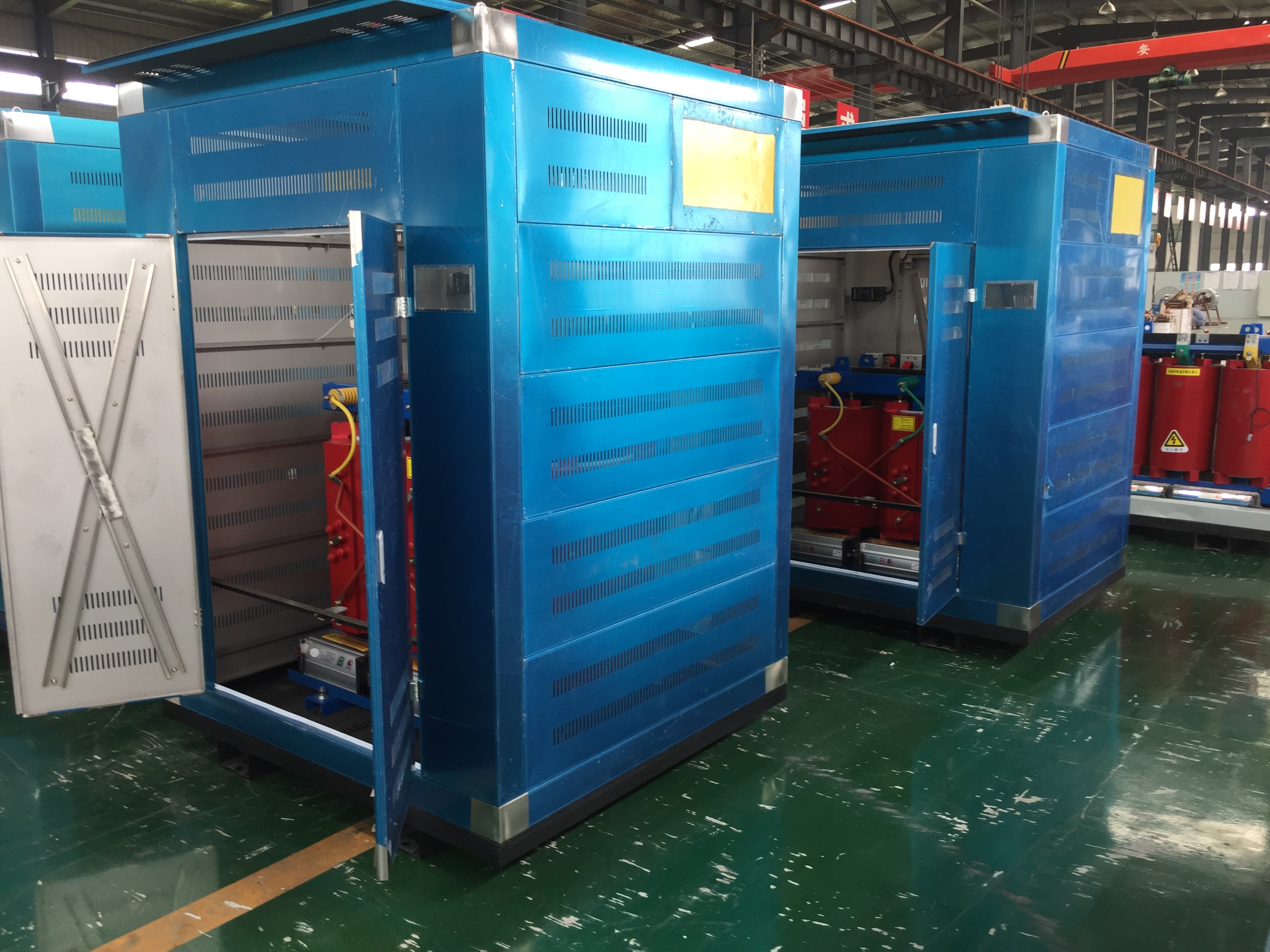

3 Phase Power Electrical Cast Resin Coils For Dry Type Transformers 11KV, 15KV, 33KV, 5000KVA 0

Products details:

Cast resin insulation guarantees secure performance of the transformer with no need for complicatedand costly maintenance. Preventive maintenance of cast resin transformers consists in a simple visualcheck. Low operating costs Low losses in the magnetic core and in the windings reduce the costs ofoperation. The coils are made with pure copper wire /foil, and encapsulated by high quality epoxy resin.

Scb10 epoxy resin cast dry-type transformer is an upgrade product of scb9. Scb10 series products features significant high mechanical strength, high electrical strength, high heat resistance and low loss, low noise, low partial discharge. So scb10 dry-type transformer is environmental protection products for new generation of urban power grid update, and is the mainstream product in the current transformer market. It is especially suitable for commercial center, airport, high building, chemical plant, nuclear power station, ship and other important places requiring fire prevention, explosion-proof and moisture-proof.

Note: Due to continuous product improvement, the dimensions provided in this sample are for reference only. If necessary, our company can design and produce according to user requirements. Please contact the company in time.

Model	SCB10-500/10	Capacity	500 KVA
Primary Voltage	10KV , 11KV	Secondary Voltage	0.4 KV
Rated current(H.V.)	28.87A	Rated current (L.V.)	721.7 A
Vector Group	DYN11	Insulation & Heatproof Class	F
Max.temperature rising	100K	Short-circuit impedance	4.10 %
phase	3	Frequency	50Hz
Cooling Method	AN / AF	Net Weight	1810Kgs

10/0.4kV Dry Type transformer Technical parameters(Second level of energy efficiency)

Rated capacity (kVA)	Voltage combination			Connected group label	No-load loss (W)	Load loss(W)			No-load current(%)	Impendace voltage (%)	sound power level (dB)	Exterior size (L x w x h)	Total weight (kg)
	High voltage(kV)	tap range	Low Voltage (kV)			Load loss(W)
						130°C(B)	155°C(F)	180°C(H)
						100°C	120°C	145°C
30	6 6.3 6.6 10 10.5 11	±2 x 2.5 ±5	0.4	Dyn11	150	670	710	760	0.6	4.0	57	900 x 900 x 800	300
50					215	940	1000	1070	0.6		57	955 x 900 x 900	350
80					295	1290	1380	1480	0.6		58	985 x 950 x 960	400
100					320	1480	1570	1690	0.6		58	1035x1250x980	450
125					375	1740	1850	1980	0.6		59	1060x1280x1000	500
160					430	2000	2130	2280	0.6		59	1120x1320x1050	680
200					495	2370	2530	2710	0.5		60	1135x1330x1105	770
250					575	2590	2760	2960	0.5		60	1170x1330x1165	900
315					705	3270	3470	3730	0.5		62	1185x1360x1225	1010
400					785	3750	3990	4280	0.4		62	1210x1380x1300	1205
500					930	4590	4880	5230	0.4		63	1245x1400x1380	1400
630					1070	5530	5880	6290	0.4		63	1295x1410x1355	1515
630					1040	5610	5960	6400	0.3	6.0	63	1295x1410x1355	1515
800					1210	6550	6960	7460	0.3		65	1375x1450x1480	1880
1000					1410	7650	8130	8760	0.3		65	1430x1480x1525	2170
1250					1670	9100	9690	10300	0.25		67	1480x1500x1570	2525
1600					1960	11000	11700	12500	0.25		67	1500x1520x1710	2980
2000					2440	13600	14400	15500	0.20		69	1570x1550x1735	3480
2500					2880	16100	17100	18400	0.20		69	1625x1600x1825	4080
1600					1960	12200	12900	13900	0.25	8.0	67	1500x1520x1710	2980
2000					2440	15000	15900	17100	0.20		69	1570x1550x1735	3480
2500					2880	17700	18800	20200	0.20		69	1625x1600x1825	4080

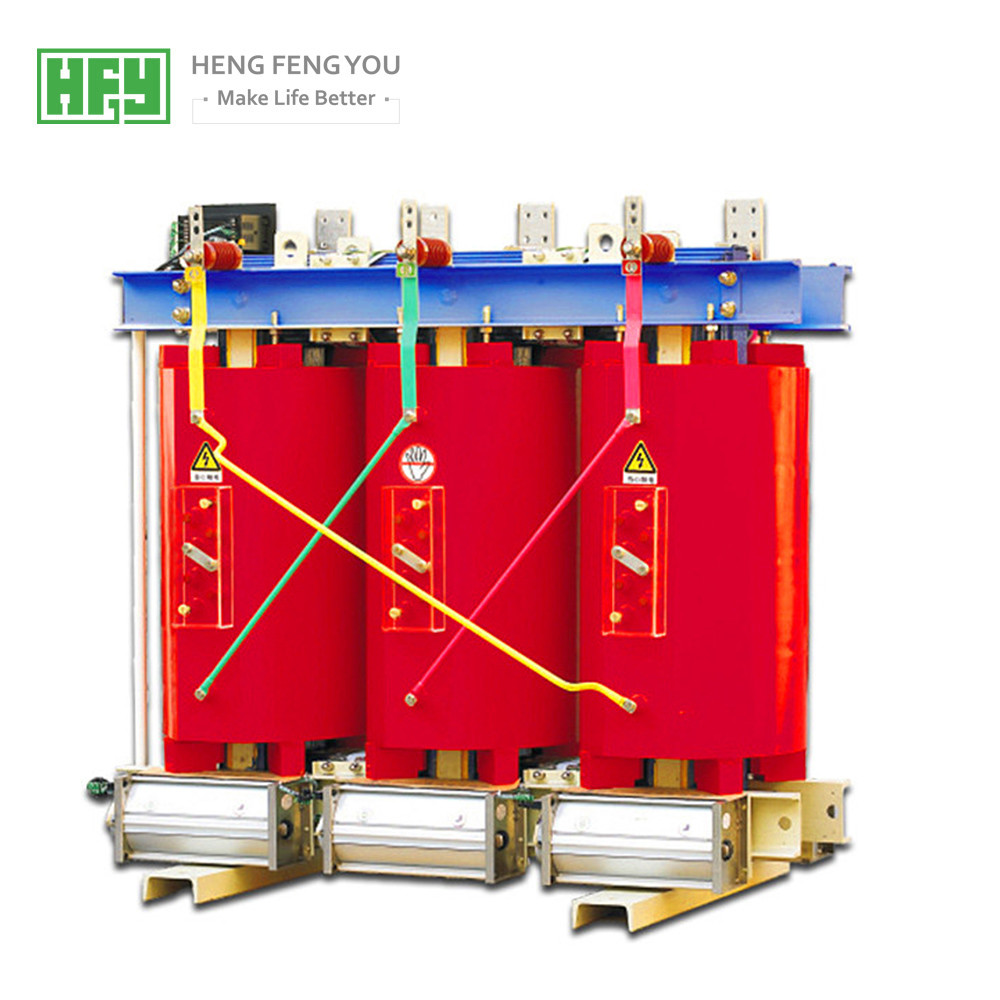

3 Phase Power Electrical Cast Resin Coils For Dry Type Transformers 11KV, 15KV, 33KV, 5000KVA 1

Order instructions:

1. The customer needs provide main parameters of the transformer (input and output voltage, capacity, loss, etc.)

2. Other customer requirements

ATTENTION:
1. The payment term: We accept TT,30% deposit and Pay 70% before shipment.
2. The delivery time: Usually it will take about 15-20 days.
Note: due to the constantly updated products, shape size and product weight in the table will have some changes, please refer to provide the appearance size chart when ordering.
3. The standard of package: Usually use strong wood case for protection.

OUR SERVICE:

1. quick response in before sales period help you got order.
2. excellent service in production time let you know each step we made.
3. reliable quality solve you after sale headache.
4. long period quality warranty ensure you can buy without hesitate.

3 Phase Power Electrical Cast Resin Coils For Dry Type Transformers 11KV, 15KV, 33KV, 5000KVA 2
