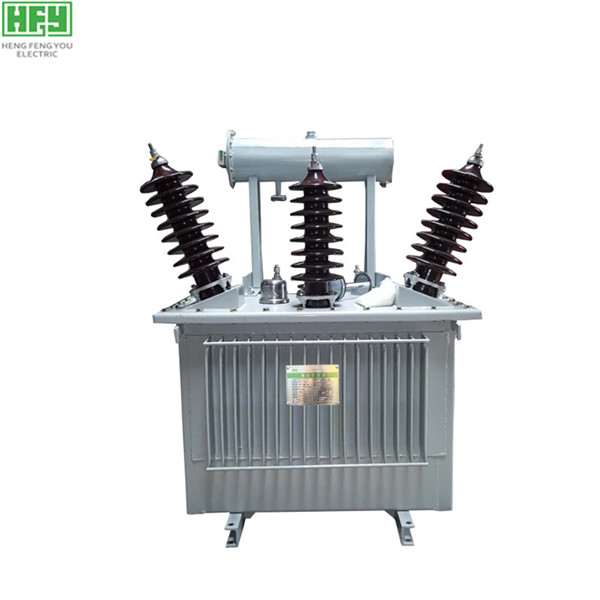

China Factory direct sell toroidal power oil immersed transformer electrical oil transformer with aluminum

Product Description

China Factory direct sell toroidal power oil immersed transformer electrical oil transformer with aluminum



 Products introduction:

This series mining transformers are suitable for underground coal substations, underground pit yards, total air intake ducts and main air intake ducts. Although there are gas but no explosion hazard, they are also suitable for tunnels with relatively humid environment.

Features.

1. The fuel tank is structurally strong and can withstand an atmospheric pressure test. There is no oil storage cabinet on the cover. High and low voltage cable junction boxes are welded on both sides of the wall for cable connection. The high voltage coil has a rated voltage and a tap voltage of ±5%. The tap changer is used to change the voltage. When the voltage is changed, the power must be cut off first, and then the weather cover of the tap changer on the wall of the box is removed for conversion and tapping.

2. The low-voltage side of the transformer allows the "Y" connection to be 690V power supply, or it can be changed to "△" connection to 400V power supply. In the cable junction box, the secondary end is directly led out by six porcelain sleeves for user modification.

3. The lifting of the whole transformer is carried out by the hanging of the tank wall. The bottom of the transformer box is equipped with a trolley bracket. The bracket is equipped with mounting holes, which can be used to install the mine roller.

Company introduction
Hengfengyou transformer Qingdao branch is one of the holding subsidiaries of "Qingdao Hengfengyou group". It has been specialized in the development research, manufacturing and service of power transformers for 30 years. At present, the company has 10 senior engineers, 30 senior technicians, more than 200 employees, with an annual output value of 50 million US dollars and an annual production capacity of more than 10 million kVA. Hengfengyou is a large-scale enterprise in the field of power transmission and distribution equipment manufacturing. With high-quality products and perfect service system, It now provides reliable power transformer products and services for more than 50 countries and regions around the world. It has established a good reputation and image of "HFY" brand in the global market, and won extensive trust and praise from customers.
Our main products are: oil immersed transformer, dry type transformer, amorphous alloy transformer, experimental transformer, electric furnace transformer, rectifier transformer, etc. At present, our 10kV, 12kV, 20kV, 33kV, 35kV oil immersed transformers of S11, S13 series , 10kV, 12kV, 20kV, 33kV, 35kV epoxy cast dry-type power transformers of SCB10, SCB13 series , SH15, SCBH15 amorphous alloy power transformers, on load tap changing transformers and other products have passed the inspection of the national electrical product quality supervision and inspection agency and obtained the registration model record certificate. The products also passed the energy efficiency product certification of China quality certification agency, CCC product certification of national power certification agency, EU CE certification, ISO9001 quality management system certification and so on.
