Chinese Suppliers 30kva-4000kva 100kv 110kv Oil-Immersed Type Transformer Power Electrical Transformer

Our Products

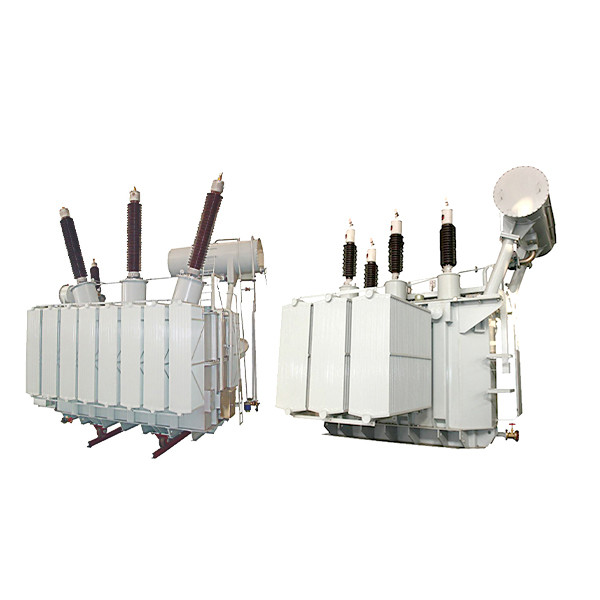

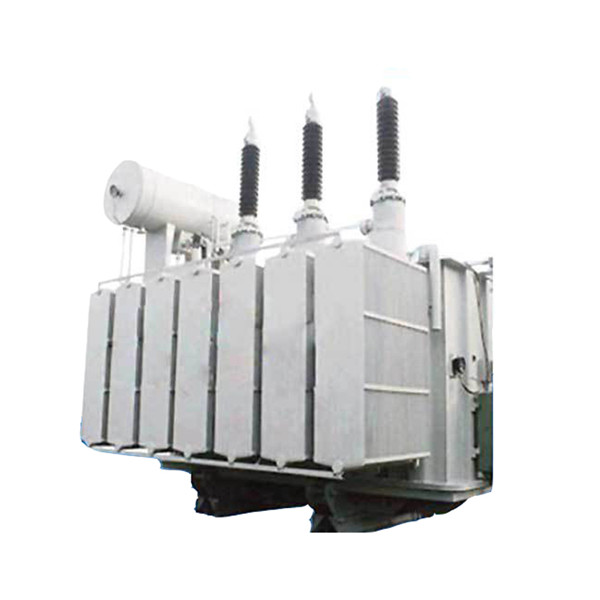

110kV three-phase oil immersed power transformer is manufactured according to iec60076 standard and standards gb1094.1 ~ 2-1996 and gb1094.3.5-1985 of the Electrotechnical Commission, with frequency of 50Hz, which can be used for power transmission and transformation of industrial and agricultural power grid. The new series of 110kV power transformers are characterized by low noise, low partial discharge, low temperature rise, short circuit resistance, impact resistance, no leakage and beautiful appearance.

Characteristics

1.High quality cold-rolled grain oriented silicon steel sheet is selected as the core, the full inclined pore

free structure is adopted, and the low magnetic steel plate is used as the pull plate to firmly connect the

upper and lower clamps with the core into a steel structure, so as to obtain less no-load loss and lower

noise. The burr of silicon steel sheet shear port shall not be greater than 0.02mm. The no-load

performance index is better than the national standard of China.

2. According to the capacity of the transformer, the winding adopts cylinder, spiral, continuous and other

structures. For the winding of 110kV UHV Transformer, the winding adopts tangle or inner screen

structure, so as to effectively improve the distribution of impulse voltage. The conductor adopts

transposed conductor or composite conductor, so as to reduce the additional loss of the winding, and

uses computer simulation to calculate the impact of electric field and winding The characteristics

ensure the excellent electrical characteristics and impact strength of the winding, and the effective

measures are adopted in the process to ensure its safe and reliable operation.

3.The pressing structure of 110kV UHV Transformer body adopts round insulating pressing plate. The whole winding assembly is adopted in the package process, which improves the reliability of the product.

4.The oil tank adopts a flat top bell jar structure, and the box wall is welded with folded plate type

reinforcing iron, which improves the mechanical strength of the oil tank. In order to reduce the stray loss

of the transformer, the inner wall of the large transformer is equipped with a magnetic shield.

5.In order to prevent the displacement of the generator body of 110kV UHV Transformer during transportation, the positioning device is set in the oil tank of the generator body. The sealed oil conservator is used to isolate the transformer oil from the atmosphere to avoid moisture and aging of the oil. The end is equipped with a pointer type oil level gauge. According to the weight of the transformer oil, a pressure relief valve is installed on the top of the oil tank to ensure the safe operation of the product.

6.Cooling and accessories: generally air-cooled or self cooled (ONAF / onan), the load can be 80% of the

full load when the fan is shut down for natural cooling.

7.The radiator adopts the sheet radiator, and the sheet to sheet welding of the sheet radiator is formed

once, and the welding is reliable. The overall shape of the transformer with chip radiator is compact.

Adopt high-speed low-noise fan, generally blow in horizontal direction.

8.The start and stop of the fan is controlled by oil temperature and load. The transformer fan is attached

with a control cabinet.

9.The oil conservator is in the shape of a capsule, which is equipped with oil resistant, temperature

resistant and air tight sealed capsules to isolate the oil from the outside atmosphere. The outside of the

capsule is oil, and the inside of the capsule is air. In order to further improve the reliability of the

transformer, the air chamber of the capsule is exchanged with the outside atmosphere by the silica gel

moisture absorber.

COMPANY PRODUCTION

Qingdao HengFengYou Electrical Engineering Co. LTD., aka HFY Electrical Engineering, is a Chinese leading manufacturer and supplier in electricity transmission and distribution industry.
With 30 years of competition and development in China, by now HFY Electrical Engineering has 6 wholly-owned subsidiaries, 50 senior technicians, 350 employees, established sales network and customer service team. From research and development, manufacturing to the final project engineering, HFY provides better solution to clients than others. Our main market covers medium voltage, high voltage and ultra-high voltage power distribution.

    Three Phase

·Order instructions:

1. The customer needs provide main parameters of the transformer (input and output voltage, capacity, loss, etc.)

2. Other customer requirements
