Double Winding Dry Type 6kv 10kv/0.4kv 35kv Transformer Electrical Distribution For Power Plant

Product Details:
Place of Origin: China
Brand Name: HENGFENGYOU
Certification: ISO IEC CB COC KEMA SNI SABS CCC
Model Number: SCB10,11,12
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200-200000/piece
Packaging Details: wood pack
Delivery Time: 15 DAYS
Payment Terms: LC T/T
Supply Ability: 5000 pieces/year
Contact Now

Detail Information

Material: Copper,amorphmos Alloy Input Voltage: 11kv/10.5kv/10kv/6.3kv/6kv
Usage: Power Distribution Transformer Coil Number: Double Winding
Phase: Three,Single Frequency: 50/60Hz
Rated Capacity: 30-5000kva Low Voltage: 10 - 0.4/0.23kV
High Light:

cast resin dry type transformer

,

dry cast resin transformers

Product Description

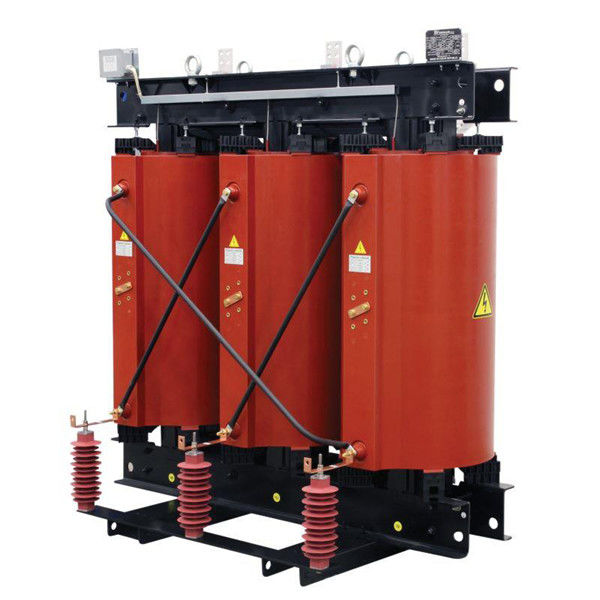

Double Winding Dry Type 6kv 10kv/0.4kv 35kv Transformer Electrical Distribution For Power Plant


Product description

The dry type transformer has been widely used in places with high fireproofing requirements, such as power transmission and transformation system, high-rise building, commercial ceer, sport stadium, petrochemical enterprise, metro, station and airport. In China, the epoxy resin cast dry-type power transformer has the richest manufacturing experience and the best running performance.



1. High mechanical strength and strong short circuit resistance ability;

2. Good moisture resistance and run with 90% humidity;

3. Advanced structure, small dimension, light weight and low partial discharge;

4. High insulation level and equal electric field distribution;

5. maintenance free;

6. Run with 140% rated load under forced air cooling;

7. Fireproof, explosion-proof, pollution-free and low-noise and able to be directly installed in the load center.

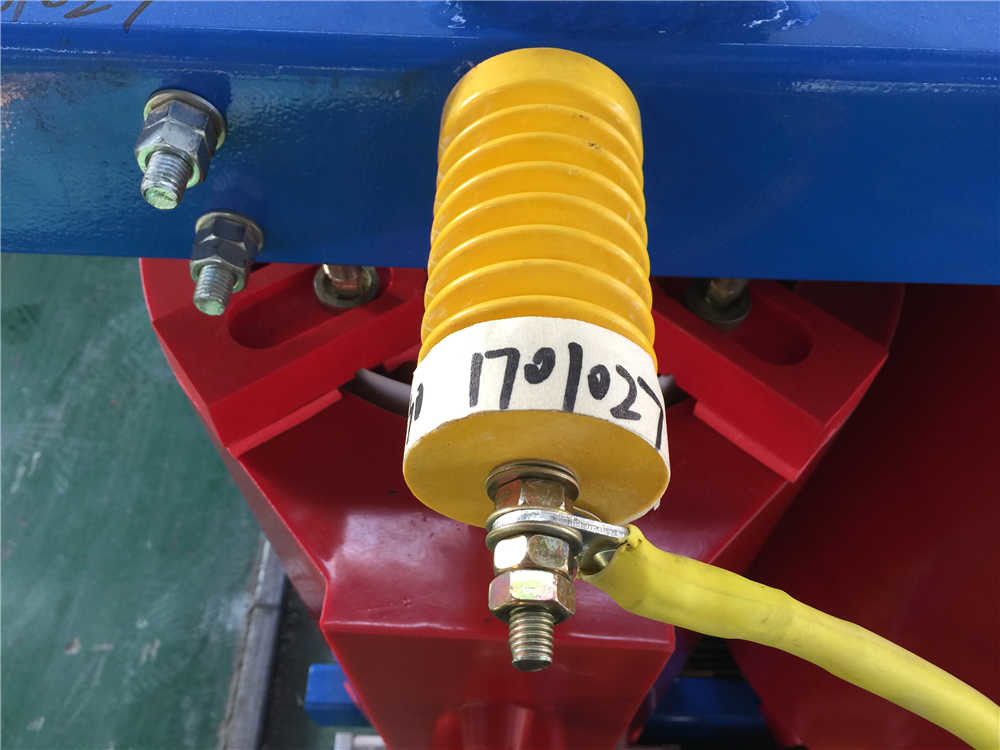

Double Winding Dry Type 6kv 10kv/0.4kv 35kv Transformer Electrical Distribution For Power Plant 0

Main technical data for 10kV SC(B)-30-2500 dry type transformer



Rated power (kVA) High voltage
(kV)
H.V.Tap
(kVA)
Low
Voltage
(kV)
Vector group
Short circuit impedance
No-load loss
(W)
On-load loss
(W)
No-load
Current
(%)
Insulation
class
Noise
(dB)
SC(B)9 SC(B)10 SC(B)9 SC(B)10
30 6
6.3
10
10.5
11
±5%

+2×2.5%
0.4 Yyn0
Dyn11
4 220 1901 750 710 2.3 F 40
50 310 270 1060 1000 2.2 40
80 420 370 1460 1380 1.7 40
100 450 400 1670 1570 1.7 40
125 530 470 1960 1850 1.5 41
160 610 540 2250 2130 1.3 42
200 700 620 2680 2530 1.3 42
250 810 720 2920 2760 1.1 44
315 990 880 3670 3470 1.1 46
400 1100 980 4220 3990 1.1 46
500 1310 1160 5170 4880 0.9 47
630 1510 1340 6220 5880 0.9 47
630 6 1460 1300 6310 5960 0.9 47
800 1710 1520 7360 6960 0.9 48
1000 1990 1770 8610 8130 0.9 48
1250 2350 2090 10260 9690 0.9 49
1600 2760 2450 12400 11730 0.9 50
2000 3400 3050 15300 14450 0.7 52
2500 4000 3600 18180 17170 0.7 55




Main technical data for 35 kV SCB(B)-50~2500 dry type transformer



Rated power (kVA) High voltage
(kV)
H.V.Tap
(kVA)

Low
Voltage
(kV)
Vector group
Short circuit impedance
No-load loss
(W)
On-load loss
(W)
No-load
Current
(%)
Insulation
class
Noise
(dB)
SC(B)9 SC(B)10 SC(B)9 SC(B)10
50 35
38.5
±5%

+2×2.5%
0.4 Yyn0
Dyn11
6 500 450 1500 1430 2.8 F 53
100 700 630 2200 2090 2.4 56
160 880 790 2960 2810 1.8 58
200 980 880 3500 3330 1.8 59
250 1100 990 4000 3800 1.6 60
315 1310 1180 4750 4510 1.6 61
400 1530 1380 5700 5420 1.4 62
500 1800 1620 7000 6650 1.4 63
630 2070 1860 8100 7700 1.2 63
800 2400 2160 9600 9120 1.2 66
1000 2700 2430 11000 10450 1.0 66
1250 3150 2840 13400 12730 0.9 67
1600 3600 3240 16300 15490 0.9 68
2000 4250 3830 19200 18240 0.9 69
2500 4950 4460 23000 21850 0.9 73



Note: due to the constantly updated products, shape size and product weight in the table will have some changes, please refer to provide the appearance size chart when ordering.
