Product Description

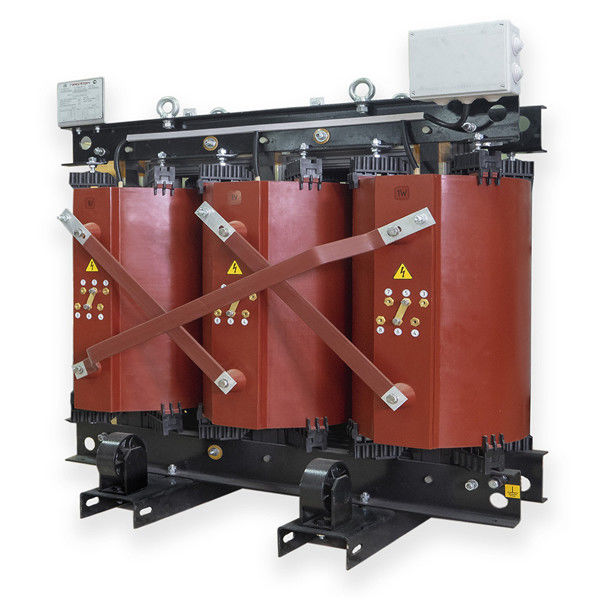

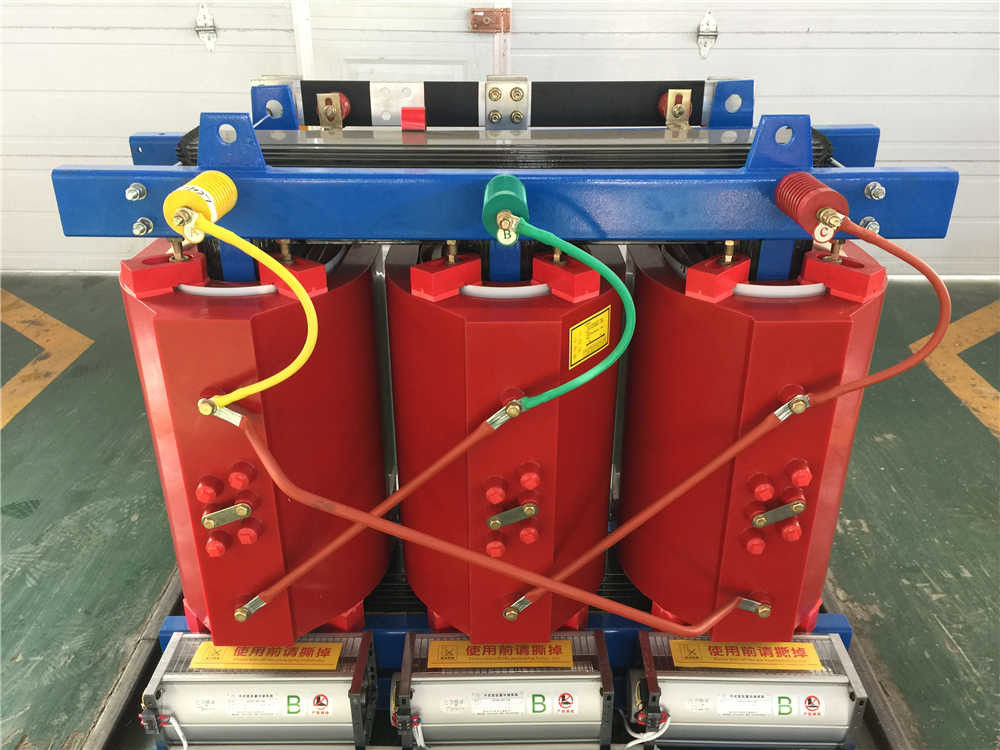

SCB Series Energy-saving Three Phase Dry Type Transformer power electrical distribution transformer suppliers

Dry type SC(B)11, SC(B)10, SC(B)9 distribution transformer is widely used for power supply & distribution in industrial and civil occasions, to step down grid voltage (6-35KV) to line voltage 400V. The transformers are resin insulated, which is safe, non-pollute, flame proof and can be installed directly on the load centre, with the merits of free maintenance, easy installation, low operation cost, low loss and excellent humidity resistance.

Main application in: High-rise buildings, airports, terminals, power plants, transformer stations, residential areas or packages of various sites.

Product standard: IEC60076 & GB/T10228, GB109411, GB4208, GB6450

· Structural features

Transformer Core
1. The core is made of high quality grain-oriented cold-rollled silicon steel of high magnetic conductivity, by using 45°five-step overlapping method to reduce the no-load loss and no-load current.
2. Simulation analysis method is applied for the core design, thus to precisely and effectively calculate the vibration frequency and scale.
3. Flexible connections are adopted between the core and coils, core and clamps. With these measures, transformer's noise level has been improved by 10-15dB over the conventional products.

Note: due to the constantly updated products, shape size and product weight in the table will have some changes, please refer to provide the appearance size chart when ordering.

Transformer Test Report
For all transformers developed and supplied by Hengfengyou, Type tests and Specials Tests have been carried out in internationally-recognized independent test lab, and test reports have been obtain, including:
1. C2/E2/F1 test report for cast resin dry type transformer
2. Aging test report for cast resin dry type transformer
3. Aseismatic report for cast resin dry type transformer
4. Type and special test reports for class 1E dry type transformer for nuclear power station application
5. Type and special test reports for various traction/excitation trasnformers
6. . Type and special test reports for amorphous alloy core dry type transformer
7. Type and special test reports for three-phroof (salt-fog, midew, humdid-heat) performance
