Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | HENGFENGYOU |
Certification: | ISO IEC CB COC KEMA SNI SABS CCC |
Model Number: | SCB10 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 |
Price: | 200-200000/piece |
Packaging Details: | wooden case |
Delivery Time: | 15 DAYS |
Payment Terms: | LC T/T |
Supply Ability: | 5000 pieces/year |
Detail Information |
|||
Rated L. V: | 0.4kv Or Customized | Capacity: | 50~2500kVA Or Customized |
---|---|---|---|
Product Type: | Dry Type | Winding: | Cooper Winding |
Enclosure: | IP20/IP23 | Reference Standards: | IEC60076 |
Rated H. V.: | 35kv Or Customized | Core Material: | Silicon Lamination/Amorphous Alloys |
High Light: | cast resin dry type transformer,dry cast resin transformers |
Product Description

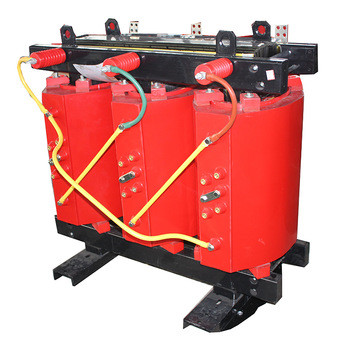

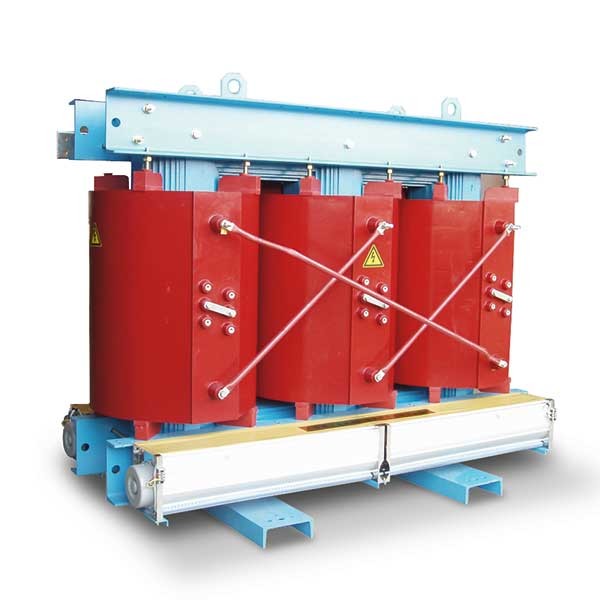

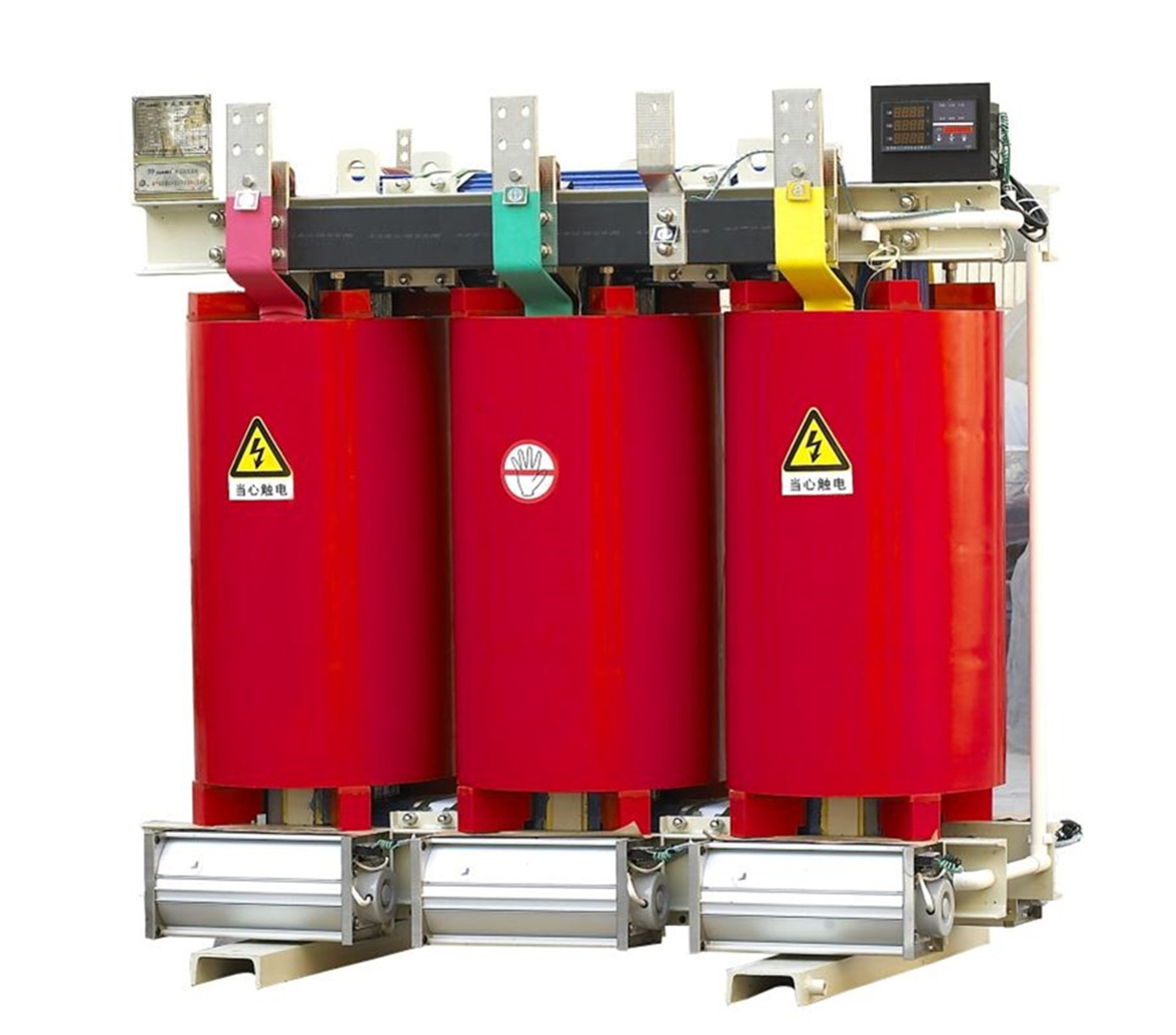

Dry Transformer Resin Casting Dry Type Power Transformer
10KV 10~2500KVA Cast resin Dry Type distribution transformer
General Description:
The product of this latest series are resin cast transformers reinforced by glass fiber grid. Resin is fed by flow control pump and static control in order to prevent coils from alligator crack. The advanced cast technique ensures the resin mixture fully immerses into the space between turns and segments in order to ensure the dielectric strength and minimum partial discharge(≤5PC).
Environmental Conditions:
1. Altitude: <1000m indoor
2. Max .ambient: temperature +40ºC
3. Max. daily: average temperature +30ºC
4. Max .annual: average temperature +20ºC
5. Min. temperature -5ºC
6. Supply transformer operate under special conditions according to customer requirements.
Chracteristics
1. Thin resin structure that never cracks
2. Epoxy resin vacuum pressure casting process
3. Iron core model simulation analysis
TECHNICAL INDEX
RATED CAPACITY | VOLTAGE COMBINATION | CONNECTION GROUP | LOSS (KW) | NO-LOAD CURRENT | SHORT-CIRCUIT IMPEDANCE | WEIGHT(KG) | ||||||
(KVA) | HV(KV) | HIGH-VOLTAGE TAPPING RANGE | LV (KV) | SYMBOL | NO-LOAD | ON-LOAD | (%) | (%) | OIL WEIGHT | GROSS WEIGHT | ||
30 | 6 6.3 10 10.5 11 |
5% | 0.4 | Dyn11 Yzn11 Yyn0 |
0.13 | 0.63/0.60 | 2.3 | 4 | 75 | 295 | ||
50 | 0.17 | 0.91/0.87 | 2 | 88 | 395 | |||||||
63 | 0.2 | 1.09/1.04 | 1.9 | 95 | 420 | |||||||
80 | 0.25 | 1.31/1.25 | 1.9 | 103 | 480 | |||||||
100 | 0.29 | 1.58/1.50 | 1.8 | 115 | 540 | |||||||
125 | 0.34 | 1.89/1.80 | 1.7 | 130 | 645 | |||||||
160 | 0.4 | 2.31/2.20 | 1.6 | 145 | 740 | |||||||
200 | 0.48 | 2.73/2.60 | 1.5 | 175 | 885 | |||||||
250 | 0.56 | 3.20/3.05 | 1.4 | 195 | 1010 | |||||||
315 | 0.67 | 3.83/3.65 | 1.4 | 230 | 1205 | |||||||
400 | 0.8 | 4.52/4.30 | 1.3 | 255 | 1375 | |||||||
500 | 0.96 | 5.41/5.15 | 1.2 | 285 | 1620 | |||||||
630 | Dyn11 Yyn0 |
1.2 | 6.2 | 1.1 | 4.5 | 350 | 1960 | |||||
800 | 1.4 | 7.5 | 1 | 405 | 2310 | |||||||
1000 | 1.7 | 10.3 | 1 | 490 | 2690 | |||||||
1250 | 1.95 | 12 | 0.9 | 550 | 3315 | |||||||
1600 | 2.4 | 14.5 | 0.8 | 625 | 3985 |
