2020 Hot sale Energy Saving 800kva Oltc 10kv/0.4kv Distribution Transformer Low Voltage High Performance

Product Details:
Place of Origin: China
Brand Name: HENGFENGYOU
Certification: ISO IEC CB COC KEMA SNI SABS CCC
Model Number: s11
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200-200000/piece
Packaging Details: wooden case
Delivery Time: 15 DAYS
Payment Terms: LC T/T
Supply Ability: 5000 pieces/year
Contact Now

Detail Information

Model Number:: Sh15-M-2000kva Phase: Three
Standard: IEC ANSI BIL IEEE High Voltage:: 6/6.3/10/10.5/11KV
Type: Oil Usage: Power
Certification:: ISO/3C Rated Capacity: 2000kva
Low Voltage: 0.415
High Light:

oil immersed distribution transformer

,

oil immersed power transformer

Product Description

Best Selling 800kva oil-immersed transformer Full Sealed 3 Phase

11Kv 33Kv 800Kva Power Transformer


Product Introduction



MainTechnicalParametersfor10KVlevel,SH15-MSeriesamorphous
alloydistribbutiontransformer
Rated
Power
(kva)!
High
Voltage
(kV)
H.V.Tap
range
Low
Voltage
(kV)
Connection
symbol
Short
Circuit
Impendenc
(%)
No-load
Ioss(W)
On-load
loss(W)
Noload
current
(%)
3 6
6.3
10
10.5
11
+5%
+2x2.5
%
0.4 Dyn11
Yyn0
4 33 600 1.7
  43 870 1.3
63 50 1040 1.2
8 6 1250 1.1
100 75 1500
125 85 1800 0.9
160 100 2200 0.7
200 120 2600 0.7
250 140 3050 0.7
315 170 3650 0.5
400 200 4300 0.5
500 240 5150 0.5
630 4.5 320 6200 0.3
800 380 7500 0.3
1000 450 10300 0.3
1250 530 12000 0.2
1600 630 14500 0.2
2000 5 75 17400 0.2
2500 90 20200 0.2

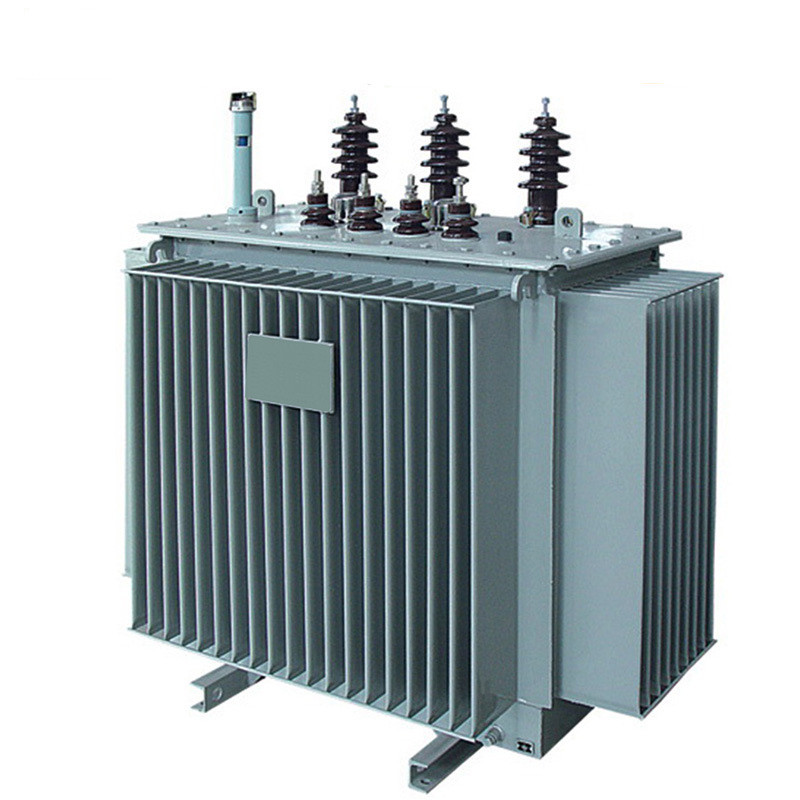

2020 Hot sale Energy Saving 800kva Oltc 10kv/0.4kv Distribution Transformer Low Voltage High Performance 0



Main functions and features



01. S(B)H15 series amorphous alloy full-sealed transformer is a novel energy-saving material made.

02. Oil box is sealed, free from maintenance. Box is sealed, free from maintenance.

03. Use Dyn11 to connect other parts, reduce the influences by network wave, improve the power supply.

04. Compared with S9 series with silicon sheet, the no-load loss of the transformer with amorphous alloy

core is reduced by 70%-80%, no-load current reduced by 20%.

05. The core is clamped with sheet-formed frame structure and the low-voltage coil is of a foil winding

type so as to render a low loss and a high short-circuit withstand.

06. A model S(B)H15 amorphous alloy product adopts a single-frame or three-phase five-legged spiral core.

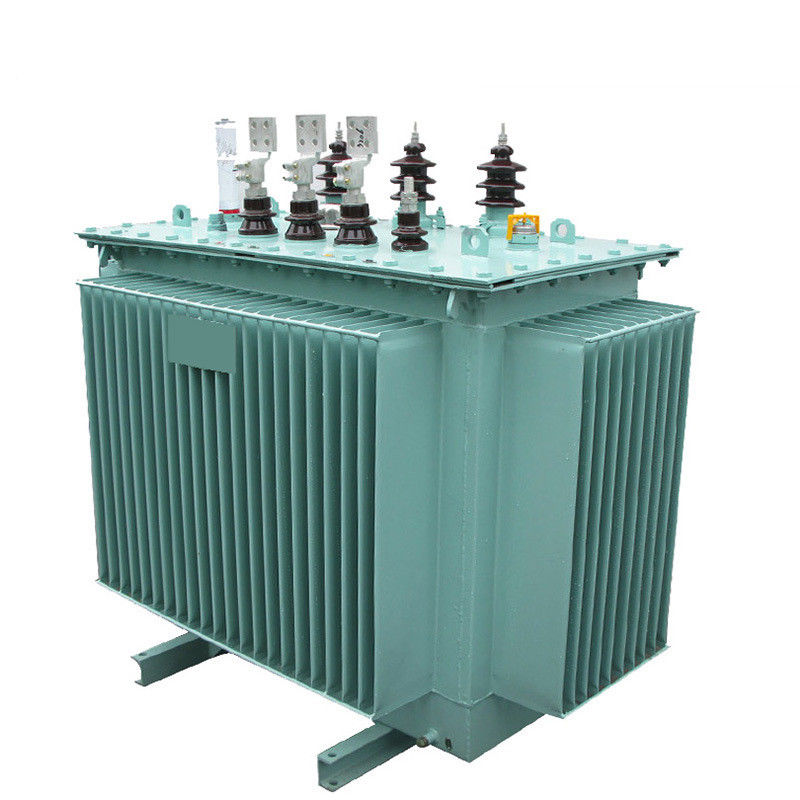

2020 Hot sale Energy Saving 800kva Oltc 10kv/0.4kv Distribution Transformer Low Voltage High Performance 1







Company profile


Qingdao Hengfengyou Electrical Engineering Co. , Ltd. is one of the large-scale electric complete
sets of manufacturers in China, specializing in oil-immersed transformers, dry-type transformers,
high-voltage Cabinets, low-voltage cabinets and substation manufacturing specialized electrical
enterprises. The company is located in the beautiful coastal city of china-qingdao. The company
has a registered capital of 10 million yuan, 20 senior technical personnel, more than 500 employees,
and a sound sales and service system, annual output value of US $1 billion, the products sell well at
home and abroad.

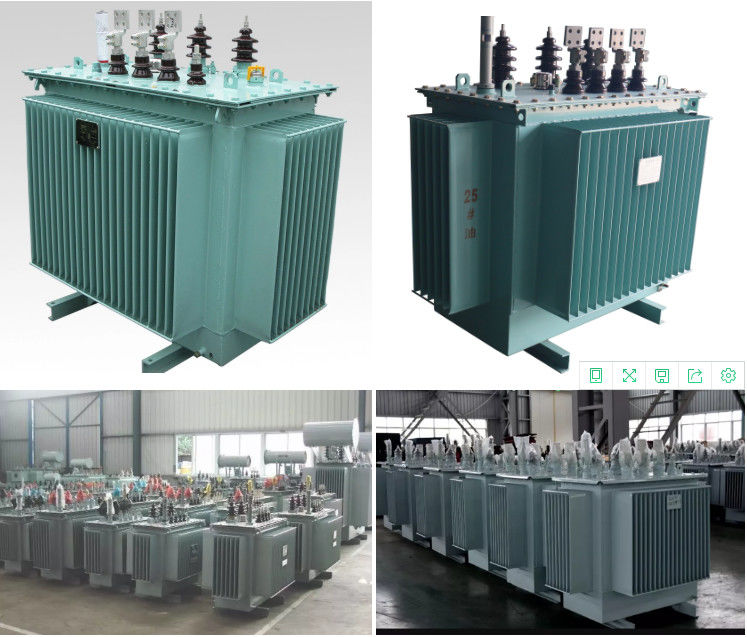

2020 Hot sale Energy Saving 800kva Oltc 10kv/0.4kv Distribution Transformer Low Voltage High Performance 2
