Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | HENGFENGYOU |
Certification: | ISO IEC CB COC KEMA SNI SABS CCC |
Model Number: | 35kv |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 |
Price: | 500-30000 |
Packaging Details: | wooden case |
Delivery Time: | 15 DAYS |
Payment Terms: | LC T/T |
Supply Ability: | 5000 pieces/year |
Detail Information |
|||
Model NO: | NO. S11-6300/35 | Capacity: | 6300kVA |
---|---|---|---|
Voltage: | 35kv | Material: | Copper |
Frequency: | 50/60Hz | Model Number:: | Customized |
Frequency Characteristics: | Power Frequency | ||
High Light: | three phase oil immersed transformer,oil immersed distribution transformer |
Product Description
Description
Features:
1. Low loss, low noise
2. Low impedance
3. Operation reliability
4. Pretty outline and compact structure
Working conditions
1. Altitude: +2500m
2. Ambient temperature: -25~+40
3. Seismic intensity≥ 7 degrees
External protection measures: Heavy gas tripping, Light gas alarming, pressure release valve protection and oil over temperature alarming. Transformer uses free hanging core structure.
The design and test of this kind of rectifier transformer according to the criteria of JB/T8636-2008 and GB6451-2008 to implement and assess.
Transformer core adopts the orientation of 27DQ-120 by cold-rolled silicon steel sheet(Wisco production ); Coil adopts the TMR type of oxygen-free copper paper to cover wire; The oil of transformer adopts the 25 heat conduction oil refined by kelamayi crude oil, cleaner and resistant to high pressure.

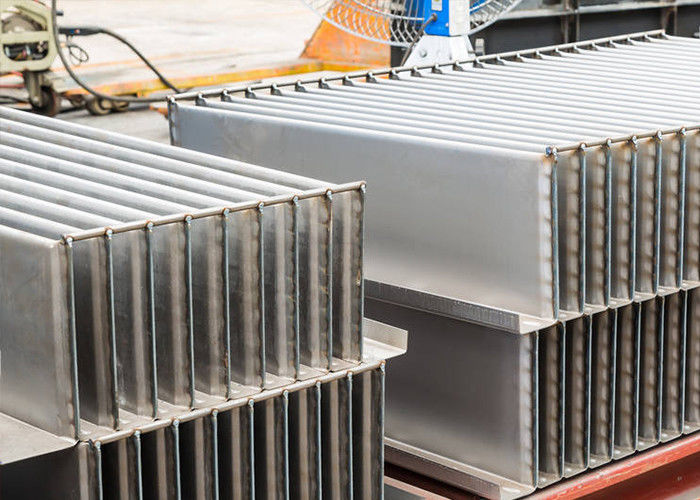

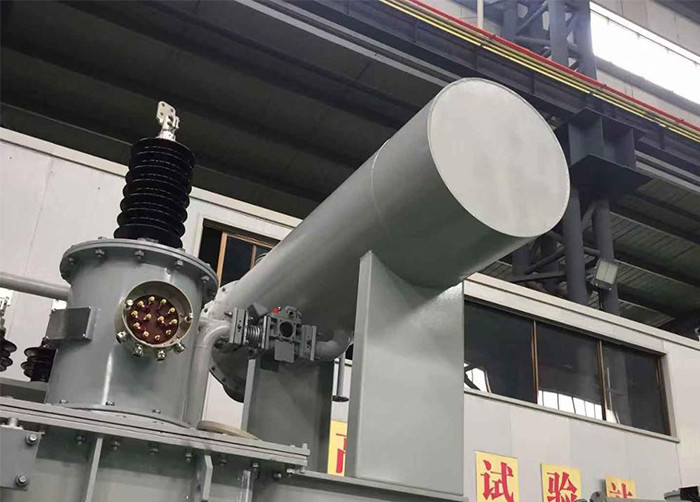

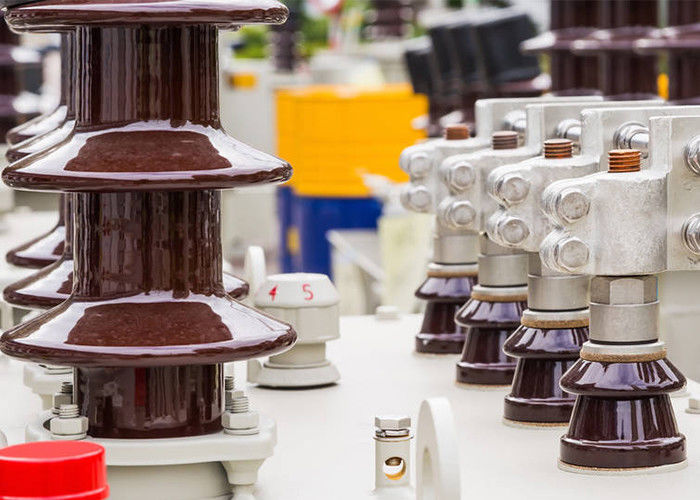

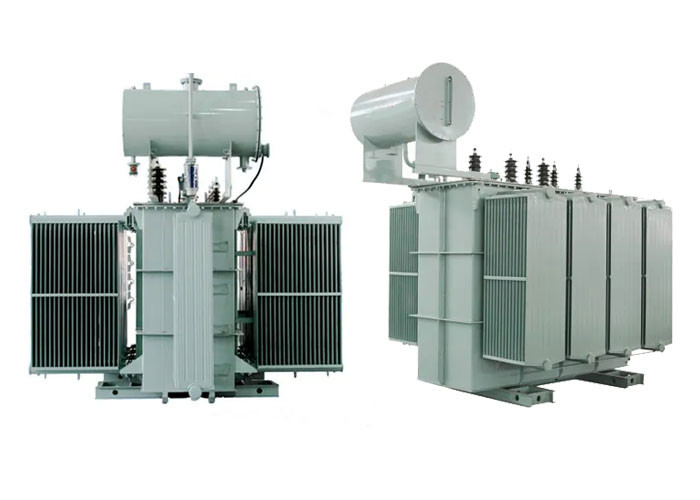

35KV S11 series three-phase power transformer | ||||||||||||
Model | voltage combination KV | connection symbol | no-load loss KW | load loss KW | impedance % | no-load current % | weight Kg | outline dimension mm | gauge mm | |||
HV | LV | body | oil | total | ||||||||
S11-1600/35 | 35 ±2*2.5% or ±3*2.5% | 6.3 | Y,d11 or D,y11 | 1.85 | 16.67 | 6.5 | 0.8 | 2550 | 1380 | 5550 | 2580*1700*2530 | 820*1070 |
S11-2000/35 | 2.3 | 19.24 | 6.5 | 0.78 | 3130 | 1630 | 6350 | 2660*1890*2660 | 820*1070 | |||
S11-2500/35 | 2.72 | 20.65 | 6.5 | 0.75 | 3800 | 1920 | 7950 | 2750*2000*2800 | 820*1070 | |||
S11-3150/35 | 3.35 | 25.2 | 7 | 0.75 | 4360 | 2200 | 9300 | 2880*2050*2950 | 1070*1070 | |||
S11-4000/35 | 4 | 29.5 | 7 | 0.75 | 5190 | 2380 | 10900 | 3000*2260*3000 | 1070*1070 | |||
S11-5000/35 | 6.6 | 4.8 | 32.8 | 7 | 0.7 | 6290 | 2650 | 12300 | 3120*2300*3150 | 1070*1070 | ||
S11-6300/35 | 10 | 5.7 | 35.9 | 7.5 | 0.6 | 7200 | 3150 | 14200 | 3180*2330*3200 | 1070*1070 | ||
S11-8000/35 | 10.5 | YN,d11 or D,yn11 | 7.8 | 43.2 | 7.5 | 0.55 | 8950 | 3730 | 16900 | 3320*2850*3400 | 1505*1505 | |
S11-10000/35 | 8.65 | 48.3 | 7.5 | 0.55 | 11000 | 4120 | 20200 | 3530*2980*3450 | 1505*1505 | |||
S11-12500/35 | 10.7 | 55.5 | 8 | 0.45 | 12850 | 4300 | 22500 | 3730*3060*3500 | 1505*1505 | |||
S11-16000/35 | 13.2 | 67.3 | 8 | 0.45 | 16300 | 5200 | 29300 | 4000*3320*3700 | 1505*1505 | |||
S11-20000/35 | 15.3 | 77.9 | 8 | 0.4 | 19500 | 6020 | 35800 | 4100*3400*3830 | 1505*1505 | |||
S11-25000/35 | 17 | 94.3 | 8 | 0.36 | 21800 | 6820 | 39300 | 4250*3530*4050 | 1505*1505 | |||
S11-31500/35 | 22.22 | 119.3 | 8 | 0.32 | 25350 | 9200 | 44950 | 4400*3600*4300 | 1800*1505 |
1. OEM is available.
2. Your inquiry related to our product & price will be replied within 24 hours
3. Well-trained & experienced staff are to answer all your inquiries in English
4. Working time: 8:00am ~17:45pm, Monday to Saturday. (UTC+8)
5. Customized solution & perfect after-sale service
6. Payment: we can accept T/T, L/C, Western Union.
7. For large order, engineer can be sent to your country for on-site mainternace instructions.
Distribution transformer is one of the important equipments in power supply and distribution syst
of industrial and mining enterprises and civil buildings. It reduces the network voltage of 106 kV or
35 kV to the bus voltage of 230 / 400V. This product is suitable for AC 5060 HZ, three-phase maximum
rated capacity of 2500 KVA single-phase maximum rated capacity of 833 KVA, generally do not
recommend the use of single-phase transformer, can be used in indoor and outdoor, capacity of 315 KVA
and below can be installed on the Rod The ambient temperature shall not be higher than 40 °C, not lower
than-25 °c, the maximum daily average temperature shall be 30 °c, the maximum annual average
temperature shall be 20 °c, the relative humidity shall not exceed 90% the ambient temperature shall be
25 °C, and the altitude shall not exceed 1000m. If it does not conform to the above-mentioned conditions,
it shall be adjusted according to the relevant provisions of GB6450-86. Basic Information
