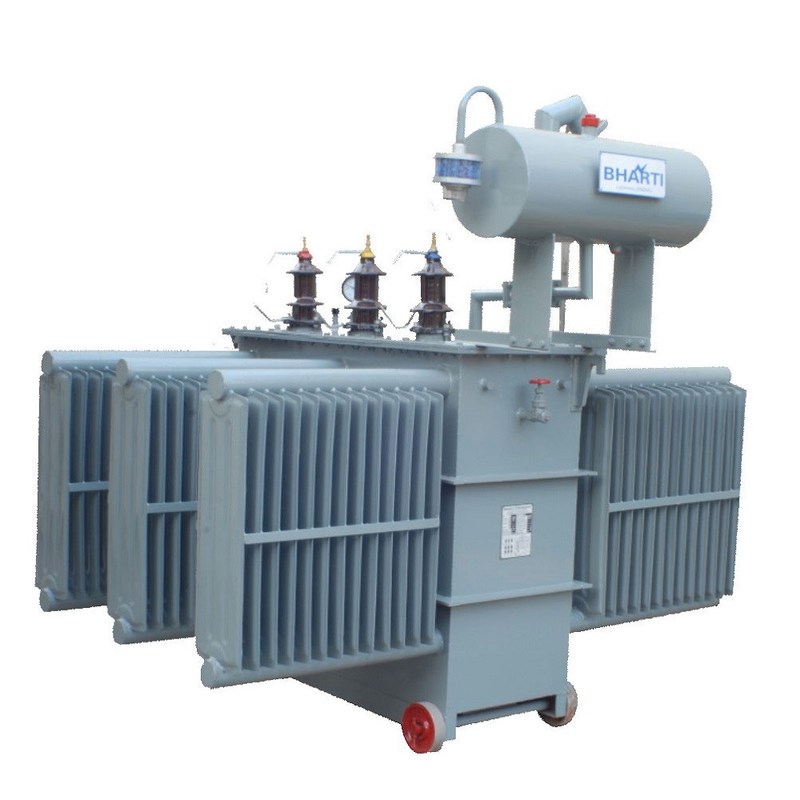

Three Phase 10kVA Oil Immersed Electrical Transformer

Three Phase 10kVA Oil Immersed Electrical Transformer

This transformer can change the electrical net voltage into the voltage system or load needed, which realize electrical energy's transit and allot. This kind of transformer can take replace of silicon steel iron core transformer and widely used in the outdoor distribution system. Large quantity of this product put into use may save the energy and reduce air-pollution.
It is extremely suit for the area lack of electrical energy, big load fluctuate, difficult to maintenance. As the transformer adopt ominiseal structure, it can be in motion in heavy humidity and best forthe city and rural distribution network.

Typical test values and performances are performed in the painting lab on steel plates during the whole painting process in order to confirm the following:
• Minimum paint thickness film (ISO 2808): 70µm
• Specular gloss factor at 60 Deg (ISO 2813): 90 +/- 5%
• Falling weight test (ISO 6272): 1Kg/050cm
• Erichsen cupping test (ISO 1520): 08mm
• Scratch test (Adhesion ISO 2409): 0
• Bend Test (cylindrical mandrel ISO 1519): 3,0mm
• Salt spray (Fog) test (ISO 7253): Over 1000 Hours
