SC10 35KV Cast Resin Dry Type Power Transformer High Performance Power Transformer

Product Details:
Place of Origin: China
Model Number: SCB10,11,12,13,15
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200-200000/piece
Packaging Details: wood pack
Delivery Time: 15 DAYS
Payment Terms: T/T
Supply Ability: 5000 pieces/year
Contact Now

Detail Information

Rated Capacity: 30-5000kva Type: Dry Type Transformer,Cast Resin
Product Name: 3 Phase Dry Type Electrical Transformer 300kva Material: Copper,amorphmos Alloy
Input Voltage: 11kv/10.5kv/10kv/6.3kv/6kv Efficiency: High Efficiency
High Light:

industrial power transformer


power distribution transformer

Product Description

SC10 35KV Cast Resin Dry Type Power Transformer High Performance Power Transformer


Note: Due to continuous product improvement, the dimensions provided in this sample are for reference only. If necessary, our company can design and produce according to user requirements. Please contact the company in time.


Products introduction

SC10 35KV Cast Resin Dry type transformer 30-5000kva high performance power transformer made in china

Dry-type transformers are widely used in local lighting, high-rise buildings, airports, docks CNC machinery and other places, simply that dry-type transformers refers to the core and the winding is not immersed in the insulating oil transformer.

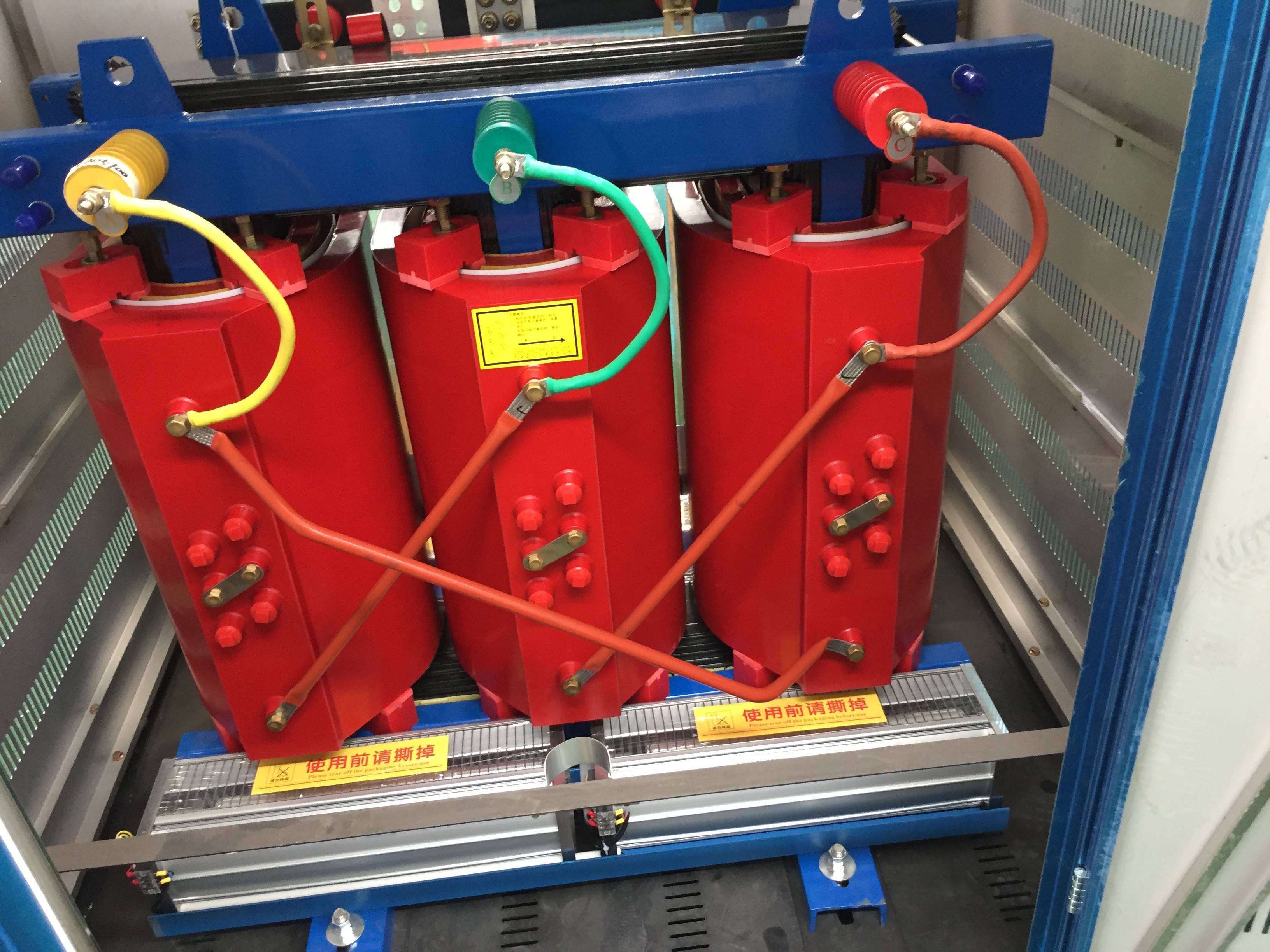

SC10 35KV Cast Resin Dry Type Power Transformer High Performance Power Transformer 0


Products details:

1. The iron core is made of high-quality cold-rolled oriented silicon steel sheet, the surface is specially treated with protective resin, and full-inclined seam lamination structure is adopted.

2. The low-voltage coil is of foil winding structure made of high-quality steel foil. The high-voltage coil is of layer structure formed by vacuum epoxy casting technique. Transformers with this type of winding shows low partial discharge compared with similar product ;

3.This model features high mechanical strength, strong short-circuit resistance, good dust-proof and anti-fouling performance. Its service life is longer than another dry transformer.

4. The product’s beautiful stainless-steel shell is durable and can provide better protection for the electrified parts of the transformer. It works well outdoors.

5. With excellent moisture-proof and corrosion-resistant performance, the product is safe, fire-proof and pollution-free. It’s especially suitable for working in extremely harsh environmental conditions, and can restart without dry treatment after shutdown.

6. Good heat dissipation performance and strong overload capacity enables it operate with higher capacity when forced air cooling.


Core Core-type Transformer Cooling Method Dry-type Transformer
Winding Type Auto-transformer Certification ISO9001-2000, ISO9001, CCC
Usage Distribution Transformer Frequency Characteristics Power Frequency
Shape of Core Ring Material Epoxy Resin
Rate High Voltage 6-35kv Rate Low Voltage 0.4kv
Connection Symbol Yyn0, Dyn1 Insulation Level Li75AC35/AC3, Li125AC55/AC3, Li170AC70/AC3
Use for Industry Rated Capacity 30-2500kVA
Trademark Hengfengyou Specification Length: 1200mm-2550mm, Width: 1100-1500
Origin Qingdao,China HS Code 8504329000

Note: due to the constantly updated products, shape size and product weight in the table will have some changes, please refer to provide the appearance size chart when ordering.


Use condition:

1. The maximum ambient air temperature shall not exceed 40 ℃, and the minimum shall be not below - 15 ℃;

2. The altitude shall not exceed 1000m. If special customized transformers and low-voltage components are used, the altitude can reach 4000m;

3. The vertical inclination is no more than 5 °, and no violent vibration and impact;

4. The air humidity is not more than 90% (+ 25 ℃);

5. Places without gas and conductive dust that will seriously affect the insulation of transformer, no explosion hazard and corrosion of electrical components;

6. Outdoor wind speed shall not exceed 35m / s.

7. If service conditions exceed the above, specially customized product is available with our company through mutual communication.

Order Information

1. The customer shall advise main operating parameters of the transformer: Transformer capacity,Type of transformer,Input voltage level, Output voltage level,Wiring group.

2. Other ordering requirements


SC10 35KV Cast Resin Dry Type Power Transformer High Performance Power Transformer 1

SC10 35KV Cast Resin Dry Type Power Transformer High Performance Power Transformer 2
