Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | HENGFENGYOU |
Certification: | ISO IEC CB COC KEMA SNI SABS CCC |
Model Number: | SCB10,11,12,13,15 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 |
Price: | 200-200000/piece |
Packaging Details: | wood pack |
Delivery Time: | 15 DAYS |
Payment Terms: | T/T |
Supply Ability: | 5000 pieces/year |
Detail Information |
|||
Type: | Dry Type,transformer,Cast Resin | Material: | Copper, Aluminum |
---|---|---|---|
Usage: | Power Distribution Transformer | Phase: | Three,Single |
Frequency: | 50/60Hz | Rated Capacity: | 30-5000kva |
Input Voltage: | 11kv/10.5kv/10kv/6.3kv/6kv | ||
High Light: | industrial power transformer,power distribution transformer |
Product Description

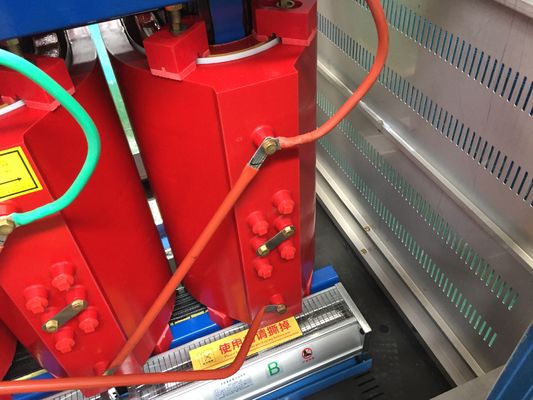

Dry Type Power Transformer 5000kva High Frequency
Note: Due to continuous product improvement, the dimensions provided in this sample are for reference only. If necessary, our company can design and produce according to user requirements. Please contact the company in time.
SCBH15 Series amorphous alloy dry-type transformer is a new type energy-saving transformers, which combines technology advantage with low-loss of amorphous alloy and good- insulation and strong mechanical strength of traditional epoxy resin pouring transformer.
By comparing with the traditional SCB10 series silicon steel dry-type transformers, it can approx, reduce no-load loss by 70%, no-load current by 80%, and operating temperature by 30-40℃; the service life extends approx.10 years. Moreover, SCBH15 Series transformer has the advantages of fire resistance, flame retardant, high reliability and maintenance free, which can be used in the power load center, suitable for places with higher demands in fire protection and higher safe demand environment
Structural Features
1. Ultra low loss , energy and high electricity efficiency --- loss saving 70% compared with the traditional transformer no-Load electricity consumption;
2. Three column amorphous core,adopting the invention patenttechnology which has Ultra low working noise and solve thoroughly high working noise;
3. Low energy consumption and low loss characteristics of amorphous materials can save power consumption .reduce thepower generation, decrease relative S02 and C02 exhaustemission, reduce environmental pollution and greenhouse effect, it is maintenance free and zero pollution;
4. Low working temperature,the full load operating temperature less than 70℃,the insulation degradation slow so that the service life is long very much;
5. High overload capacity,high mechanical strength;
6. The amorphous core retain has the characteristics of low ironloss and low magnetizing current when passing high frequencyflux, so it will not cause core saturation and posses good harmonic resistance;
7. Fast capital recovery.
10/0.4kV Dry Type transformer Technical parameters(Second level of energy efficiency)
Rated capacity (kVA) |
Voltage combination | Connected group label |
No-load loss (W) |
Load loss(W) | No-load current(%) |
Impendace voltage (%) |
sound power level (dB) |
Exterior size (L x w x h) |
Total weight (kg) |
||||
High voltage(kV) |
tap range |
Low Voltage (kV) |
|||||||||||
130°C(B) | 155°C(F) | 180°C(H) | |||||||||||
100°C | 120°C | 145°C | |||||||||||
30 | 6 6.3 6.6 10 10.5 11 |
±2 x 2.5 ±5 |
0.4 | Dyn11 | 150 | 670 | 710 | 760 | 0.6 | 4.0 | 57 | 900 x 900 x 800 | 300 |
50 | 215 | 940 | 1000 | 1070 | 0.6 | 955 x 900 x 900 | 350 | ||||||
80 | 295 | 1290 | 1380 | 1480 | 0.6 | 58 | 985 x 950 x 960 | 400 | |||||
100 | 320 | 1480 | 1570 | 1690 | 0.6 | 1035x1250x980 | 450 | ||||||
125 | 375 | 1740 | 1850 | 1980 | 0.6 | 59 | 1060x1280x1000 | 500 | |||||
160 | 430 | 2000 | 2130 | 2280 | 0.6 | 1120x1320x1050 | 680 | ||||||
200 | 495 | 2370 | 2530 | 2710 | 0.5 | 60 | 1135x1330x1105 | 770 | |||||
250 | 575 | 2590 | 2760 | 2960 | 0.5 | 1170x1330x1165 | 900 | ||||||
315 | 705 | 3270 | 3470 | 3730 | 0.5 | 62 | 1185x1360x1225 | 1010 | |||||
400 | 785 | 3750 | 3990 | 4280 | 0.4 | 1210x1380x1300 | 1205 | ||||||
500 | 930 | 4590 | 4880 | 5230 | 0.4 | 63 | 1245x1400x1380 | 1400 | |||||
630 | 1070 | 5530 | 5880 | 6290 | 0.4 | 63 | 1295x1410x1355 | 1515 | |||||
1040 | 5610 | 5960 | 6400 | 0.3 | 6.0 | 63 | 1295x1410x1355 | 1515 | |||||
800 | 1210 | 6550 | 6960 | 7460 | 0.3 | 65 | 1375x1450x1480 | 1880 | |||||
1000 | 1410 | 7650 | 8130 | 8760 | 0.3 | 1430x1480x1525 | 2170 | ||||||
1250 | 1670 | 9100 | 9690 | 10300 | 0.25 | 67 | 1480x1500x1570 | 2525 | |||||
1600 | 1960 | 11000 | 11700 | 12500 | 0.25 | 1500x1520x1710 | 2980 | ||||||
2000 | 2440 | 13600 | 14400 | 15500 | 0.20 | 69 | 1570x1550x1735 | 3480 | |||||
2500 | 2880 | 16100 | 17100 | 18400 | 0.20 | 1625x1600x1825 | 4080 | ||||||
1600 | 1960 | 12200 | 12900 | 13900 | 0.25 | 8.0 | 67 | 1500x1520x1710 | 2980 | ||||
2000 | 2440 | 15000 | 15900 | 17100 | 0.20 | 69 | 1570x1550x1735 | 3480 | |||||
2500 | 2880 | 17700 | 18800 | 20200 | 0.20 | 1625x1600x1825 | 4080 |
Note: due to the constantly updated products, shape size and product weight in the table will have some changes, please refer to provide the appearance size chart when ordering.
OUR SERVICE:
1. quick response in before sales period help you got order.
2. excellent service in production time let you know each step we made.
3. reliable quality solve you after sale headache.
4. long period quality warranty ensure you can buy without hesitate.
