Kyn61 Switchgear KYN61 36kV 40.5kV MV Metal Clad Air Insulated Switchgear Cabinet

Product Details:
Place of Origin: China
Brand Name: HENGFENGYOU
Certification: ISO IEC CB COC KEMA SNI SABS CCC
Model Number: KYN61-40.5
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200-20000/piece
Packaging Details: wooden case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 5000 piece/year
Contact Now

Detail Information

Model Number: KYN61-40.5 Type: Sealed
Standard: High Voltage Feature: Practical And Durable
Product Name: Metal-clad Switchgear Rated Voltage: 36kV/ 40.5kV
Quality: High Quality

Product Description

Kyn61 Switchgear KYN61 36kV 40.5kV MV Metal Clad Air Insulated Switchgear Cabinet

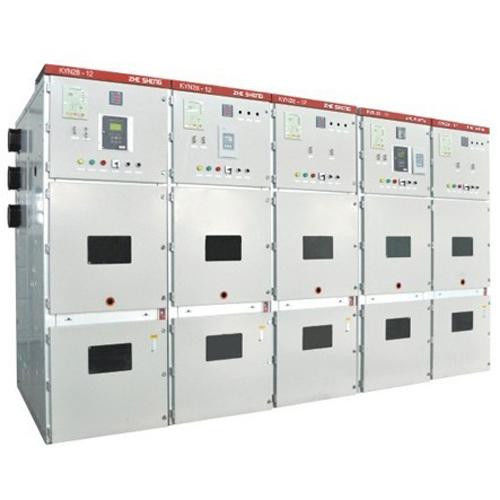

Kyn61 Switchgear KYN61 36kV 40.5kV MV Metal Clad Air Insulated Switchgear Cabinet 0Kyn61 Switchgear KYN61 36kV 40.5kV MV Metal Clad Air Insulated Switchgear Cabinet 1

Kyn61-40.5 (Z) type armored shifting open type ac metal closed switch cabinet (hereinafter referred to as the switch cabinet) is a three-phase ac 50Hz, rated voltage 40.5kv indoor complete distribution unit.As a power plant, substation and industrial and mining enterprises to receive and distribute electricity with the circuit control, protection and monitoring functions, but also can be used for frequent operations.
The switchgear conforms to GB/ t11022-1999, gb3906-2006 and DL 404-1997.

Technology parameters:
Item Unit Parameters
Rated Working Voltage V 400
Rated Working Voltage Hz 50/60
Rated Working Voltage Horizontal bus line A ≤400
  Vertical bus line A ≤1000
Rated short-time tolerant current(1s) kA 50
Rated peak tolerant current kA 105
Dielectric Strength V/1min 2500
Rated Insulation Voltage V 660
Out shell protection level   IP30/IP40
Shape dimension(Width×Length×Thickness) MM (600-1000)×1000×2200

Switchgear Structure

1. The cabinet structure adopts assembled structure, and the circuit breaker adopts handcart floor structure;
2. Equipped with a new type of composite insulated vacuum circuit breaker with good interchangeability and simple replacement;
3. Screw nut propulsion mechanism is installed in the vehicle frame, which can easily move the handcart and prevent damage to the propulsion structure due to improper operation;
4. All operations can be carried out in the closed state of the cabinet door;
5. The interlock between the main switch, handcart and switch cabinet door adopts the mandatory mechanical lock to meet the "five defense" function;
6. The cable room is full of space to connect multiple cables
7. Quick grounding switch is used for grounding and circuit short-circuit;
8. Enclosure protection class IP3X, handcart compartment door open, protection class IP2X;
9. The product conforms to gb3906-1991.dl 404-1997 and adopts the international iec-298 standard with reference.

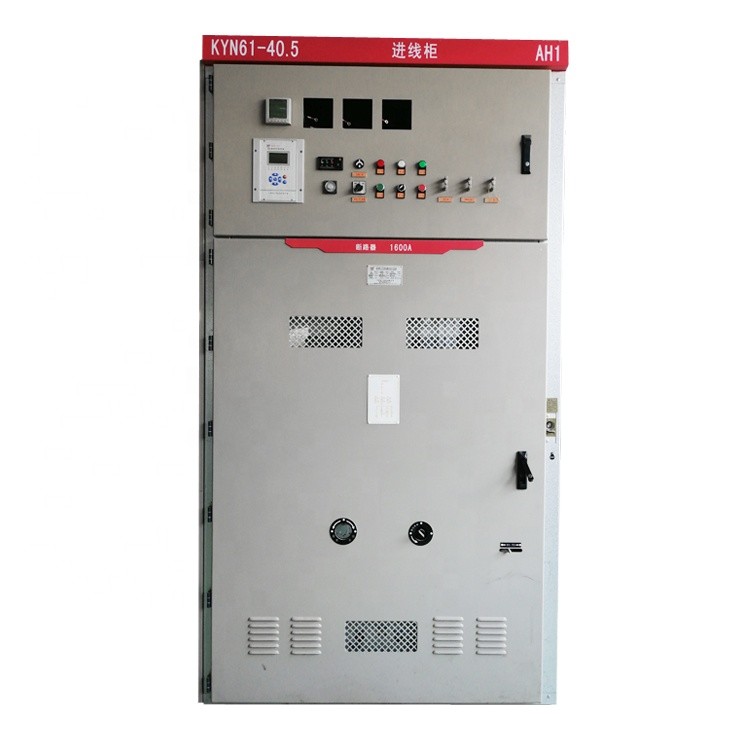

Kyn61 Switchgear KYN61 36kV 40.5kV MV Metal Clad Air Insulated Switchgear Cabinet 2
Our Services
We have established strict working procedures and standards in the development, production, sales and after-sales of electrical products, so as to provide customers with first-class products and the best service.
1. Our electrical engineer has more than 10 years of working experience
2.Our workshop workers are all skilled industrial workers who have received three months 'pre-job training
3. Our sales team has been extensively trained by management consultants to provide professional solutions for customers
4. Our technical team can provide customers with 24-hour technical support world wide
5. Our customer service team ensures that orders are delivered on time.

Pre-sale service:
1.ISO certified excellent Manufacturer
2. Third-party authoritative certifications: SGS, CE, CB, CNAS, CQC, CCC, etc
3. Flexible payment: T/T, LC, O/A
4. Sufficient inventory, fast delivery time and long validity of the price
5. The whole process of picture tracking can be realized in production and transportation
6. Experienced professional sales team and a strong technical team
7. Sincerely invite customers to visit the company for guidance

After-sales service:
1. If there is any quality problem after receiving the goods, you can return the goods free of charge or ship new products
2. We provide our customers with a 2-year product warranty
3. Provide 24-hour, 365-day technical guidance worldwide
4. The VIP customers enjoy our promotional activity

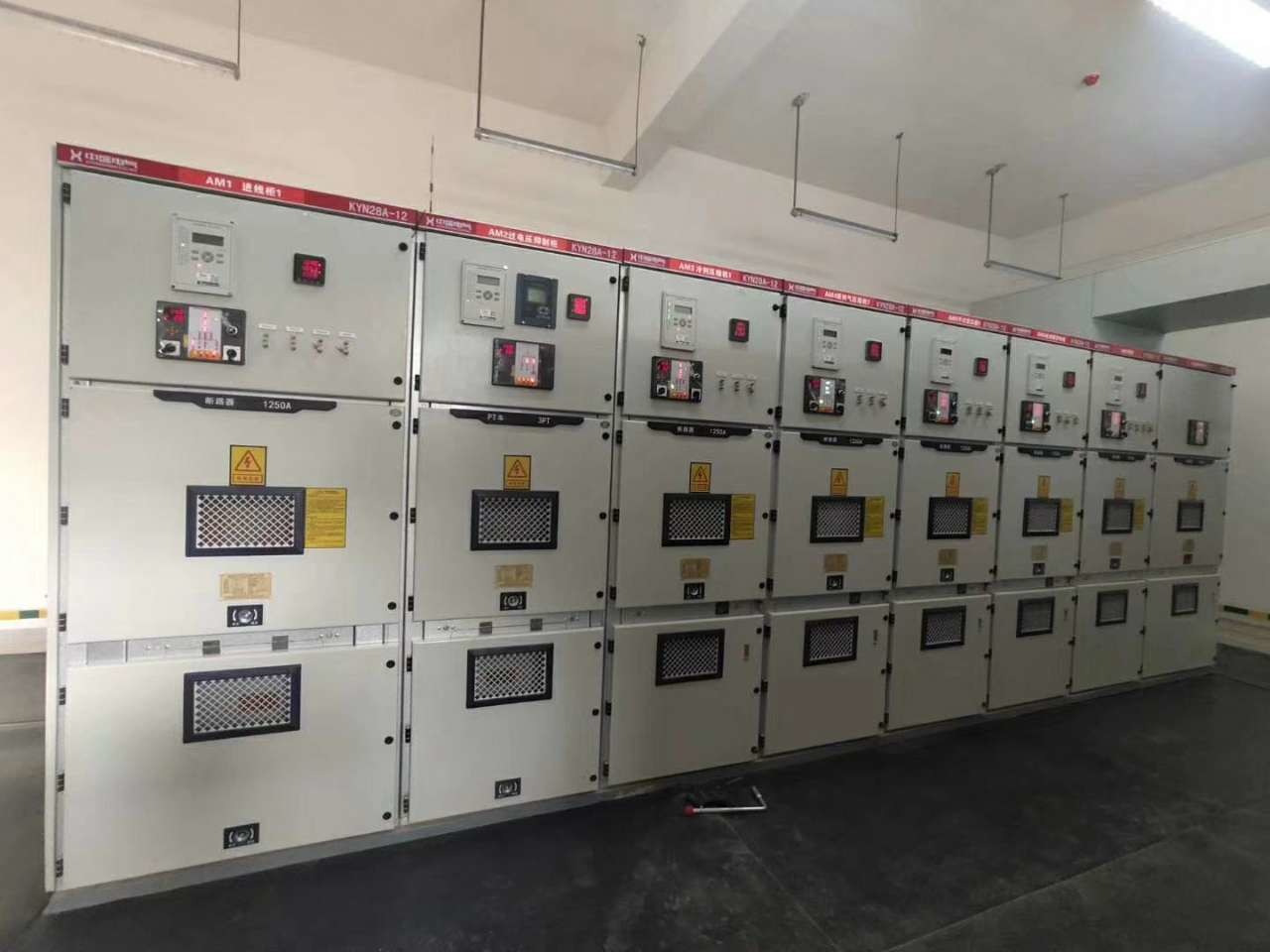

Kyn61 Switchgear KYN61 36kV 40.5kV MV Metal Clad Air Insulated Switchgear Cabinet 3Kyn61 Switchgear KYN61 36kV 40.5kV MV Metal Clad Air Insulated Switchgear Cabinet 3
