Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HENGFENGYOU |
| Certification: | ISO IEC CB COC KEMA SNI SABS CCC |
| Model Number: | ZGS |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 |
| Price: | 2000-200000/piece |
| Packaging Details: | wooden case |
| Delivery Time: | 30 days |
| Payment Terms: | LC T/T |
| Supply Ability: | 5000 pieces/year |
|
Detail Information |
|||
| Material: | Stainless Steel | Standard: | IEC60076 |
|---|---|---|---|
| Coil Structure: | Toroidal | Usage: | POWER |
| Name: | Wind Farm Substation | Model Number: | FZB-35/0.6-2000 |
| Phase: | Three | Color: | Customized Or Gray |
Product Description

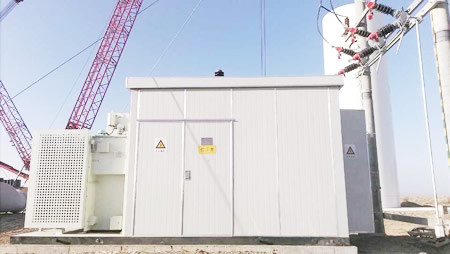

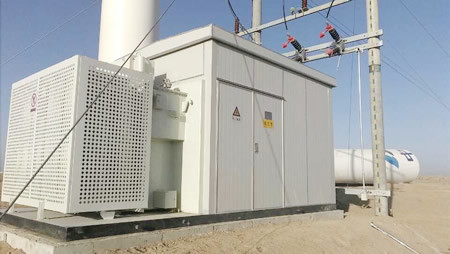

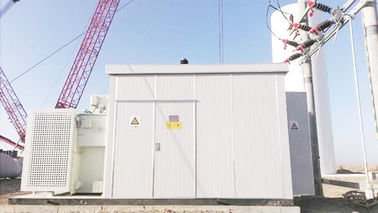

Wind farm Substation
Wind farm substation converts 690V voltage generated by wind generator into 10kV or 35kV, and sends power to power grid or users, so as to complete the task of wind power generation. This product of our company installs transformer, oil immersed load switch and high-voltage fuse in the oil tank. Transformer oil is the insulation medium and heat dissipation medium of the whole product, and the low-voltage side is equipped with necessary electrical protection elements. The product has the advantages of intelligence, reliable operation, small volume, light weight and convenient installation and use.
Use condition
1. Altitude: ≤ 2000m
2. Ambient temperature range: - 45℃ - + 45℃
3. Outdoor wind speed: ≤ 35m/s
4. Relative humidity: daily average value ≤ 95%, monthly average value ≤ 90%
5. Installation site: it is installed in the place without fire, explosion, serious pollution, chemical corrosion and severe vibration.
6. Beyond the above normal use environment conditions, customers can customize with our company.
7. The above is applicable to 50Hz, 10 / 35kV photovoltaic power generation system. The rated capacity of transformer is 500 ~ 1600kVA, which is dedicated to photovoltaic power generation.
Structure characteristic
1. The product structure is divided into three parts: high voltage room, low voltage room and transformer room, forming a "品" structure.
2. The product is totally enclosed structure, safe and reliable, reasonable and compact structure, beautiful appearance and small volume, which can effectively prevent the erosion of sand, rain, snow and salt fog.
3. High voltage room and low voltage room are isolated. The main preloaded equipment of the box body includes: arrester, load switch, transformer tap switch, protection fuse, oil level thermometer, oil level gauge, pressure release valve, oil drain valve and other accessories. The low voltage side is equipped with 690V main circuit breaker and over-voltage protector, and the complete set of automatic measurement and intelligent control system can be designed and installed.
Scope of application:
1.Urban public power distribution system,in the residential area,when downtown street load increases,and need to increase the transformer capacity.
2.Temporary power supply of construction site:existing buildings,the need to transformer or increase the use of electrical equipment,field operations and outdoor workplace power supply,such as oil,mining,port terminals,stations and so on.
| Staple Items | Annual Production Capability |
| Oil-immersed transformer | 2.5 million kVA |
| Dry-type transformer | 2 million kVA |
| Amorphous dry-type transformer | 1 million |
| Amorphous oil-immersed transformer | 2.28 million kVA |
| Pad-mounted transformer for wind power plant | 500 sets |
| Pre-fabricated substation for wind power plant | 500 sets |
| 10kV pad-mounted transformer/pre-fabricated substation | 500 sets |
| Arc suppression reactor earthing assembly | 360 sets |
| Reactor | 1.20 million kVA |
1. One of the drafters of the National Standard Mine Flameproof Mobile Substations (GB/T 8286-xxxx ), which will replace the existing national standard (GB/T 8286-2005 ) and it was submitted for trial in Beijing.
2. +20 years experience R&D team, derived from a 60 years of history transformer manufacturer in Changsha, Hunan, China since 1956.
3. Full range of transformer types with customized functions are available.
4. CE & ISO certificated.
Ordering instruction
1. Conceptual drawing or electrical schematic diagram of main circuit.
2. Model, specification and quantity of main components.
3. Incoming and outgoing line mode and cable specification, etc.
4. Other order requirements.
