Sh15 Amorphous Alloy Transformer Core Power Transformer Energy Saving ISO9001

Product Details:
Place of Origin: China
Brand Name: HENGFENGYOU
Certification: ISO IEC CB COC KEMA SNI SABS CCC
Model Number: sh15
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200-200000/piece
Packaging Details: wooden case
Delivery Time: 15 DAYS
Payment Terms: LC T/T
Supply Ability: 5000 pieces/year
Contact Now

Detail Information

Material: Copper Frequency: 50/60Hz
Phase: Three Certification: ISO9001
Coil Number: Other
High Light:

three phase oil immersed transformer

,

oil immersed distribution transformer

Product Description

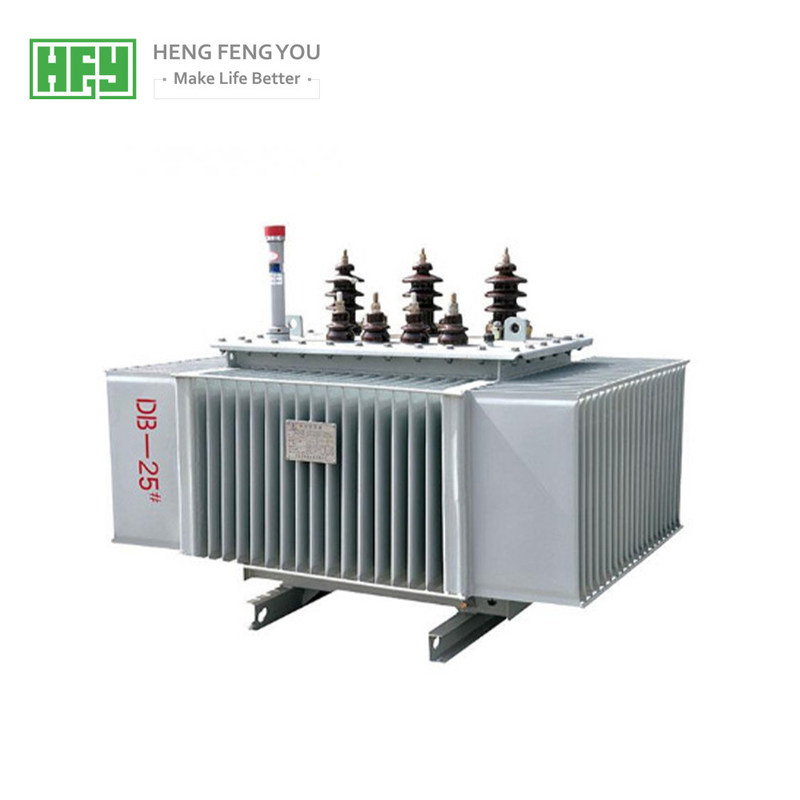

Sh15 International Standard 100kva / 6.3 kv / 400V oil-immersed Amorphous

Alloy core power transformer



Product feature



1. SH15 series amorphous alloy full-sealed transformer is an epoch-making technology and

trans-century "green" product. The iron base amorphous alloy core has high saturation

magnetic induction intensity, low loss(equivalent to 1/3-1/5 of silicon sheet), low corrective

force and low excitation current and good temperature stability. Compared with S9 series with

silicon sheet, the no-load loss of the transformer with amorphous alloy core is reduced by

70-80%, no-load current reduced by 50% and load loss reduced by 20%.



2. The amorphous alloy is a novel energy-saving material made with a fast and abrupt

solidification process and the metal atoms arrange in a disordered amorphous state and its

structure completely different from crystal of silicon steel makes it easily magnetized and

demagnetized. When this novel material is used in transformer core, a running transformer may

be easily subjected to 120 cycles/second of magnetizing and de-magnetizing process and thus

no-load loss of the core is greatly reduced. If the said alloy is used in oil-immersed transformer

Escape of harmful gases such as C02,S02, and NOX may be reduced and thus it is known as

"green material" of 21st century.



3. A model SH15 amorphous alloy product adopts a single-frame or three-phase five-legged

spiral core. The core is clamped with sheet-formed structure and the low-voltage coil is of a

foil winding type so as to render a low loss and a high short-circuit withstand. It has advanced

and rational structure and its overall performances reach international advanced level.

Sh15 Amorphous Alloy Transformer Core Power Transformer Energy Saving ISO9001 0

Sh15 Amorphous Alloy Transformer Core Power Transformer Energy Saving ISO9001 1

Rated
power
(kVA)
High
voltage
(kV)
H.V.Tap
range
Low
Voltage
(kV)
Connection
symbol
Short-circuit
Impedance
(%)
No-load
Loss
(W)
On-load
Loss
(W)
No-load
current
(%)
80 6.3
6.6
10
10.5.
+5%
+2x2.5%
0.4 Yyn0
Dyn1l
4 33 600 1.7
50 43 870 1.3
53 50 1040 1.2
80 60 1250 1.1
100 75 1500
125 85 1800 0.9
160 100 2200 0.7
200 120 2600 0.7
250 140 3050 0.7
315 170 3650 0.5
400 200 4300 0.5
500 240 5150 0.5
630 4.5 320 6200 0.3
800 380 7500 0.3
1000 450 10300 0.3
1250 530 12000 0.2
1600 630 14500 0.2
2000 5 750 17400 0.2
2500 900 20200 0.2



Sh15 Amorphous Alloy Transformer Core Power Transformer Energy Saving ISO9001 2
