Usage: | Power Electronic Distribution Transformer | Coil Number: | Double Winding |
---|---|---|---|
Phase: | Three | Rated Capacity: | 30-3000kva,2500kVA |
Product Name: | 3 Phase Dry Type Electrical Transformer 300kva | Material: | EXPOY RESIN,Copper |
Efficiency: | High Efficiency | ||
High Light: | cast resin dry type transformer,power distribution transformer |
Product Description

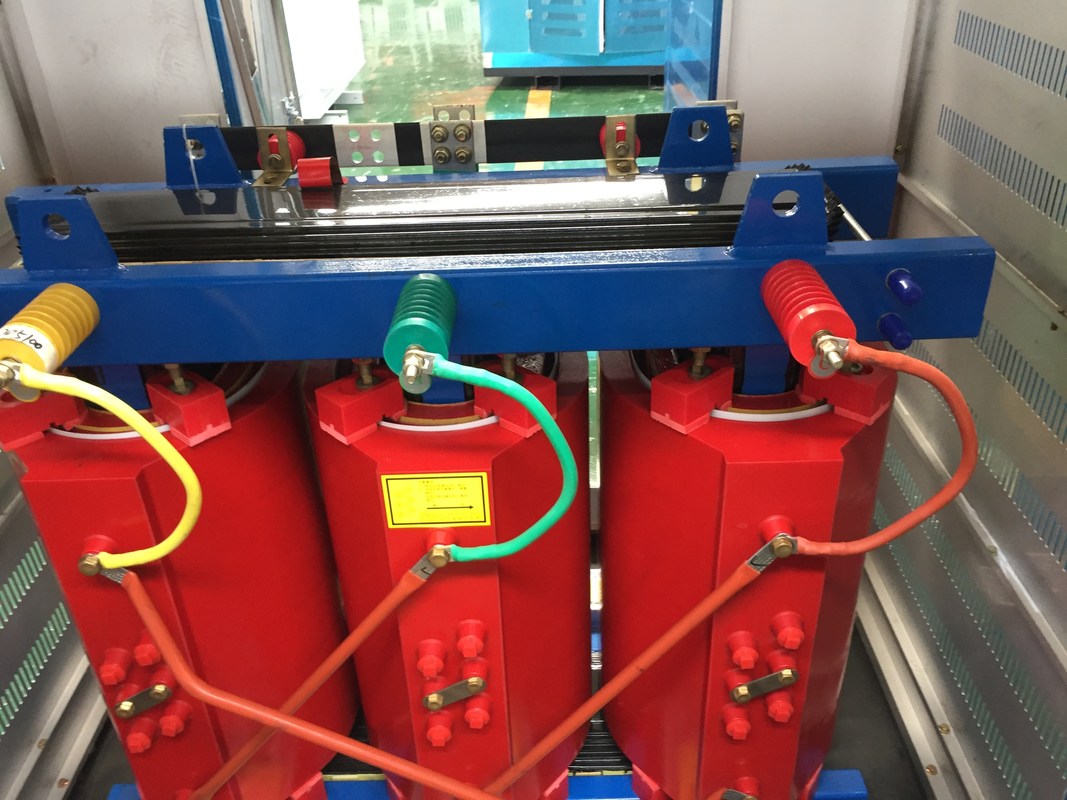

Scbh15 Amorphous Metal Dry Type Transformer Three Phase Double Winding Coil
Product introduction
SCBH15 is a maintenance-free and energy-saving transformer under advanced production technology. It has features of moisture-proof, fire-proof, explosion-proof, low partial discharge and high heat dissipation.
Amorphous alloy is super-rapid cooling system, which can spray molten iron, cobalt, boron and silicon onto a high-speed chassis and cool rapidly to form a thin strip from 0.02mm to 0.04mm.
Product Characteristics:
Low energy consumption:The adoption of isotropic soft magnetic material generates low magnetization power, high electrical resistivity and low eddy current consumption. The no-load loss and current of the core made of amorphous alloy are very low, only 1/3 of that of silicon steel sheet.
Strong corrosion resistance: the amorphous alloy core is fully wrapped by resin and high temperature resistant silica gel,n which effectively prevent corrosion and falling off of amorphous alloy fragments, and also provide better protection for the core and coil.
Low noise. Improvement of the structure of iron core and coil and adoptionof special noise -reduction materials greatly reducing the operation noise.
Strong short-circuit resistance. This product adopts three-phase five-column structure, and the iron core is protected by frame structure. Featured by low temperature-rise and strong heat dissipation, this productcan workby 150% rated load under air cooling condition. Perfect temperature control protection system is applied to provide reliable guarantee for safe operation of transformer
1. Transformer normal service conditions
The height above the sea level is below 1000m;
Highest air temperature +40ºC;
Highest daily average air temperature+30ºC;
Highest annual average air temperature +20ºC;
Lowest outdoor air temperature -25ºC.
(defines in detail when transformer in special service conditions )
2. Dry type transformer Technical parameters(First-level energy efficiency grade)
Rated capacity (kVA) |
Voltage combination | Connected group label |
No-load loss (W) |
Load loss (W) | No-load current (%) |
Impedance voltage (%) |
||||
High voltage (kV) |
(%) tap range |
Low Voltage (kV) |
||||||||
130°C(B) | 155°C(F) | 180°C(H) | ||||||||
100°C | 120°C | 145°C | ||||||||
50 | 20 22 24 |
±2X2.5 ±5 |
0.4 | Dyn11 YynO |
340 | 1160 | 1230 | 1310 | 2.0 | 6.0 |
100 | 540 | 1870 | 1990 | 2130 | 1.8 | |||||
160 | 670 | 2330 | 2470 | 2640 | 1.5 | |||||
200 | 730 | 2770 | 2940 | 3140 | 1.5 | |||||
250 | 840 | 3220 | 3420 | 3660 | 1.3 | |||||
315 | 970 | 3850 | 4080 | 4360 | 1.3 | |||||
400 | 1150 | 4650 | 4840 | 5180 | 1.1 | |||||
500 | 1350 | 5460 | 5790 | 6190 | 1.1 | |||||
630 | 1530 | 6450 | 6840 | 7320 | 1.0 | |||||
800 | 1750 | 7790 | 8260 | 8840 | 1.0 | |||||
1000 | 2070 | 9220 | 9780 | 10400 | 0.85 | |||||
1250 | 2380 | 10800 | 11500 | 12300 | 0.85 | |||||
1600 | 2790 | 13000 | 13800 | 14800 | 0.85 | |||||
2000 | 3240 | 15400 | 16300 | 17500 | 0.7 | |||||
2500 | 3870 | 18200 | 19300 | 20700 | 0.7 | |||||
2000 | 3240 | 16800 | 17800 | 19100 | 0.7 | 8.0 | ||||
2500 | 3870 | 20000 | 21200 | 22700 | 0.7 |
Note: Due to continuous product improvement, the dimensions provided in this sample are for reference only. If necessary, our company can design and produce according to user requirements. Please contact the company in time.
· Order instructions:
1. The customer needs provide main parameters of the transformer (input and output voltage, capacity, loss, etc.)
2. Other customer requirements
