Product Description

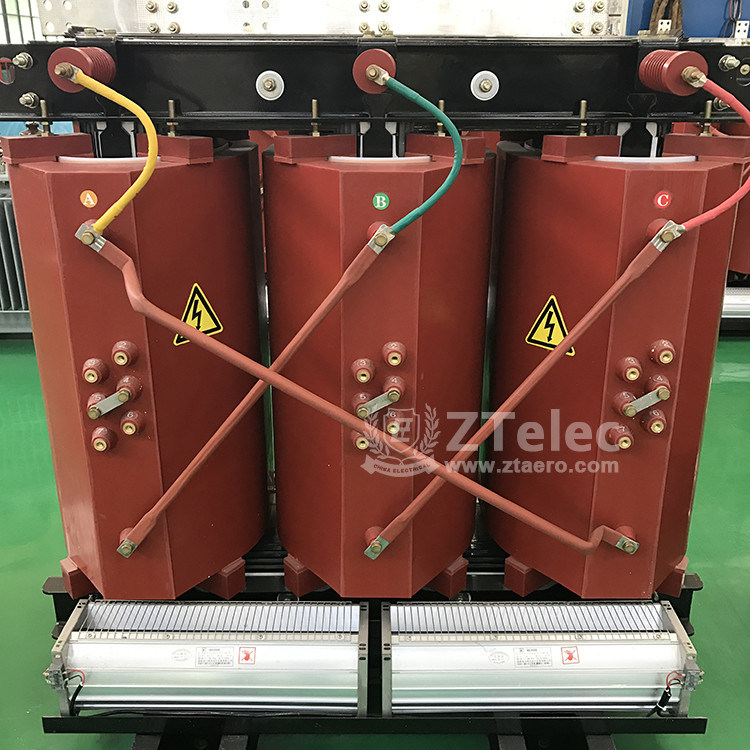

SCB10 3 Phase 415v to 220v Dry Type Step Down Distribution

We can make Cast Dry-Type Transformer , SC(B)10,SC(B)11-30~2500/10 Series of Epoxy Resin Cast Dry-Type Distribution Transformer , SC(B)10-30~2500/35 Series of Epoxy Resin Cast Dry-Type Distribution Transformer , SC(B)10-30~2500/35 Series of Epoxy Resin Cast Dry-Type Distribution Transformer , SC(B)H15-100~2500/10 Series of Amorphous Alloy Resin Casting Dry-type Transformer , SC(B)10-30~2500/20(10) (Achieving voltage change between 20kV and 10kV) Series of Epoxy Resin Cast Dry-type Distribution Transformer , CKSC Series of Dry-Type Iron Core Reactor , S11-M-30~2500/10 Series of Fully Sealed Oil-immersed Distribution Transformer , S13-M·RL-30~1600/10 Series of Three-dimensional Coil Core Oil-immersed Transformer , S(B)H15-M-30~1600/10 Series of Amorphous Metal Distribution Transformer , s(z)11-630~31500/35 Series of On-load Regulation Oil-immersed Transformer , Phase-shifting rectifier transformer...

Structural features:

The series of dry-type transformers is used to directly reduce 35kV power supply to 400V distribution power supply for users and reduce 10kV transmission and transformation links. It significantly reduces operating costs, reduces multi-level substation engineering construction and have significant social benefits. By optimizing the structure of the high-voltage coil, the product improves the distribution of voltage and capacitance between layers, greatly improves the impact resistance of the product against atmospheric overvoltage and also improves the electric field distribution, which further reduces the volume of product.

Working environment:
1.0 - 40 (℃), relative humidity <70%;
2. Altitude: not more than 2500 meters;
3. Avoid being exposed to rain, moisture, heat, heat or direct sunshine. The cooling vents and the surrounding objects should have a distance of not less than 40cm;
4 to prevent work in corrosive liquids, or gas, dust, conductive fibers or metal debris more places;
5 to prevent work in vibration or electromagnetic interference sites;
6. Avoid long-term inverted storage and transport, can not be strong impact.
