S11-630KVA Oil Immersed Transformer 10KV Custom Power Transformer High Efficiency

Product Details:
Place of Origin: China
Model Number: S-11
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200-200000/piece
Packaging Details: wooden case
Delivery Time: 15 DAYS
Payment Terms: LC T/T
Supply Ability: 5000 pieces/year
Contact Now

Detail Information

Name: Power Distribution Transformer Feature: Superior Performance, Product Safety, Reliability, Environmental Protection
Brand: Power Distribution Transformer Standard: CE,ISO,UL,SABS,3C, IEC60076-11 ISO9001 ISO14001 KEMA CE
Model Number:: Oil Immersed Transformer

Product Description

S11-630KVA Oil Immersed Transformer 10KV Custom Power Transformer High Efficiency


The capacity range of 10kV class S11 full seal power transformer is 30kva-2500kva. In 10kV, 50Hz power transmission and distribution system, it can be widely used in high-rise buildings, commercial centers, subways, airports, stations, industrial and mining enterprises, drilling platforms, especially in places with high fire protection requirements such as inflammables and explosives, and in places with poor environment. It can also be used for power and lighting in residential areas, commercial streets and rural areas.


S11 type fully sealed oil immersed transformer is the main type selection product of current distribution equipment, with remarkable energy saving effect. The S11 distribution transformer produced by our company uses 30p series high conductivity oriented silicon steel produced by well-known enterprises, and adopts new insulating materials and processes. The products are resistant to high temperature and impact. The integral mailbox composed of corrugated radiator is produced by phosphating and multi-layer antirust spraying technology, which has good weather resistance.


Long service life, maintenance free operation. The fully sealed transformer insulates the contact of oil fish and air, greatly reduces the aging speed of insulation and improves the service life.

The product is designed with compact structure and low running noise. Due to the use of new materials and new processes, noise reduction, no oil conservator, the height is lower than similar products. No oil change is needed in the normal service life, which improves the safety and reliability of operation in the network.

Corrugated mailbox has small volume and beautiful appearance. The tank of S11 power transformer adopts corrugated heat dissipation. When the oil temperature changes, the elastic expansion and contraction of the corrugated sheet with volume change will adjust the compensation.

No hanging core and oil detection. When the transformer is packaged, the vacuum filter oil process is used to completely remove the moisture in the transformer oil. After sealing, the inner part of the transformer does not contact with the air, effectively preventing the insulation performance degradation caused by oxygen and moisture entering the transformer.

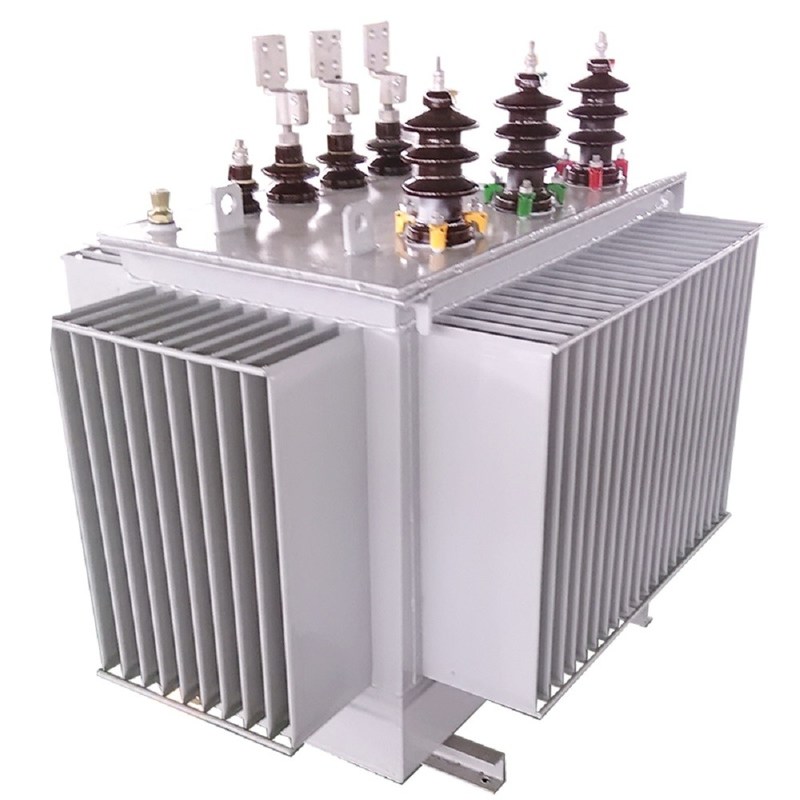

S11-630KVA Oil Immersed Transformer 10KV Custom Power Transformer High Efficiency 0

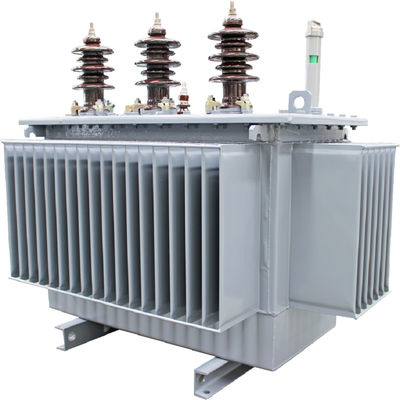

S11-630KVA Oil Immersed Transformer 10KV Custom Power Transformer High Efficiency 1
