Non Encapsulated Dry Type Power Transformer SCB10 Moisture Proof Low Noise

Product Details:
Place of Origin: China
Brand Name: HENGFENGYOU
Certification: ISO IEC CB COC KEMA SNI SABS CCC
Model Number: SCB10 H class
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 500-30000
Packaging Details: wood pack
Delivery Time: 15 DAYS
Payment Terms: LC T/T
Supply Ability: 5000 pieces/year
Contact Now

Detail Information

Highlight:

cast resin dry type transformer

,

power distribution transformer

Product Description

SCB10/11  Non Encapsulated Dry Type Power Transformer


10kv (10.5/11/6/6.3/6.6)  to 0.4/0.415/0.433kv dry type transformer/Dyn11/Yyn0

General Description:

Application: for power distribution system and large industrial enterprises, etc.

Standards: IEC 60076-11

Parameters: Rated Voltage: 6kV~35kV.
Rated Capacity: 30-20000kVA.

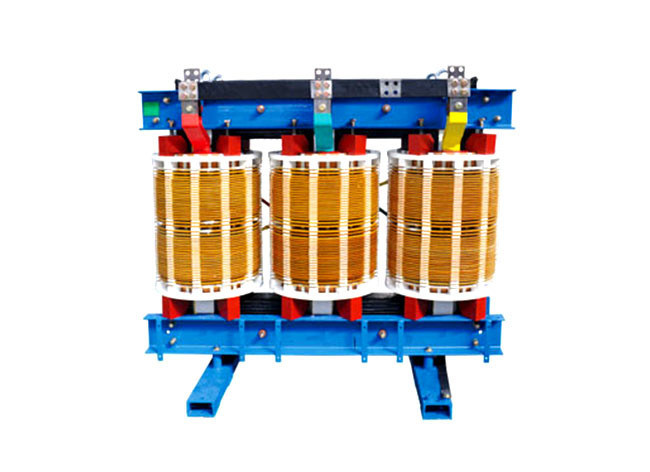

Non Encapsulated Dry Type Power Transformer SCB10 Moisture Proof Low Noise 0

Features:

1.High security and reliability in operation.
2. Economic and efficient to reduce network loss and working cost.
3. Low temperature rise.
4. Low noise.
5. Operation in moist place with high moisture-proof capability.
6. Customized transformers are available on your requirement.



Dry type transformer Technical parameter table
nominal capacity Voltage combination Join group label No-load loss(W) load loss(W) No-load current(%) Short circuit impedance(%)
HV(KV) High voltage range LV(KV)
30 6
6.3
6.6
10
10.5
11
±5% 0.4 Dyn11/
Yyn0
175 670 2.72 4.0
50 245 950 2.38
80 335 1310 2.21
100 360 1500 2.04
125 425 1755 1.86
160 495 2020 1.87
200 565 2400 1.70
250 650 2620 1.70
315 795 3300 1.53
400 885 3790 1.53
500 1050 4640 1.53
630 1215 5585 1.36
630 1170 5665 1.36 6.0
800 1370 6610 1.36
1000 1600 7720 1.19
1250 1885 9210 1.19
1600 2210 1150 1.19
2000 2990 13730 1.02
2500 3600 16320 1.02


More details:

Non Encapsulated Dry Type Power Transformer SCB10 Moisture Proof Low Noise 1



Packing & Shipping:

Packaging Details: One unit per wooden case

Delivery Detail: 15-20 work days after the whole payment

Our Service:

1.OEM acceped.

2.Your inquiry related to our product & price will be replied within 24 hours

3.Well-trained & experienced staff are to answer all your inquiries in English

4.Working time: 8:00am ~17:45pm, Monday to Saturday. (UTC+8)

5.Customized solution & perfect after-sale service

6. Payment: we can accept T/T, L/C, Western Union.

7. For large order, engineer can be sent to your country for on-site mainternace instructions.

Non Encapsulated Dry Type Power Transformer SCB10 Moisture Proof Low Noise 2
