Home ProductsMedium Voltage SwitchgearKYN28-12 Medium Voltage Distribution Panel Medium Voltage Metal Clad Switchgear
KYN28-12 Medium Voltage Distribution Panel Medium Voltage Metal Clad Switchgear supplier
KYN28-12 Medium Voltage Distribution Panel Medium Voltage Metal Clad Switchgear supplier KYN28-12 Medium Voltage Distribution Panel Medium Voltage Metal Clad Switchgear supplier KYN28-12 Medium Voltage Distribution Panel Medium Voltage Metal Clad Switchgear supplier KYN28-12 Medium Voltage Distribution Panel Medium Voltage Metal Clad Switchgear supplier

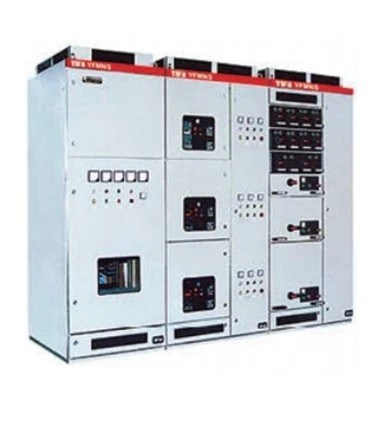

KYN28-12 Medium Voltage Distribution Panel Medium Voltage Metal Clad Switchgear

Product Details:
Place of Origin: China
Brand Name: HENGFENGYOU
Certification: ISO IEC CB COC KEMA SNI SABS CCC
Model Number: SCB-26
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200-20000/piece
Packaging Details: wooden case
Delivery Time: 30 days
Payment Terms: LC T/T
Supply Ability: 5000 piece/year
Contact Now

Detail Information
Product Name: Box Type Fixed Metal Closed Switchgear / High Voltage Switchgear, Substation, Outdoor Prefabricated Compact 11kv Substation, Switchgear Outdoor Pre Installed Type Transformer Substation, Waterproof Outdoor Power Cable Distribution Box Type: KYN28-12
Color: Customer Ordered Red, Gray, And So On Protection Level: IP4X
Material: PC+Metal, Aluminum Alloy, ABS/PC, Bakelite, Pc
High Light:

mv switchgear panel

,

medium voltage cabinet

Product Description



For monitoring temperature, insulation and mechanism of medium voltage switchgear, we developed an on-line monitoring system.

  1. Ambient air temperature: upper limit +40°C lower limit general area -10°C;
  2. Height: 1000 m;
  3. Humidity: relative humidity: daily average is no more than 95%, monthly average is no more than 90%; Water vapor pressure: daily average is not greater than 2.2KPa, monthly average is not greater than 1.8KPa; Condensation may occur when the temperature plummets, accompanied by contamination. This product is suitable for the following two more severe than normal environmental conditions:
    • a. Infrequent condensation (no more than twice a month on average) with mild contamination;
    • b. Generally there is no condensation (no more than twice a year on average) with more serious contamination;
  4. No fire, explosion hazard, or gases of sufficient severity to corrode metal and break insulation;
  5. There is no place for violent vibration, jolting and vertical inclination not exceeding 80 degrees.
    • a. Allow storage and transportation at -30°C.
    • b. If the altitude is more than 1000m, it should be handled in accordance with JB/2102 "technical requirements for high-voltage appliances in the altitude area". When the altitude is less than 2000m, the low-voltage auxiliary equipment does not need to take any measures.
  6. If the above normal conditions of use are exceeded, the user may negotiate with the company.

Technical Parameters

Item Unit Data
Rated Voltage kV 3.6/7.2/12
Rated Frequency Hz 50
Rated Current of Circuit Breaker A 630/1250/1600/2000/2500/3150
Rated Voltage of Switchgear A 630/1250/1600/2000/2500/3150
Rated Short-time Withstand Current (4s) kA 16/20/25/31.5/40/50
Rated Peak Withstand Current (Peak Value) kA 40/50/63/80/100/125
Rated Short-circuit Breaking Current kA 16/20/25/31.5/40/50
Rated Short- circuit Closing Current kA 40/50/63/80/100/125
1min Power Frequency Withstands Voltage kV 24/ 32/ 42
Lightning Withstands Voltage / Rated Insulation Leve kV 40/ 60/ 75
Protection Grade Shell is IP4X/ Shell is IP2X when compartment and circuit breaker doors are open
