Dry type transformer

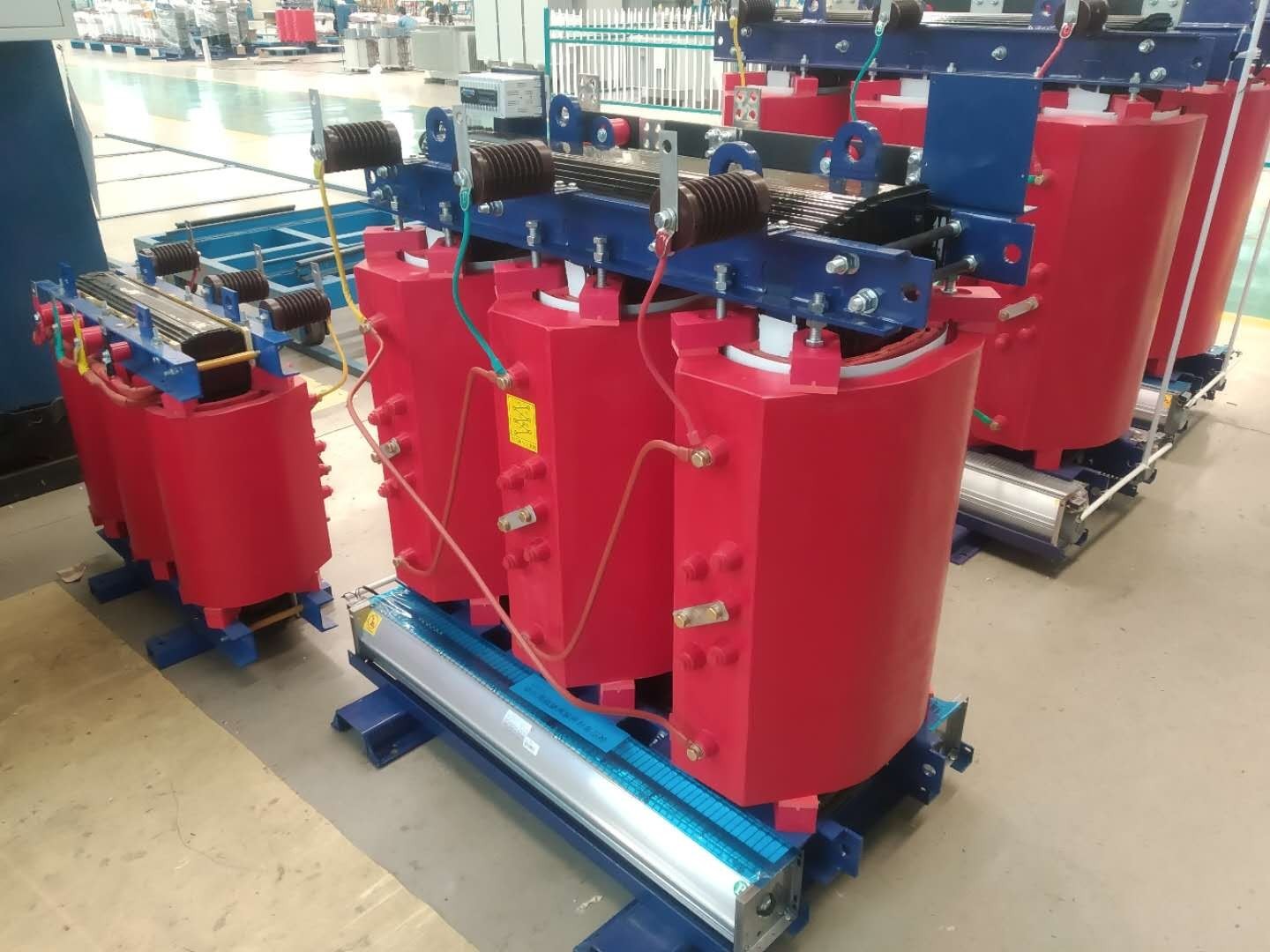

High quality 10-30 kv 630-5000KVA  dry type transformer 0

SCB Dry Type power transformer

The reel core fully sealed distribution transformer is a new generation of low noise and low loss transformer developed in recent years. Its iron core has no joint, greatly reduces the no-load loss and no-load current, reduces the no-load current by 60%~80%, the high and low coils are continuously coiled on the core column, the winding is tight, the concentricity is good, and the product is enhanced more. Anti-theft performance. The noise decreased by more than 10 decibels. The temperature rise is low 16-20K. Because of the continuous winding of iron core (cross section is pure circle), the orientation loss of silicon steel sheet is fully utilized, and the no-load loss is reduced by 20%~30%.


The low voltage winding with capacity in the 630~2500kVA enclosure is made of cylinder or spiral structure with high mechanical strength and balanced ampere distribution. The product has good short circuit resistance.

The positioning structure is added to the body so that it does not produce displacement during the transportation process, and all fasteners are equipped with fastener nuts to ensure that the fasteners are not loose during the long run of the product and meet the requirements of the non core lifting.

The product surface is painted, primed and topcoat after degreasing, rust removing and phosphating. It can meet the special requirements of metallurgy, petrochemical system and wet dirty area.This series of products has beautiful appearance, small size, and can reduce the installation area. It is an ideal free maintenance quality product.


Functions & Features

1.Safe, fire-retardant, pollution-free, can be installed directly in the load center.
2.Maintenance-free, easy to install and integrated operation cost is low.
3.It has good moisture-proof performance and can operate normally under 100% humidity.
4.Low loss, low partial discharge, low noise, cooling ability, forced air cooling conditions can be 150% rated load operation.
5.It is equipped with perfect temperature protection control system to provide reliable guarantee for transformer safe operation.
6.Reliability is high. According to the operation research of the products that have been put into operation, the reliability index of the products has reached the international advanced level.
7.Low voltage winding is made of whole copper foil, together with turn insulation of Class F, on special low voltage foil winding machine. Foil coil can solve the problems of low voltage, short-circuit stress of high current coil winding products is high, ampere-turn imbalance, poor heat dissipation effect, spiral angle of winding, unstable quality of manual welding and so on. At the same time, the winding end of our company is sealed with resin, solidified, moisture-proof and anti-fouling. Lead copper bars are welded automatically by argon arc welding.

8.The transformer adopts BWDK series signal thermometer. The temperature measuring element is embedded in the upper part of the low-voltage coil. It can automatically detect and display the working temperature of the phase coil, and has the functions of over-temperature alarm and trip.


Technical data

















HighvoltageTappingrang eLowvoltage
SC12-30 30










0.4 150 710 2.3 4.0
SC12-50 50 215 1000 2.2
SC12-80 80 295 1380 1.7
SC12-100 100 320 1570 1.7
SC12-125 125 375 1850 1.5
SC(B)12-160 160 430 2130 1.5
SC(B)12-200 200 495 2530 1.3
SC(B)12-250 250 575 2760 1.3
SC(B)12-315 315 705 3470 1.1
SC(B)12--400 400 785 3990 1.1
SC(B)12-500 500 930 4880 1.1
SC(B)12-630 630 1070 5880 0.9
SC(B)12-630 630 1040 5960 0.9
SC(B)12-800 800 1215 6960 0.9
SC(B)12-1000 1000 1415 8130 0.9
SC(B)12-1250 1250 1670 9690 0.9
SC(B)12-1600 1600 1960 11730 0.9
SC(B)12-2000 2000 2440 14450 0.7
SC(B)12-2500 2500 2880 17170 0.7



Product details



Low loss:the product no-load loss is 20% lower than the Sc (B) 11 type product with an  excellent energysaving effect, economic efficient operation and without maintenance.

Low noise:the product noise level is 10-15 db lower than the existing professional standard
 JB/T10088- 2004Sound Level of 6- -220KV Transformer

Low partial discharge:resin mixture adopts foreign leading-edge mixing method and film type
 vacuumdeaerator to evenly mix the mixture and remove the bubble in the bottom part of mixture.

The product  low partial discharge which can be controlled at 5PC. Both high voltage and low voltage coils can bepoured in vacuum pressure so as to enable a encapsulating of resin insulation  and immersion amonglayers and inter-tums. The poured part has a compact solidity staicture with  anti-flaming, anti explosionand environmental protection features. Glass fiber and other raw materials of winding coil have self- extinguishing property and will not  producearc due to short circuit. Resin will not produce harmful gas under high temperature.


High quality 10-30 kv 630-5000KVA  dry type transformer 1

Points to note


1.working condition

* Device types: indoor type

* Normal environment conditions of use: the elevation not more than 1000 m

* Environmental highest temperature + 40℃, minimum-25 ℃

* The special environment conditions of use: elevation of more than 1000 m

* Environmental highest temperature + 40 ℃, minimum-45 ℃. (when you order details)

* Mounting ambicnt: no corrosive gas, no obvious dirt environment


2.applicable  standard

* IEC60076 power transformer

* IEC723 dry power transformer

* GB6450-1986 dry power transformer

* GB/R1094-1996 power transformer

* GB4208-1993 outer shell protect grade(IP code)


High quality 10-30 kv 630-5000KVA  dry type transformer 2


Qualification Centre


All products of the company have passed the national type test like CCC, CQC , CTQC and other

national mandatory product certification, and has a perfect quality, occupational health and

environmental management system certification system. Our products have passed ISO9001, 2000

and other international quality system certification.



High quality 10-30 kv 630-5000KVA  dry type transformer 3



SCOPE of application


None of the dry-type transformers we see today are installed in a separate, tightly enclosed room, as in

the oil-immersed type, but only in a relatively dry and clean room. In addition to this, it is also very convenient

to transport or carry, no matter what kind of transport vehicles, trains, cars or other non-motor vehicles can be,

but it is best to keep the car dry, clean and the product itself in good packaging. Practice has proved that really

good products will always be more and more marketable. As dry-type transformers have very good fire-proof

performance and are easy to install and maintain, they are also used more and more widely Especially in the

modern commercial downtown, residential areas, hospitals, airports, stations, subways, theaters, schools,

public places and other places with high requirements on fire protection.



High quality 10-30 kv 630-5000KVA  dry type transformer 4


High quality 10-30 kv 630-5000KVA  dry type transformer 5
