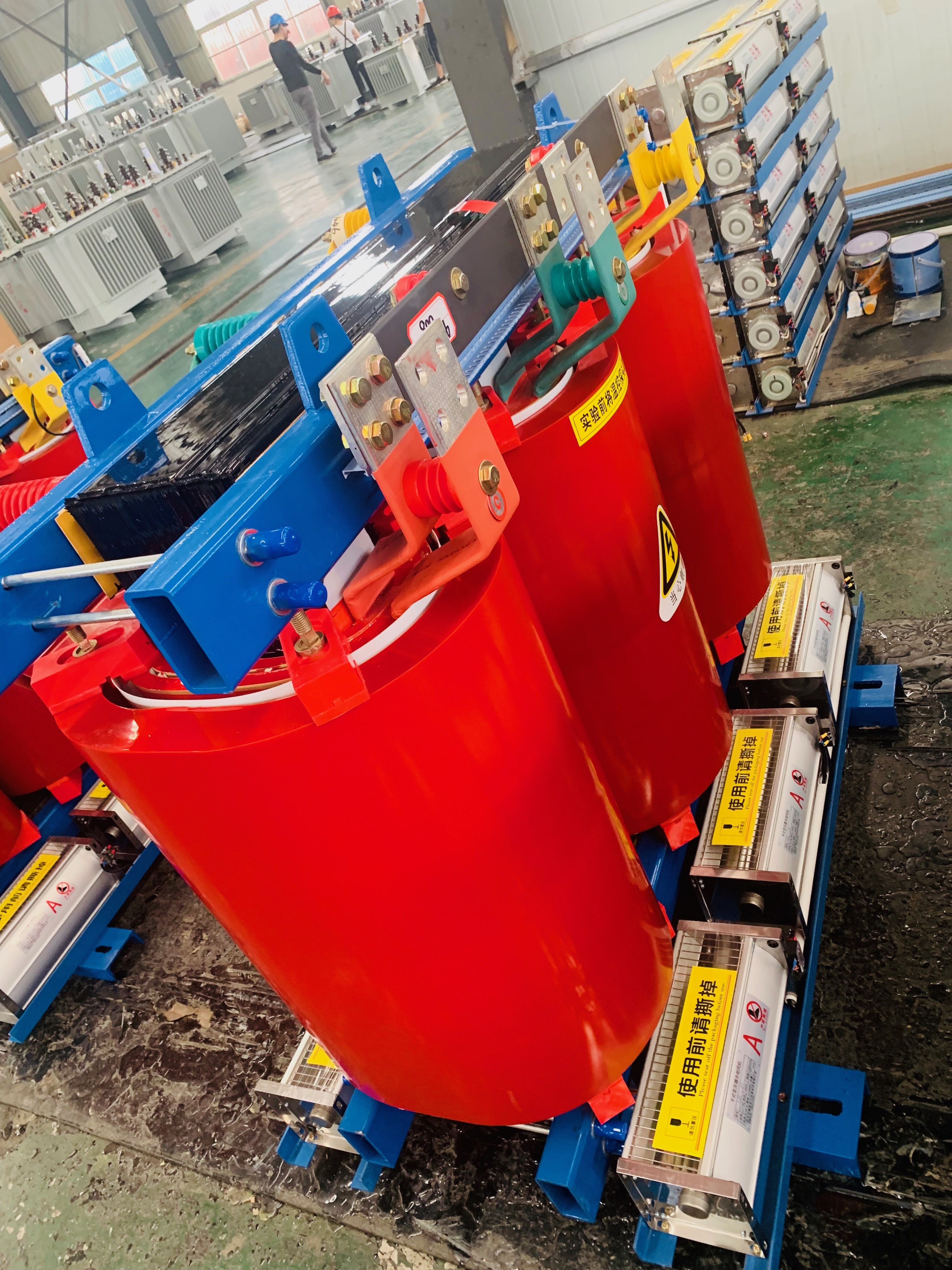

Dry Power Amorphous Alloy Transformer 3 Phase SCBH15 30 - 2500KVA 11kv

Product Description

SCBH15 30- 2500KVA 11kv Dry Power Amorphous Alloy / Cast Resin Copper Explosionproof Electrical Transformer 3 Phase

Company introduction

Qingdao Hengfengyou can produce a variety of epoxy resin casting transformers with a voltage rating of 35kV or less and a capacity of 3150kVA or less. The variety includes SC10, SCB10 series and SC11, SCB11 series. The product is widely used in power transmission and transformation systems, such as hotels, restaurants, airports, high-rise buildings, commercial centers, residential quarters and other important places, as well as subway, smelting power plants and other harsh environments.

Product introduction

SCBH15 series dry-type amorphous alloy transformer is an maintenance-free advanced energy-saving transformer, with features of moisture-proof, fire-proof, explosion-proof, small partial discharge and great heat dissipation.

Serive condition:

1. The maximum ambient air temperature shall not exceed 40 ℃, and the minimum not lower than - 25 ℃;

2. The altitude shall not exceed 1000m. If special customized transformers and low-voltage components are applied, the altitude can reach 4000m;

3. The vertical inclination shall not be higher than 5 °, and no violent vibration and impact;

4. The air humidity shall not be more than 90% (+ 25 ℃);

5. working in places where there is no gas and conductive dust that will seriously affect the insulation of transformer, no explosion hazard and no corrosion of electrical components;

6. Outdoor wind speed shall not exceed 35m / s.

7. If beyond the above normal use environment conditions, special customized product is also available.

Structural features

1. Low energy consumption:The adoption of isotropic soft magnetic material generates low magnetization power, high electrical resistivity and low eddy current consumption. The no-load loss and current of the core made of amorphous alloy are very low, only 1 / 3 of that of silicon steel sheet.

2. Strong corrosion resistance: the amorphous alloy core is fully wrapped by resin and high temperature resistant silica gel,n which effectively prevent corrosion and falling off of amorphous alloy fragments, and also provide better protection for the core and coil.

3. Low noise. Improvement of the structure of iron core and coil and adoption of special noise -reduction materials greatly reducing the operation noise.

4. Strong short-circuit resistance. This product adopts three-phase five-column structure, and the iron core is protected by frame structure. Featured by low temperature-rise and strong heat dissipation, this product can work by 150% rated load under air cooling condition. Perfect temperature control protection system is applied to provide reliable guarantee for safe operation of transformer.

Note: due to the constantly updated products, shape size and product weight in the table will have some changes, please refer to provide the appearance size chart when ordering.


·Order instructions:

1. The customer needs provide main parameters of the transformer (input and output voltage, capacity, loss, etc.)

2. Other customer requirements
