Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | HENGFENGYOU |
Certification: | ISO IEC CB COC KEMA SNI SABS CCC |
Model Number: | 330kv |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 |
Price: | 200-200000/piece |
Packaging Details: | wooden case |
Delivery Time: | 15 DAYS |
Payment Terms: | LC T/T |
Supply Ability: | 5000 pieces/year |
Detail Information |
|||
Phase: | Three | Frequency: | 50hz |
---|---|---|---|
Rated Voltage: | 330kv | Type: | Oil |
Rated Capacity: | 90mva~360mva | Output Voltage: | 10.5kv~35.5kv |
Usage: | Power | Vector Group: | YNa0d11 |
Highlight: | three phase oil immersed transformer,oil immersed distribution transformer |
Product Description

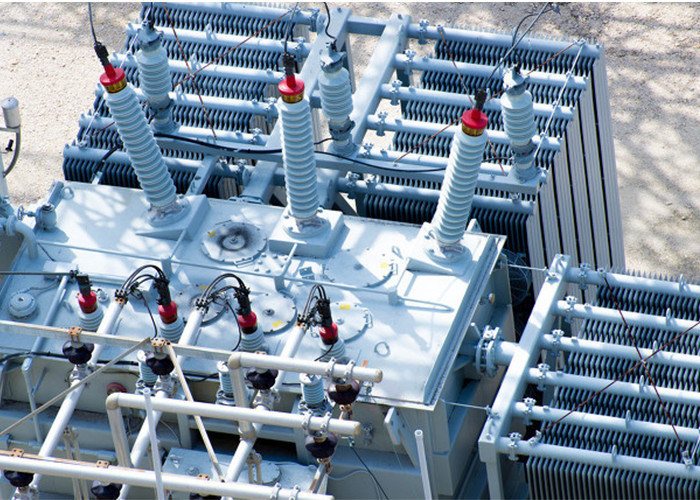

110kV Three-Phase Triplex Windings, No-Load Voltage Regulation, Power Transformer
Product Introduction
330kV power transformers produced by Daelim comply with standard IEC 60076 and requirements
of three phase immersed power transformer”. The core is made of superior grain-oriented cold- rolled
silicon steel sheets and all inclined lapped joints without drilled holes while the coils are made of coppe
r free of Oxygen with beautiful appearance and safe running. They are widely applied to power
transmission & distribution of urban & rual network. These transformers are widely applied to eletrolysis
, transmission, traction, DC transmission and electrostatic precipitation fields. These transformers are
certified by KEMA, CESI, V-check, CTQC, ISO9001 & 14001 and CE,. Daelim is a worldwide partner for
all power applications and industrial companies-Accordingly, the examples of our work are Global:
Whether in South America, Asia or Europe, Whether in the desert or in specially demanding Applications.
Thousands of plants run efficiently and reliably with our technology.
330KVMainTechnicalParametersforthree-phasetwowindingon-loadpowertransformer | ||||||||||||
Rated Power (kva) |
High Voltage (kv) |
H.V.Tap range |
Low Voltage (k) |
Connection symbol |
Short Circuit Impendence (%) |
No-loadloss(KW) | On-loadloss(KW) | Noload current (%) |
||||
S9 | S10 | S11 | S9 | S10 | S11 | |||||||
31500 | 330220 242 |
+8x1.25% +8x1.5% |
6.3,6.6 10.5,11 20,34.5 35,37 38.5,66 69 |
YNd11 | 12~14 | 38 | 34 | 30 | 135 | 128 | 128 | 0.7 |
40000 | 45 | 41 | 36 | 157 | 149 | 149 | 0.63 | |||||
50000 | 54 | 49 | 43 | 189 | 180 | 180 | 0.56 | |||||
63000 | 63 | 57 | 50 | 220 | 209 | 209 | 0.56 | |||||
90000 | 80 | 72 | 64 | 288 | 274 | 274 | 0.49 | |||||
120000 | 99 | 89 | 79 | 346 | 329 | 329 | 0.49 | |||||
150000 | 116 | 104 | 93 | 405 | 385 | 385 | 0.42 | |||||
180000 | 135 | 122 | 108 | 468 | 445 | 445 | 0.42 |
Main functions and features
1.General
330kV low-loss series transformer is our independently developed new generation of
transformers on the basis of absorption of domestic and foreign advanced technology,
which features low local discharge, low loss, low noise, high reliability, strong protection
against abrupt short circuit. Its excellent performance has been recognized by wide
users and highly appraised by experts. The full-sealed suspending-cover free products
sell well nationwide.Amount of local discharge: The apparent discharge amount under
1.5 times of rated voltage is less than 80pC.
Noise : Products of 63MVA and below is lower than 85dB(AN)
Power loss: No-load loss is 30% lower than that of IEC standard.
Reliability: All in-service products have no damages or oil leakage occurred
Short circuit withstanding: Model SFZ11-50000/132 smoothly passed the short-circuit
withstanding test of the national transformer quality supervision and inspection center
and also passed Holland“KEMA” quality Control systom.
2.Coil
The high-voltage coil adopts an interleaved-continuous structure to improve the voltage
characteristics under impact voltage and make voltage evenly distributed. All stays and
pads are chamfered to keep highly reliable insulation. In the transformer winding there
is a zigzag oil guide structure so as to fully cool all areas inside the winding, lower the
temperature rise of the winding and the hot point of the winding and prolong the service
life of insulation. The HV and MV regulation system are independently provided with
voltage-regulating winding to balance the ampere turn of each winding, effectively lower
the axial electrodynamic force generated at short-circuit of transformer and improve
abrupt short-circuit withstanding capacity.
3.Core
The core is made of high-permeable grain-orientated top quality cold-rolled silicon
sheet and the material is cut with advanced Germany GmbH automatic shear line with
the cut burrs controlled within 0.02mm. The silicon sheet fabrication adopts “no-upper
yoke-lapped” technology and all lapped joints of the silicon sheet are 45° full-miters.
The laminated core sheets are integrally pressed and adhered with epoxy resin to
make the three-leg two-yoke core a strong and flat integral one with
Company profile
Qingdao Hengfengyou Electrical Engineering Co. , Ltd. is one of the large-scale electric complete
sets of manufacturers in China, specializing in oil-immersed transformers, dry-type transformers,
high-voltage Cabinets, low-voltage cabinets and substation manufacturing specialized electrical
enterprises. The company is located in the beautiful coastal city of china-qingdao. The company
has a registered capital of 10 million yuan, 20 senior technical personnel, more than 500 employees,
and a sound sales and service system, annual output value of US $1 billion, the products sell well at
home and abroad.
