Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HENGFENGYOU |
| Certification: | ISO IEC CB COC KEMA SNI SABS CCC |
| Model Number: | XGN, KYN |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 |
| Price: | 200-20000/piece |
| Packaging Details: | wooden case |
| Delivery Time: | 30 days |
| Payment Terms: | LC T/T |
| Supply Ability: | 5000 piece/year |
|
Detail Information |
|||
| Model Number: | XGN,KYN | Type: | Metal Clad, Box Type Fixed Withdrawable Switchgear |
|---|---|---|---|
| Rated Frequency: | AC 50Hz (60Hz) | Rated Current(A): | 630, 1250, 1600, 2500, 3510, 4000 |
| Customized: | OEM/ODM Order Acceptable | Application: | Power Transmission Or Distribution |
| Product Name: | Electrical Kyn28 12 Switchgear 11kv | Rated Voltage: | 3KV, 7.2KV, 12KV Optional |
| Comply Standards: | DL/T404, IEC298,GB3906 | ||
| High Light: | mv switchgear panel,medium voltage cabinet |
||
Product Description

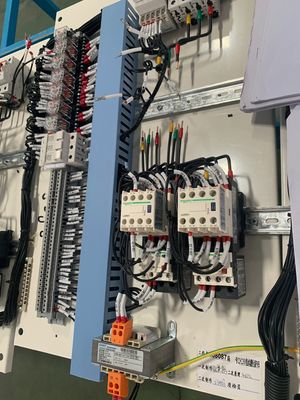

High medium voltage electric switch gear control panel
1: XGN2-12 is mainly used for power reception and distribution of 3-6KV-12KV 3 phase AC 50HZ indoor electric system
Specially suitable for working conditions where frequent operations
2: the production is strictly designed according to I standard,also suitable for frequency Shizuku and dirty working conditions.
3: Successfully widely used by Three Georges project, national engineering designing institute, mining company, cement mill, stell mill,sugar factory,wood industry, chemical industry, city planning, and other place with big power motor and high electric consume place.
4: KYN28-12 removable AC metal-clad switchgear (short for panel as below) is a new product. It will be a substitute for old fashioned metal-enclosed switchgear, such as KYN-12, JYN-12, GFC-12, etc. The panel applies to 3.6~12kV 3 phase AC 50Hz network for receiving and distributing power energy and also for control, monitor and protection. It accords with standard of IEC62271-200, IEC60694, GB3906.
Working condition:
relative humidty: daily average value < 95%, monthly average value <90%
No explosion, serious pollution, chemica erosion, excessive vibration
earthquick intensity no over 8 degree
Note: Due to continuous product improvement, the dimensions provided in this sample are for reference only. If necessary, our company can design and produce according to user requirements. Please contact the company in time.
| Main technical parameters | ||
| Main circuit rated voltage(V) | .......................... | Ac 400 (600) |
| Rated voltage of auxiliary circuit (V) | .......................... | Ac 220/380 (400) dc 110/220 |
| Rated frequency (Hz) | .......................... | 50(60) |
| Rated insulation voltage(V) | .......................... | 690(1000) |
| Rated current(A) | The level of bus | ≤6000 |
| Rated short-time bus withstand current (kA/1s) | .......................... | 50,80 |
| Rated peak withstand current of bus (kA/0.1s) | .......................... | 105,176 |
|
Power frequency test voltage (V/1min) |
main circuit | 2500 |
| Auxiliary circuit | 1760 | |
|
bus |
Three-phase four-wire system | A,B,C,PEN |
| Three-phase five-wire system | A,B,C,PE,N | |
| Protection grade | .......................... | IP30 |
4)Main technical parameter
| no | name | unit | data |
| 1 | rated voltage | kv | 3, 6,10 |
| 2 | ratd current | A | 630,1000,1250,1600,2000,2500,3150 |
| 3 | rated frequency | HZ | 50 |
| 4 | rated short circuit drop out current(effective value) | KA | 20.25; 31.5; 40 |
| 5 | rated thermo stable current( peak value) | KA | 20.25; 31.5; 40 |
| 6 | rated dynamic current( peak value) | KA | 40; 80; 100 |
| 7 | rated power frequency withsand voltage(1min) | KV | inter-electrode and earth 42; inter -fractures 48 |
| 8 | ratd thunder impulse withstand voltage | KV | inter-electrode and earth 75; inter -fractures 85 |
| 9 | rated thermo stable time | KV | 4 |
| 10 | degree of protection | IP2X | |
| 11 | externam dimension(WXDXH) | MM | 1100x1200x2650( can design according to demand) |
