1600 kVA Cast Resin 11kV Dry Type Power Transformer

Product Details:
Place of Origin: China
Brand Name: HENGFENGYOU
Certification: ISO IEC CB COC KEMA SNI SABS CCC
Model Number: SCB10
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200-200000/piece
Packaging Details: wooden case
Delivery Time: 15 DAYS
Payment Terms: LC T/T
Supply Ability: 5000 pieces/year
Contact Now

Detail Information

Material: Aluminum Or Copper Usage: Single-phase Transformer, Rectifier Transformer, Combined Transformer, Power Transformer, Distribution Transformer
Capacity: 100.125.160.200.250.315.400.500.630.800.1000 HS Code: 85043190
Product Name: Dry Type Transformer Certificate: CE,ISO,CQC,SABS,3C
High Light:

cast resin dry type transformer

,

dry cast resin transformers

Product Description

Dry type transformer

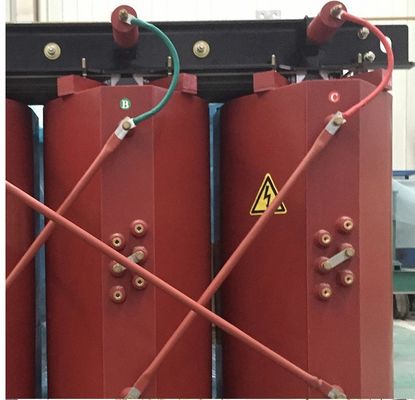

1600 kVA  Cast Resin 11kV Dry Type Power Transformer 0

SCB Dry Type power distribution transformer



Overview & features



SCB epoxy resin pouring dry-type transformer is manufactured in conformity with IEC60726 standards (applicable International Electrotechnical Commission standards), GB6450 standards and GB/T10228 standards (applicable state standards of the People's Republic of China). Frequency: 50Hz. It can be used for electric transformation and distribution of urban power grids. It is primarily applicable for high-rise buildings, commercial centers, airports, offshore drilling platforms, ships, tunnels, large hydropower stations and railway stations


There is protection shell option, IP grade is IP20,IP30,IP40. the material of the shell is stainless steel,aluminum alloy, aluminium-Zinc alloy coated steel. It is easy for operation,installation and light weight.It won't effect ventilation and heat dissipation, the door can be at both high voltage and low voltage side, or as per your request.



Product features


Structure:
Our company specialized in Three phase amorphous alloy dry-type transformer. Inheritance the advatages of cast-resin dry-type transformer. Structure is more reasonable, Performance is more reliable.


Low loss:
the product no-load is 40% lower than the SC (B) 10 type product with an excellen energy saving effect, economic-efficient operation and without maintenance.


Low Noise:
the product noise level is 10-15 db lower than the existing professional standard JB/T10088-2004 Sound Level of 6-220KV Transformer.


Low partial discharge:
resin mixture adopts foreign leading-edge mixing method and film type vacuum deaerator to evenly mix the mixture and remove the bubble in the bottom part of mixture. The product has a low partial discharge which can be controlled at 5PC.
Both high voltage and low voltage coils can be poured in vacuum pressure so as to enable a encapsulating of resin insulation and immersion among layers and inter-turns.
The poured part has a compact solidity structure with anti-faming, anti-explosion and environmental protection features.
Glass fiber and other raw materials of winding coil have self-extinguishing property and will not produce arc due to short circuit. Resin will not produce harmful gas under high temperature.


Great mechanical strength:

resin with fillings can lower the differences of dilataion coefficient, cure shrinkage rate and internal stress as well as increase the hardness of condensate within the poured area. Precast and fashioned reinforcing materials are placed in the seal coat of epoxy resin which is painted on the inside and outside surface of high and low-voltage coil, making the structure as compact as the reinforced concrete so that the mechanical strength is greater than epoxy resin which can bear the electrodynamic action caused by sudden short-circuit without damage.


Application
SC(B) Series DRY EPOXY RESIN DISTRIBUTION POWER TRANSFORMER is widely applied in hotels, high buildings, business centers, residence community, gymnasium, Petrochemical plant, airport, harbor, metro, mine, drillic.



Technical data



Type

Rated

capacity

(KVA)

Connection

groupgrade

Voltagecombination(KV)

Noloadloss

(W)

loadloss(W)

DyYy

No-load

current(%)

Short-circuit

resistance(%)

HighvoltageTappingrang eLowvoltage
SC12-30 30

YynO

.

Dyn11

10

6.3

6

土5%

+2x2.5%

+x2.5%

0.4 150 710 2.3 4.0
SC12-50 50 215 1000 2.2
SC12-80 80 295 1380 1.7
SC12-100 100 320 1570 1.7
SC12-125 125 375 1850 1.5
SC(B)12-160 160 430 2130 1.5
SC(B)12-200 200 495 2530 1.3
SC(B)12-250 250 575 2760 1.3
SC(B)12-315 315 705 3470 1.1
SC(B)12--400 400 785 3990 1.1
SC(B)12-500 500 930 4880 1.1
SC(B)12-630 630 1070 5880 0.9
SC(B)12-630 630 1040 5960 0.9
SC(B)12-800 800 1215 6960 0.9
SC(B)12-1000 1000 1415 8130 0.9
SC(B)12-1250 1250 1670 9690 0.9
SC(B)12-1600 1600 1960 11730 0.9
SC(B)12-2000 2000 2440 14450 0.7
SC(B)12-2500 2500 2880 17170 0.7





Product details





1600 kVA  Cast Resin 11kV Dry Type Power Transformer 1

Points to note



1.working condition

* Device types: indoor type

* Normal environment conditions of use: the elevation not more than 1000 m

* Environmental highest temperature + 40℃, minimum-25 ℃

* The special environment conditions of use: elevation of more than 1000 m

* Environmental highest temperature + 40 ℃, minimum-45 ℃. (when you order details)

* Mounting ambicnt: no corrosive gas, no obvious dirt environment



2.applicable  standard

* IEC60076 power transformer

* IEC723 dry power transformer

* GB6450-1986 dry power transformer

* GB/R1094-1996 power transformer

* GB4208-1993 outer shell protect grade(IP code)



1600 kVA  Cast Resin 11kV Dry Type Power Transformer 2



Qualification Centre



All products of the company have passed the national type test like CCC, CQC , CTQC and other

national mandatory product certification, and has a perfect quality, occupational health and

environmental management system certification system. Our products have passed ISO9001, 2000

and other international quality system certification.





1600 kVA  Cast Resin 11kV Dry Type Power Transformer 3





SCOPE of application



None of the dry-type transformers we see today are installed in a separate, tightly enclosed room, as in

the oil-immersed type, but only in a relatively dry and clean room. In addition to this, it is also very convenient

to transport or carry, no matter what kind of transport vehicles, trains, cars or other non-motor vehicles can be,

but it is best to keep the car dry, clean and the product itself in good packaging. Practice has proved that really

good products will always be more and more marketable. As dry-type transformers have very good fire-proof

performance and are easy to install and maintain, they are also used more and more widely Especially in the

modern commercial downtown, residential areas, hospitals, airports, stations, subways, theaters, schools,

public places and other places with high requirements on fire protection.
