1500 Kva And 22 Kv Oil Immersed Transformer With High Overload Capability

Product Details:
Place of Origin: China
Model Number: S-11
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200-200000/piece
Packaging Details: wooden case
Delivery Time: 15 DAYS
Payment Terms: LC T/T
Supply Ability: 5000 pieces/year
Contact Now

Detail Information

Name: Power Distribution Transformer Feature: Superior Performance, Product Safety, Reliability, Environmental Protection
Brand: Power Distribution Transformer Standard: CE,ISO,UL,SABS,3C, IEC60076-11 ISO9001 ISO14001 KEMA CE
Model Number:: Oil Immersed Transformer
High Light:

oil immersed distribution transformer


oil immersed power transformer

Product Description

1500 Kva And 22 Kv Oil Immersed Transformer With High Overload Capability


1.Product Description

With capacity from 30KVA to 1,600KVA, the three-phase 10kv oil-immersed transformer is made under advanced production technology.

It is designed by corrugated plate instead of oil storage tank, thus oil is placed apart from the outside world. In addition, the coil and iron core are treated by vacuum-drying. All these features aim to get better insulation performance. In return, the transformer does not need to change oil in long term operation. Low maintenance cost, extended service life.

Technical Parameters

# Rated Capacity (KVA) Type Association Label (%) of No-load Current Drop Loss (KW) Load Loss (KW) Short-circuit Impedance (%)
1 30 S11-30/10 Yyn0 2.1 0.1 0.6 4.0
2 50 S11-50/10 2.0 0.13 0.87
3 63 S11-63/10 1.9 0.15 1.04
4 80 S11-80/10 1.8 0.18 1.25
5 100 S11-100/10 1.6 0.2 1.5
6 125 S11-125/10 1.5 0.24 1.8
7 160 S11-160/10 1.4 0.28 2.2
8 200 S11-200/10 1.3 0.34 2.6
9 250 S11-250/10 1.2 0.4 3.05
10 315 S11-315/10 1.1 0.48 3.65
11 400 S11-400/10 1.0 0.57 4.3
12 500 S11-500/10 1.0 0.68 5.1
13 630 S11-630/10 0.9 0.81 6.2 4.5
14 800 S11-800/10 0.8 0.98 7.5
15 1000 S11-1000/10 0.7 1.15 10.3
16 1250 S11-1250/10 0.6 1.36 12
17 1600 S11-1600/10 0.6 1.64 14.5



2.Product pictures

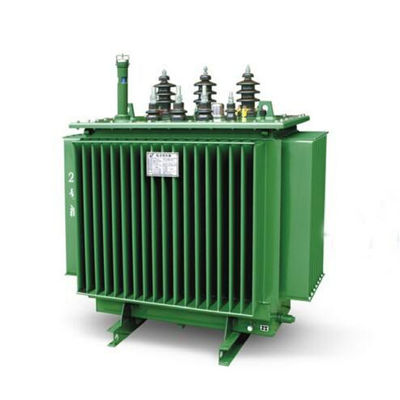

1500 Kva And 22 Kv Oil Immersed Transformer With High Overload Capability 0



Structural Features

  • The low-voltage winding of an oil immersed transformer, except for copper conductor used for small capacity transformer, generally adopts copper foil winding and extraction hydro-cylinder structure; and the high-voltage winding adopts multi-layer barrel structure. These result in evenly distributed ampere-turns, small magnetic flux leakage, highmechanical strength andstrong short-circuit resistance.
  • The iron core and windingare fastened separately. The machine height, low-voltage lead and other fastening parts adopt self-locking locknut and non-suspension structure, which can withstand impact during transportation.
  • The coil and iron core are treated by vacuum-drying, and the transformer oil is filtered and oiled in vacuum to reduce the water content inside of the transformer.
  • The oil tank is made of corrugated plate, which could absorb oil to compensate temperature fluctuation caused by oil volume change. Therefore, this product has no external oil tank, which significantly reducesheight of the transformer.
  • As the corrugated plate replaces the oil storage tank, the transformer oil is isolated from the outside world, effectively preventing entry of oxygen and water and resulting in the decrease of insulation performance.
  • The above five performances enables the oil immersed transformer no need to change oil in normal operation, greatly reducing the maintenance cost , and extending the service life of the transformer.

1500 Kva And 22 Kv Oil Immersed Transformer With High Overload Capability 1


1500 Kva And 22 Kv Oil Immersed Transformer With High Overload Capability 2
