11kv High Voltage Switchgear Solid Insulated Metal Enclosed Vacuum Rmu Ring Main Unit

Product Details:
Place of Origin: China
Model Number: KYN61
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200-20000/piece
Packaging Details: wooden case
Delivery Time: 30 days
Payment Terms: LC T/T
Supply Ability: 5000 piece/year
Contact Now

Detail Information

Model Number: KYN61 Rated Current: 630,1250,1600,20000000A
Rated Peak Withstand Current: 50,63,80,100KA Insulation: 95/185KV
Option Circuit Breakers: ZN85, VD4, HD4, LN2-40.5 Etc. Operational Power Supply: DC:110,220; AC:110,220
Rated Voltage: 40.5KW Rated Short-circuit Current: 20,25,31.5,40KA
Short-time Withstand Current(4s): 20,25,31.5,40KA
High Light:

switchgear control panel


metal clad switchgear

Product Description

KYN 61-40.5 Armoured Middle Metal Enclosed High Voltage Switchgear


1. Applications:

KYN61 series ht switchgear panel 35KV 40.5KV for electricity power distribution applied to power distribution system for 40.5kV with three-phase AC 50Hz single bus or single bus sectional system.Mainly used in power plants, substation, industrial and mining enterprises for power receiving and distribution, also for controlling, protecting and monitoring the circuit. It can be used for frequent operated occasions as well.

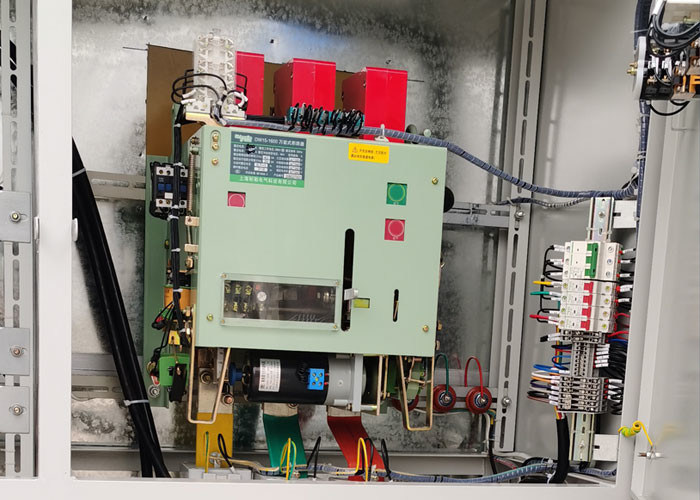

11kv High Voltage Switchgear Solid Insulated Metal Enclosed Vacuum Rmu Ring Main Unit 0

2. Environmental Conditions

· Suitable Altitude: 1000m ~ 4000m

· Suitable Temperature: -40℃ ~ +45℃

· Relative Humidity: Daily mean ≤95%, monthly mean ≤90%

· Gradation of Earthquake Damage: ≤ Level 8


11kv High Voltage Switchgear Solid Insulated Metal Enclosed Vacuum Rmu Ring Main Unit 1

3. Technical Data

No. Item Unit Data
1 Rated voltage KV 40.5
2 Rated current A 6,301,250,160,020,000,000
3 Rated short-circuit current KA 20,25,31.5,40
4 Rated peak withstand current KA 50,63,80,100
5 Short-time withstand current(4s) KA 20,25,31.5,40
6 Insulation: Power frequency/Lightning KV 95/185
7 Protection class   IP4X
8 Optional circuit breakers   ZN85, VD4, HD4, LN2-40.5 etc.
9 Operating mechanism   Spring mechanism; Permanent magnetic actuator
10 Operational power supply V DC:110,220; AC:110,220
11 Overall dimension(Width*Depth*Height) mm 1400(1200)x2800x2600
12 Weight KG 1800

Main Functions:
Protective Function - It will indentify fault current automatically; realize instantaneous current cutoff, time limited current break, regular flow, directional flow, overvoltage, under-voltage, single phase ground protection of small current ground system, and cooling load start and inhibition of open circuit, and other functions.
Measurement Function - Measure three-phase current, three-phase voltage, active power, reactive power, active energy, reactive energy, peak/valley electricity, power factor and frequency, ect.
Controlling Function - It can realize on-site operation and remote control. Meanwhile, achive fault location of circuit, fault isolation automatically, resume power supply for the circuit without fault rapidly by requirement; realize automatic load shedding under low frequency, capacitor automatic cutting, automatic cutting of backup power, and other controlling functions.
Communication Function - It can report fault, operation and controlling information to appointed personnel through wireless public network or special communication network; support various kinds of communication ways and agreement; realize setting parameters modification by handhold PDA. The controller releases the instruction of self-inspection from PDA and feedback the self-inspection information to PDA terminal.
Data Record Function - Record, save and run operation and fault information automatically.
Synchronous Switching On/Off Function - According to the features of load, it searches zero crossing point automatically; adapt itself to the discreteness of switch parameter and impact of environment factors; realize synchronous switching on/off; restrain over voltage of operation and inrush phenomenon effectively, especially suitable for switching capacitor and transformer.
Intelligence Function - It can carry out on-line conprehensive analysis of power network parameters, on-line performance parameter measurement of circuit breaker, and on-line programming; cooperate with the main station pf power distribution automatic system; realize the function of remote control management of switch device, and on-site, remote or hierarchical control type power distribution automation system.
Load Management Function -
Load management terminal cooperates with AVR series intelligent compact solid insulation switch equipment. It is able to realize load management function, solve the electricity fees issue effectively for scattered residents customer, temporary customers, and the customers who fail to pay the fee frequently.


11kv High Voltage Switchgear Solid Insulated Metal Enclosed Vacuum Rmu Ring Main Unit 2
